High Voltage Insulated Ladder With Fiberglass Construction For Utility Workers
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Insulated |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000 PCS/Month |
|
Detail Information |
|||
| Name: | Insulated Ladder | Item No.: | 22248-22259 |
|---|---|---|---|
| Model: | 2-8Ｍ | Product Name: | Insulated Straight Ladder |
| Material: | Light Epoxy Resin | Warranty: | 1 Year |
| Highlight: | High Voltage Insulated Ladder,Fiberglass Construction Insulated Ladder,Utility Workers Insulated Ladder |
||
Product Description
High Voltage Insulated Ladder With Fiberglass Construction For Utility Workers
The Insulated Ladder is an essential safety equipment for electrical utility workers performing live-line maintenance, power distribution repairs, and substation work. Designed specifically for high-voltage environments up to 36kV, this professional-grade ladder provides reliable insulation while ensuring stability and durability in demanding electrical applications.
Construction & Safety Features:
- Rails: High-grade fiberglass with epoxy resin coating (100kV/ft dielectric strength)
- Rungs: Molded fiberglass with textured non-slip surface
- Hardware: Stainless steel brackets and fasteners with corrosion-resistant coating
- Feet: Non-conductive rubber pads with adjustable leveling
- Safety Labels: Bright orange color with voltage rating and warning markings
- Locking Mechanism: Positive-lock system for extension ladders
- Weight Capacity: 300 lbs (136 kg) working load
Technical Specifications:
- Voltage Rating: 10kV, 20kV, 36kV (customizable)
- Length Options: 6ft to 16ft (1.8m to 4.9m)
- Weight: 15-35 lbs (6.8-15.9 kg) depending on size
- Rung Spacing: 12 inches (30.5 cm) OSHA compliant
- Standards Compliance: ANSI A14.5, OSHA 1910.26, IEC 61478
- Operating Temp: -40°F to +140°F (-40°C to +60°C)
Performance Advantages:
✔ Non-conductive materials prevent electrical current flow
✔ Slip-resistant rungs ensure secure footing
✔ Corrosion-resistant for long service life
✔ Lightweight yet sturdy for easy handling
✔ Weatherproof construction for outdoor use
✔ Meets all electrical safety standards for utility work
Professional Applications:
- Live-line maintenance - safe access to energized equipment
- Substation work - transformer and breaker maintenance
- Power line repair - overhead conductor work
- Street light servicing - fixture replacement
- Emergency restoration - storm damage repairs

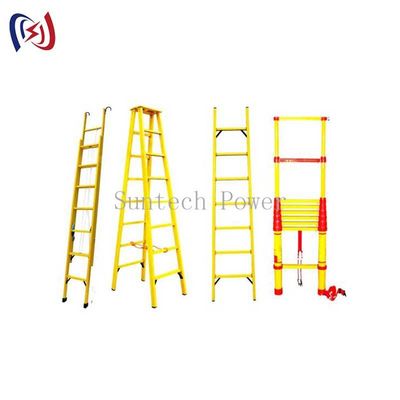

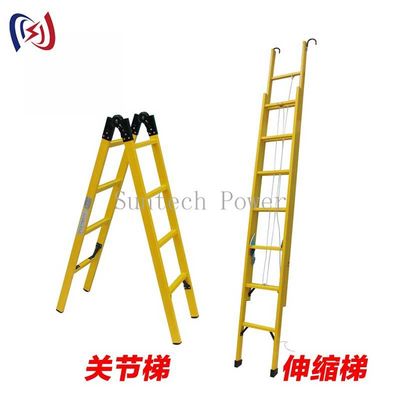

Available Configurations:
- Single section straight ladders (fixed length)
- Extension ladders (adjustable height)
- Platform ladders (with work platform)
- Telescoping ladders (compact storage)
- Custom voltage ratings (up to 72kV)
Why Choose Our Insulated Ladder:
- Manufactured to IEEE 516 standards
- Used by major utility companies
- Annual dielectric testing recommended
- 1-year warranty against material defects
- Field-tested by electrical professionals
| Item number |
Product name |
Model | Material |
| 22248 | Insulated straight ladder |
2,2.5,3,3.5, 4,5,6,7,8m |
Light epoxy resin |
| 22249 | Insulated telescopic ladder | ||
| 22258 | Insulated rise-fall ladder | ||
| 22259 |
Insulated A-shape ladder |
