Heavy Duty Insulated Rope Ladder With Non Conductive Coating For Shock Protection
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 12x300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000 PCS/Month |
|
Detail Information |
|||
| Name: | Insulated Rope Ladder | Item No.: | 22250-22250A |
|---|---|---|---|
| Model: | 12x300 | Side Rope Material: | Nylon Rope Silk Rope |
| Highlight: | Heavy Duty Insulated Rope Ladder,Shock Protection Rope Ladder,Non Conductive Coating Rope Ladder |
||
Product Description

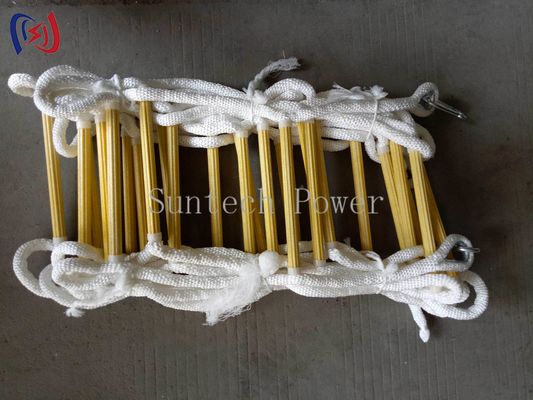

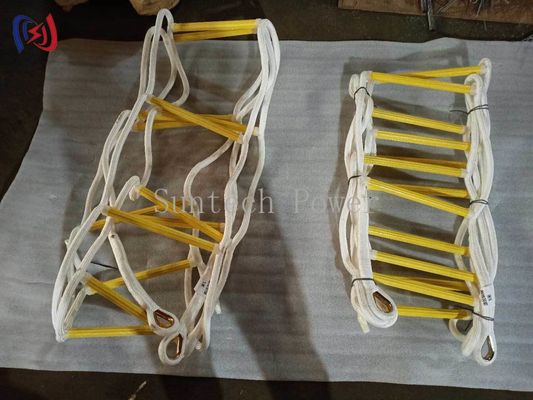

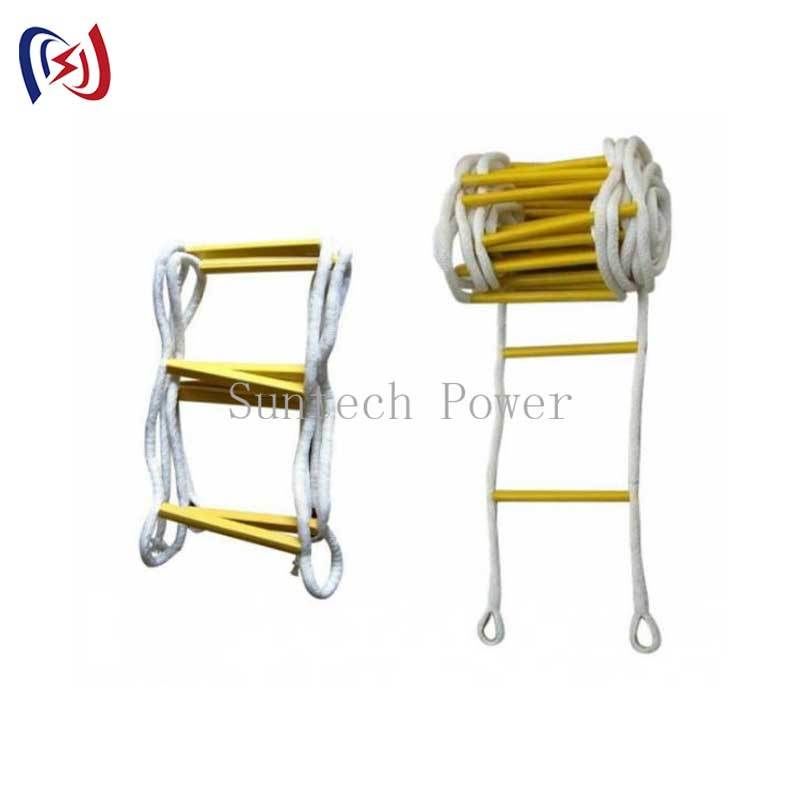

Heavy Duty Insulated Rope Ladder With Non Conductive Coating For Shock Protection
The Insulated Rope Ladder is a critical safety equipment for electrical utility workers performing live-line maintenance, high-voltage repairs, and power line inspections. Designed specifically for energized environments up to 36kV, this professional-grade ladder provides reliable insulation while ensuring flexibility and portability for various electrical applications.
Construction & Safety Features:
- Ropes: High-strength polyester/nylon blend with dielectric coating (100kV/ft rating)
- Rungs: Molded fiberglass or composite material with non-slip texture
- Hardware: Anodized aluminum or stainless steel hooks and connectors
- Insulation: Double-layer protective coating on all conductive components
- Safety Markings: Bright orange color with voltage rating labels
- Length Adjustment: Easy-to-use locking mechanism
- Weight Capacity: 300 lbs (136 kg) working load
Technical Specifications:
- Voltage Rating: 10kV, 20kV, 36kV (customizable)
- Length Options: 10ft to 30ft (3m to 9m)
- Rung Spacing: 12 inches (30.5 cm) OSHA compliant
- Rung Width: 14 inches (35.5 cm) standard
- Standards Compliance: ANSI A14.5, OSHA 1910.26, IEC 61478
- Temperature Range: -40°F to +140°F (-40°C to +60°C)
- Weight: 8-15 lbs (3.6-6.8 kg) depending on length
Performance Advantages:
✔ Non-conductive materials prevent electrical current flow
✔ Slip-resistant rungs ensure secure footing
✔ Lightweight yet sturdy for easy handling
✔ Weather-resistant for outdoor use
✔ Compact storage when not in use
✔ Meets all electrical safety standards for utility work
Professional Applications:
- Live-line maintenance - working on energized conductors
- Transformer servicing - accessing elevated components
- Tower climbing - supplemental safety equipment
- Substation work - equipment inspection and repair
- Emergency restoration - storm damage repairs
Available Configurations:
- Standard rope ladders (fixed length)
- Adjustable length ladders (with extension capability)
- Platform models (with work surface)
- Insulated hooks versions (for direct conductor attachment)
- Custom voltage ratings (up to 72kV)
Why Choose Our Insulated Rope Ladder:
- Manufactured to IEEE 516 standards
- Used by major utility companies
- Annual dielectric testing recommended
- 1-year warranty against material defects
- Field-tested by electrical professionals
Technical Data
| Item number | Model |
Side rope material |
| 22250 | Φ12x300 | Nylon rope |
| 22250A |
Silk rope |
