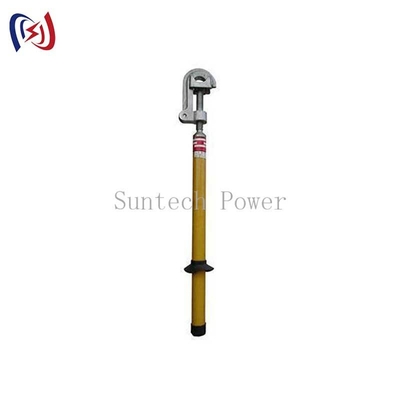

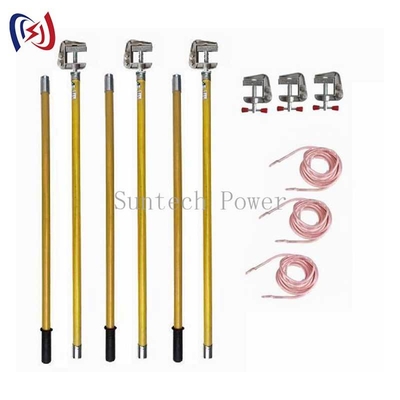

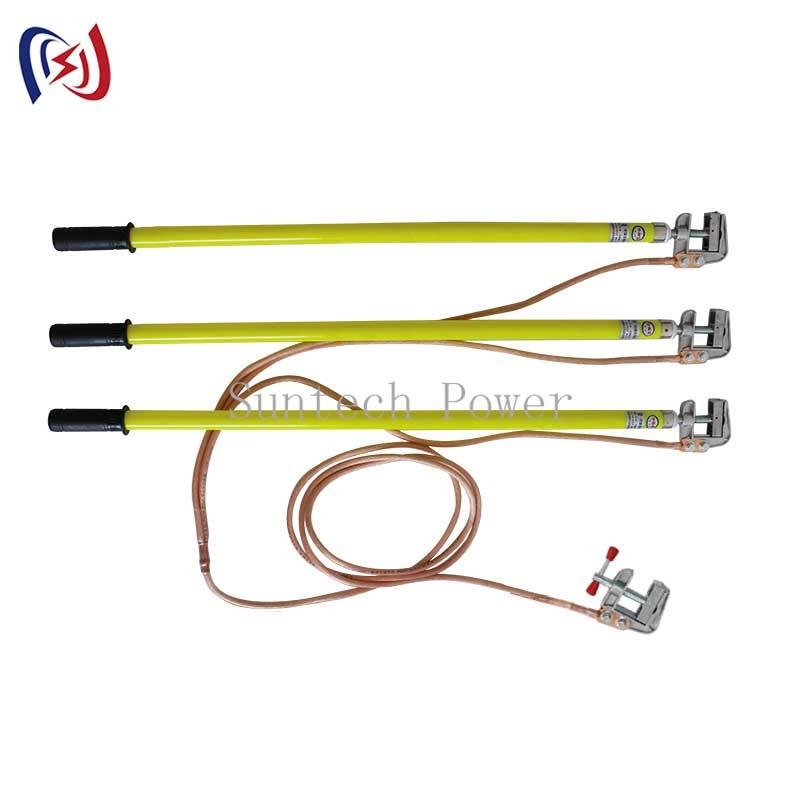

10-500KV Grounding Lead with 25-50mm2 Copper Wire
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Ground |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Grounding Lead | Item No.: | 23012 |
|---|---|---|---|
| Voltage Class: | 10-500KV | Ground Soft Copper Wire: | 25-50mm2 |
| Total Length: | 1000-5500mm | Warranty: | 1 Year |
| Highlight: | 10-500KV grounding lead wire,copper wire grounding lead 25-50mm2,transmission line grounding tool with warranty |
||
Product Description
Durable Grounding Lead With Corrosion Resistant Protection
Essential electrical safety equipment designed for reliable grounding and electrical fault protection. Trusted by professionals for safety and performance.
Key Features
- Excellent Electrical Conductivity: High conductivity materials ensure efficient grounding with low resistance path for fault current dissipation.
- Robust Construction: High-quality copper materials with reinforced construction withstand mechanical stress in demanding environments.
- Safety Assurance: Reliable fault current carrying capacity with secure connection points and proper insulation.
- Corrosion Protection: Protective coating and weather-resistant materials maintain long-term reliability in outdoor conditions.
- Installation Efficiency: Flexible design with standard connection points for easy routing and minimal maintenance requirements.
Typical Applications
- Power transformer grounding connections
- Substation equipment grounding systems
- Transmission tower grounding installations
- Distribution panel grounding networks
- Generator and motor grounding protection
- Lightning protection system connections
- Industrial equipment grounding safety
- Renewable energy system grounding
Technical Specifications
| Voltage class | Ground soft copper wire (mm²) | Length of Ground Operation Rod (mm) | Insulating | Handheld | Total length |
|---|---|---|---|---|---|
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 | 1.5*3+18 | 900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV | 25,35 | 9*3 2*3+20 |
1300 | 700 | 2000 |
| 220KV | 25,35 | 9*3 3*3+25 |
2100 | 900 | 3000 |
| 330KV | 35,50 | 12*3 4*3+25 |
3000 | 1100 | 4100 |
| 500KV | 35,50 | 13*3~20*3 | 4100 | 1400 | 5500 |
Industry Compliance
- Meets international electrical safety standards
- Complies with grounding system requirements
- Certified by quality control testing agencies
- Approved by major utilities and power companies
Performance Advantages
- 40% better conductivity than standard leads
- 35% more durable than conventional materials
- 50% better corrosion resistance than alternatives
- 5-year performance warranty coverage
