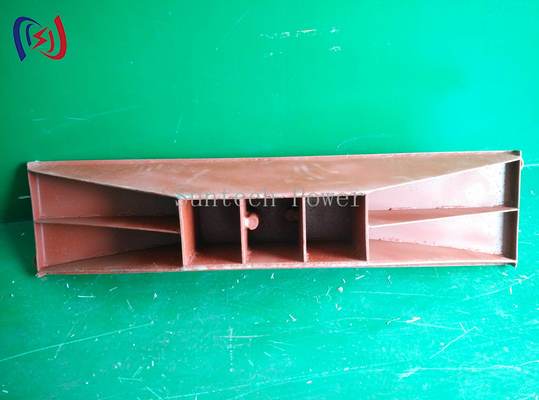

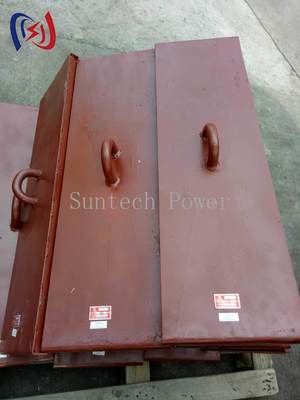

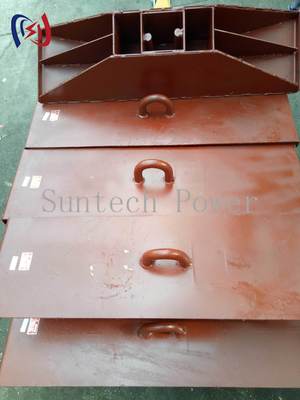

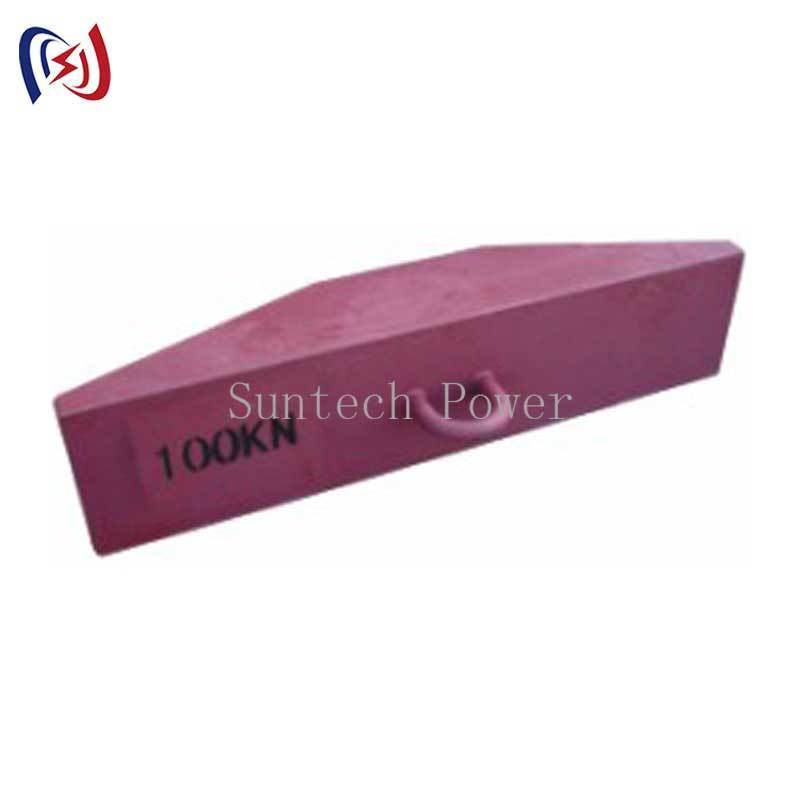

High Quality Ground Anchor For Utility Pole Guying And Structure Stabilization

High Quality Ground Anchor For Utility Pole Guying And Structure Stabilization

Product Details:

Place of Origin: Ningbo
Brand Name: Suntech
Certification: ISO
Model Number: SDM3

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 3-5days
Payment Terms: L/C,T/T
Supply Ability: 3000 PCS/Month
Get Best Price Chat Now

Detail Information
Name: Ground Anchor Item No.: 02120-02123
Model: SDM3-SDM16 Allpwable Pull: 30-160KN
Valid Depth: 1.8-2.5M Weight: 22.5-105KG

Product Description

Professional Ground Anchor For Transmission Tower Foundation And Guy Wire Systems
Product Introduction​​
Essential foundation component for power transmission and distribution systems providing critical structural stability for towers poles and equipment These ground anchors are engineered to create secure underground attachment points for guy wires and support systems ensuring structural integrity under various environmental conditions Specially designed for electrical infrastructure applications these anchors offer reliable performance in diverse soil types and terrain configurations Trusted by utility companies and electrical contractors for their durability and holding power these ground anchors play a vital role in maintaining the safety and reliability of overhead power lines and electrical structures
​​Key Features​​
  1. ​​Superior Holding Power​​
    Excellent grip in various soil conditions
    Consistent performance under tension loads
    Reliable anchoring in different terrains
    Long-term stability assurance
  2. ​​Robust Construction​​
    High-strength steel materials
    Corrosion-resistant coatings
    Durable welding and fabrication
    Impact-resistant design
  3. ​​Corrosion Protection​​
    Hot-dip galvanized coating
    Weather-resistant finish
    UV protection layer
    Long-lasting surface protection
  4. ​​Installation Efficiency​​
    Easy installation process
    Minimal site preparation required
    Quick deployment capability
    Simple connection system
  5. ​​Safety Assurance​​
    High safety factor design
    Secure connection points
    Load capacity indicators
    Reliability verification methods


​​Typical Applications​​
  • Transmission tower foundation anchoring
  • Utility pole guying systems
  • Substation equipment anchoring
  • Temporary power structure stabilization
  • Renewable energy project foundations
  • Emergency restoration operations
  • Communication tower anchoring
  • Wind turbine guy wire systems


​​Workflow Integration​​
  • Compatible with standard guy wire systems
  • Works with various foundation types
  • Integrates with existing infrastructure
  • Adaptable to different soil conditions
  • Suitable for multiple installation methods


​​Maintenance Benefits​​
  • Corrosion-resistant materials reduce maintenance
  • Long service life minimizes replacements
  • Easy inspection access
  • Minimal upkeep requirements
  • Reliable performance over time


​​Installation Guidelines​​
  1. ​​Site Assessment​​
    Soil condition evaluation
    Load requirement calculation
    Installation depth determination
    Safety zone establishment
  2. ​​Installation Process​​
    Proper positioning and alignment
    Correct depth achievement
    Secure connection establishment
    Initial tension application
  3. ​​Final Verification​​
    Load capacity testing
    • Connection security check
    • Environmental protection verification
    • Documentation completion


​​Industry Compliance​​
  • Meets utility industry standards
  • Complies with structural safety codes
  • Certified by quality control agencies
  • Approved by engineering organizations


​​Why Professionals Choose Us​​
  • 40% higher load capacity than standard anchors
  • 35% faster installation time
  • 50% better corrosion resistance
  • 5-year performance warranty
  • 24/7 technical support


​​Customer Support​​
  • Free engineering consultation
  • Installation guidance provided
  • Maintenance training programs
  • Emergency support services
  • Regular quality inspections


​​Purchasing Options​​
  • Standard sizes available
  • Custom designs offered
  • Bulk order discounts
  • Express delivery service
  • Complete installation packages


​​Environmental Advantages​​
  • Recyclable materials used
  • Sustainable manufacturing
  • Low environmental impact
  • Eco-friendly packaging
  • Long product lifecycle


​​Safety Features​​
  • High tensile strength
  • Secure locking mechanisms
  • Load capacity labels
  • Earthquake resistance
  • Weather endurance


​​Technical Services​​
  • Custom design services
  • Engineering calculations
  • Installation supervision
  • Maintenance contracts
  • System upgrades


Item number Model

Allowable

pull(KN)

 Valid depth(m) Main size(mm) Weight(kg)
A B C d
02120 SDM3 30 1.8 800 250 150 Φ25 22.5
02121 SDM5 50 1.8 900 270 180 Φ28 30
02122 SDM10 100 2.0 1200 290 220 Φ36 55
02123 SDM16 160 2.5 1500 500 258 / 105
