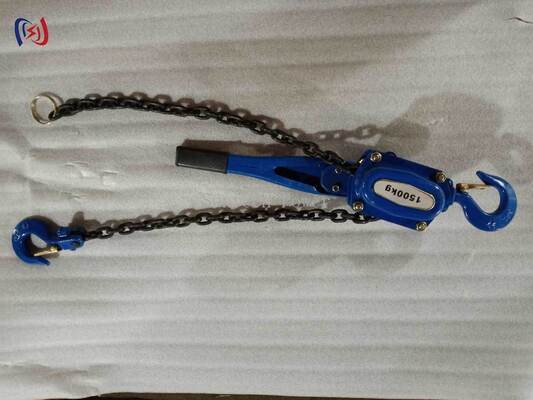

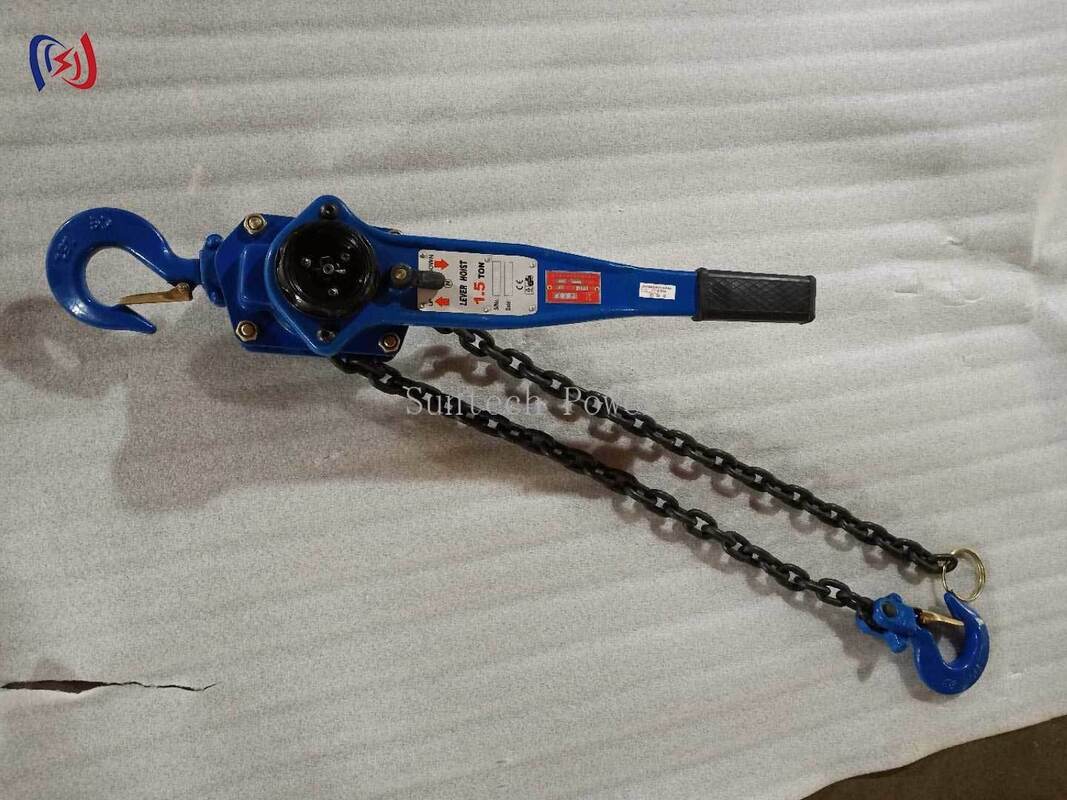

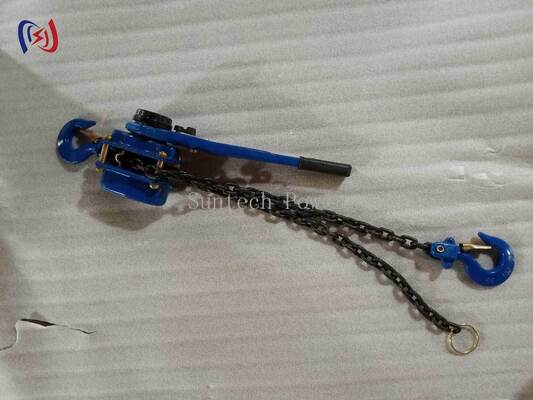

Durable Chain Type Handle Hoist with 5-90KN Rated Load, 1.5m Standard Lifting Height, and 1-3ROW Lifting Chain for Utility Substation Projects
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Chain |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 3000 PCS/Month |
|
Detail Information |
|||
| Name: | Chain Type Handle Hoist | Item No.: | 14201-14245 |
|---|---|---|---|
| Rated Load: | 5-90KN | Minimum Distance Between Hooks: | 260-700mm |
| Standard Lifting Height: | 1.5m | Number Of Lines Of Lifting Chain: | 1-3ROW |
| Weight: | 4.2-47KG | Warranty: | 1 Year |
| Highlight: | 5-90KN Rated Load Chain Type Handle Hoist,1.5m Standard Lifting Height Hand Chain Hoist,1-3ROW Lifting Chain Manual Chain Block |
||
Product Description
Durable Chain Type Handle Hoist for Rigging and Material Handling in Utility Substation Projects
The Chain Type Handle Hoist, commonly known as a hand chain hoist or manual chain block, is an essential and reliable mechanical lifting device that serves as a cornerstone tool in power construction, substation maintenance, and electrical equipment installation.
Technical Specifications
| Item number | 14201 | 14211 | 14215 | 14221 | 14231 | 14241 | 14245 |
|---|---|---|---|---|---|---|---|
| Rated load (KN) | 5 | 7.5 | 10 | 15 | 30 | 60 | 90 |
| Minimum distance between hooks (MM) | 260 | 320 | 380 | 380 | 480 | 620 | 700 |
| Standard Lifting Height (M) | 1.5 | ||||||
| Number of lines of Lifting Chain (row) | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
| Weight (KG) | 4.2 | 7.5 | 11.5 | 11.5 | 21 | 31.5 | 47 |
| Item No. - 3m Length Of Chain | 14202 | 14212 | 14216 | 14222 | 14232 | 14242 | 14246 |
| Item No. - 5m Length Of Chain | 14204 | 14214 | 14218 | 14224 | 14234 | 14244 | 14248 |
| Weight of 1m chain (KG) | 0.52 | 0.8 | 1.4 | 1.4 | 2.2 | 4.4 | 6.6 |
Key Features and Benefits
Powerful Mechanical Advantage Through Gearing
The hoist operates on a proven gear reduction system that multiplies applied force, enabling the lifting of loads many times heavier than what could be moved by hand alone.
Precise and Controlled Load Movement
Offers exceptional operator control with millimeter accuracy for positioning sensitive electrical equipment like circuit breakers and transformers.
Complete Independence from External Power Sources
Operates without electricity, batteries, or compressed air, making it ideal for remote locations and de-energized substations.
Inherent Safety with Automatic Load Holding
Features an automatic braking mechanism that engages when hand chain tension is released, preventing accidental lowering.
Durable Construction for Industrial Demands
Built with high-strength steel housing, hardened alloy steel gears, and wear-resistant load chain for long-term reliability.
Compact and Highly Portable Design
Easy to transport and set up on fixed beams, portable tripods, or gantries for flexible lifting solutions.
Wide Range of Lifting Applications in Electrical Work
Ideal for installing switchgear, positioning transformers, handling cable reels, and performing maintenance on electrical infrastructure.
Cost-Effective and Low-Maintenance Operation
Minimal operating costs with straightforward maintenance involving periodic lubrication and inspection.
Versatility in Mounting and Load Orientation
Can be configured for horizontal pulling applications such as cable tensioning and equipment positioning.
Fundamental Tool for Professional Electricians and Technicians
Empowers crews to perform heavy lifts safely while reducing physical strain and minimizing injury risk.
Investing in a high-quality Chain Type Handle Hoist provides your team with a dependable, versatile, and safe mechanical lifting solution that enhances capability, improves efficiency, and ensures precise handling in electrical construction and maintenance scenarios.
