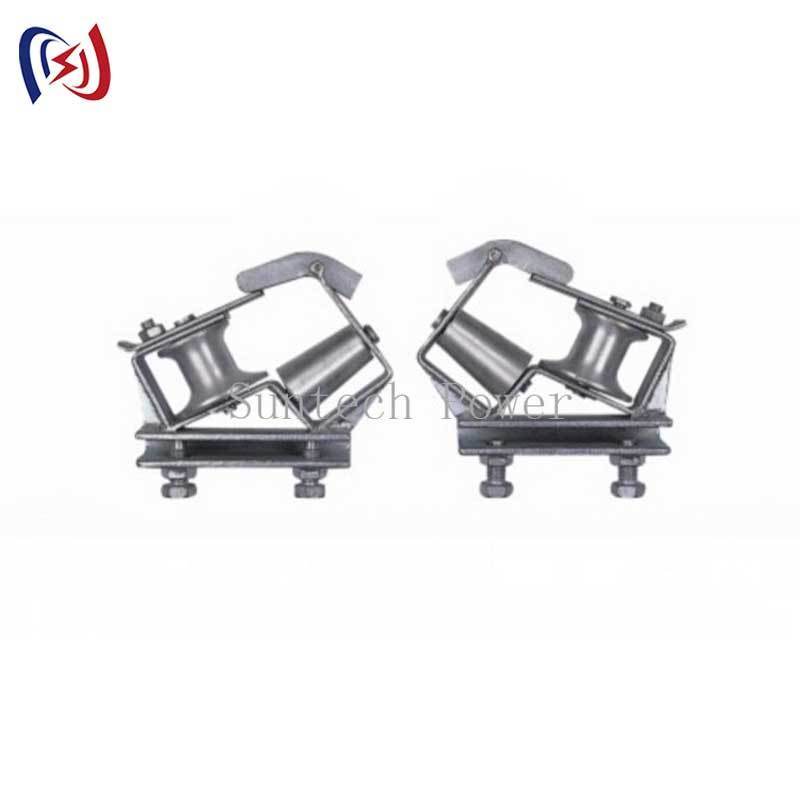

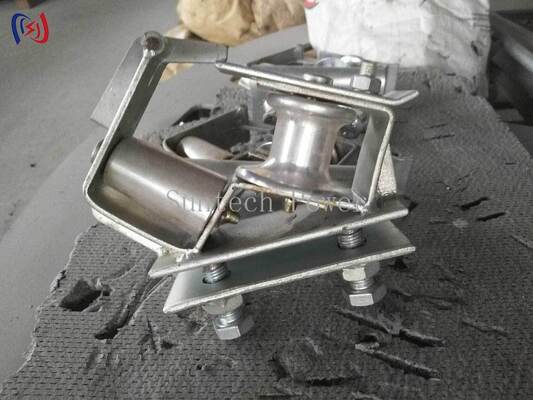

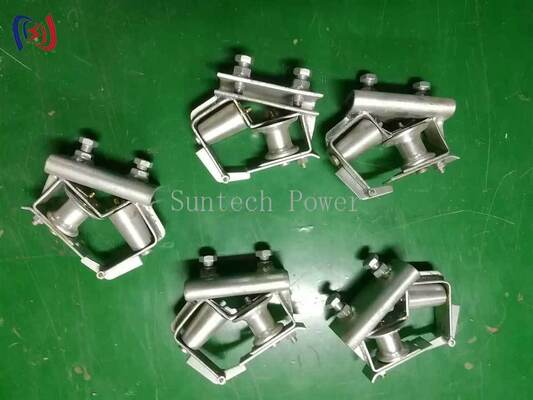

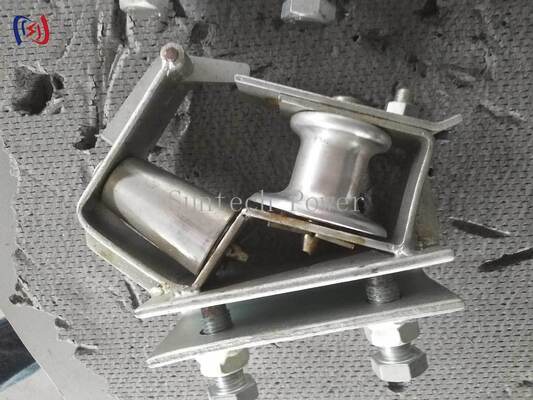

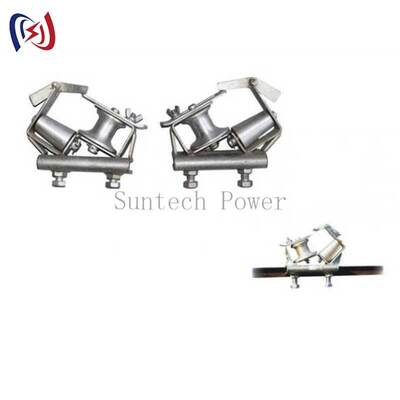

Precision Skyward Corner Stringing Block for Minimizing Conductor Stress with 5KN Rated Load

Precision Skyward Corner Stringing Block for Minimizing Conductor Stress at Sharp Bends

• Enables Controlled 90 Degree and Sharp Angle Turns:​ The primary and defining function of this block is to facilitate a significant directional change in the conductor's path, typically at or near a 90-degree angle. Its unique frame and sheave orientation are designed to accept the incoming conductor and redirect it along the new, perpendicular (or near-perpendicular) path without requiring a stop, re-rigging, or a separate pull point. This capability is critical for following engineered routes that are not straight lines.

• Protects Conductor Integrity at Critical Bend Points:​ Sharp bends are a major source of installation damage. A standard block forces the conductor to bend sharply over a single sheave, creating high point-loads that can crush strands, abrade coatings, or induce micro-fractures. The Skyward Corner block uses a design that often incorporates multiple sheaves or a specially contoured path to create a more gradual, supported bend for the conductor. This distributes the bending stress over a greater length of the cable, preventing localized damage and preserving its mechanical and electrical properties.

• Maintains Consistent Tension Through the Corner:​ One of the biggest challenges in pulling around a corner is maintaining the proper tension profile. If not managed correctly, tension can be lost on the outgoing side, or excessive friction can build up. The engineered design of the corner block helps manage the vector forces involved, allowing the tension from the puller to be effectively transferred through the turn. This ensures the conductor on the far side of the corner maintains the correct tension for proper sag, which is vital for the final line's compliance and safety.

• Eliminates the Need for Complex and Risky Field Solutions:​ Without a proper corner block, crews might resort to dangerous or inefficient methods like using multiple standard blocks in a makeshift configuration, manual guiding, or creating temporary dead-ends. These improvised methods increase setup time, labor costs, and most importantly, safety risks. The Skyward Corner Stringing Block provides a single, integrated, and safe solution designed specifically for the task.

• Essential for Urban and Constrained Right of Way Projects:​ This tool is indispensable in city environments where power lines must route around building corners, through alleys, or follow property lines. It is equally vital in any congested area like industrial complexes or sub-stations, where the cable path is dictated by existing infrastructure. It transforms impossible routes into feasible ones.

• Enhances Overall Job Site Safety:​ By providing a controlled, predictable path for the conductor around a corner, the block greatly reduces the risk of the cable jumping, snagging, or whipping unpredictably. It also keeps personnel at a safer distance from the tensioned conductor during the critical turning maneuver. The use of purpose-built equipment inherently promotes a safer work culture.

• Durable Construction for Demanding Applications:​ Built to withstand the high side-loads and continuous operation of corner pulling, these blocks are constructed from high-strength aluminum alloys or steel. They feature heavy-duty bearings, robust frames, and secure locking mechanisms to ensure reliable performance under the unique stresses of directional changes.

• Improves Project Efficiency and Lowers Costs:​ The ability to make a continuous pull around a corner saves a tremendous amount of time and labor. It eliminates the need to set up a second tensioner, splice the cable, or use a much longer and more complex route. This efficiency directly translates to faster project completion, reduced equipment mobilization, and lower overall project costs.

• A Strategic Tool for Modern Power Line Construction:​ As grid expansion occurs in increasingly developed areas, the ability to navigate complex paths is a key differentiator for contractors. Owning and utilizing Skyward Corner Stringing Blocks demonstrates advanced capability and allows a company to bid on and successfully complete projects that others might find too difficult or costly to attempt.

• Ensures a High Quality, Reliable Installation:​ A conductor that is installed smoothly, without acute bending stress or uncontrolled tension changes, will perform better and last longer. Using the correct tool for corner pulling ensures the installation meets the highest quality standards, resulting in a more reliable power line with fewer long-term maintenance issues.
