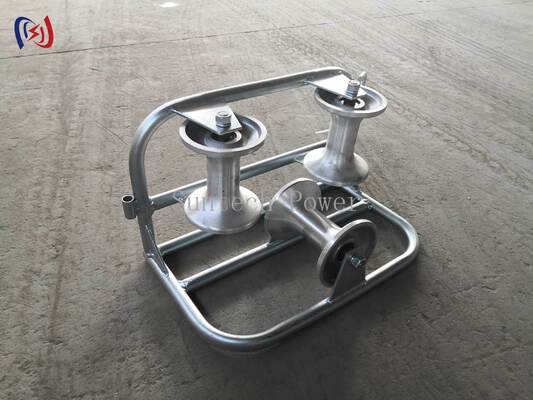

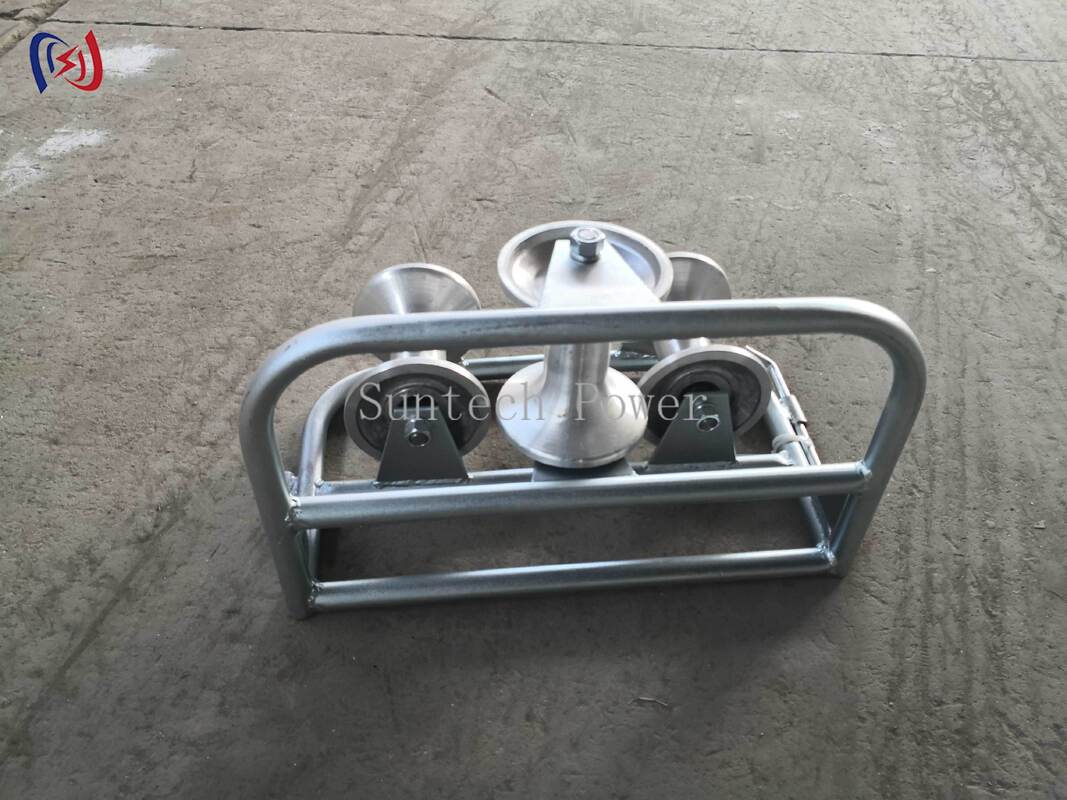

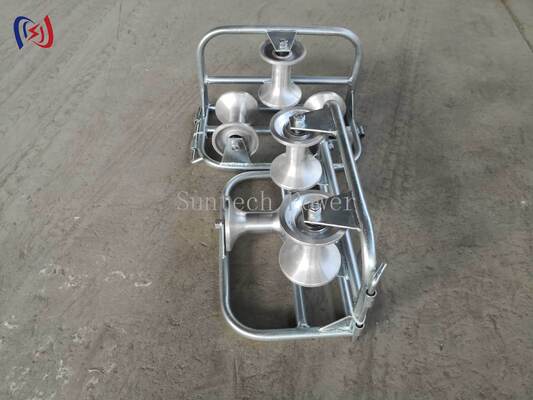

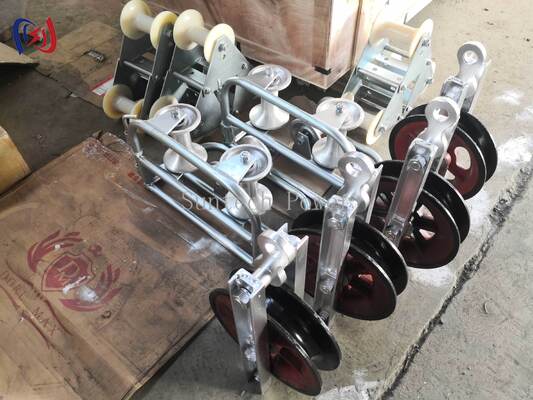

Heavy Duty 10KN Rated Load Corner Ground Roller Tri-Sheave for Smooth Cable Pulling and Corrosion Resistance in Ducts

Heavy Duty Corner Ground Roller Tri Sheave for Smooth Cable Pulling Around Sharp Corners in Ducts

• Critical for Protecting Cables at Sharp Bends:​ The primary and most important function of the tri-sheave is to protect the cable at the most vulnerable point in a pull—the corner. A 90-degree bend in a conduit or trench is a high-risk area for cable damage. The tri-sheave’s three-roller system eliminates the sharp, abrasive corner edge. Instead, the cable makes a smooth, rolling transition guided by the sheaves, which distribute the sidewall pressure evenly and prevent the cable from being pinched, gouged, or deformed against a hard surface.

• Enforces the Cable’s Minimum Bend Radius:​ Every cable has a manufacturer-specified minimum bend radius that must not be exceeded during installation. Exceeding this radius can permanently damage internal conductors or optical fibers. The geometry of the tri-sheave is precisely designed so that the path the cable takes as it rolls through the corner is always equal to or greater than the required minimum bend radius for common cable sizes. This compliance is non-negotiable for maintaining cable performance and warranty.

• Dramatically Reduces Pulling Tension and Friction:​ Pulling a cable around a bare corner creates immense friction and drag, requiring significantly more force from the winch. The three low-friction sheaves of the corner roller turn this high-drag scrape into a smooth, rolling motion. This reduction in friction lowers the required pulling tension, reduces wear on the cable jacket, lessens the strain on pulling equipment, and can even enable longer pulls by keeping overall system tension manageable.

• Prevents Cable Jacket Damage and Abrasion:​ Without protection, a cable’s outer jacket is scraped against the rough concrete or metal edge of a conduit elbow or manhole wall. The smooth, often polymer-composite surfaces of the tri-sheave sheaves provide a gentle, non-abrasive contact point. This preserves the cable jacket’s integrity, which is essential for moisture resistance, electrical insulation, and overall mechanical protection for the life of the cable.

• Essential for Complex Urban and Underground Installations:​ In urban areas, cable routes are rarely straight. They must navigate around existing infrastructure, follow property lines, and turn into buildings or substations. The Corner Ground Roller Tri-Sheave is the key tool that makes these complex, non-linear installations possible without sacrificing cable quality or crew safety. It is routinely used in manholes, at the base of utility poles, and in crowded underground vaults.

• Durable and Corrosion Resistant for Harsh Environments:​ Typically constructed from heavy-duty, UV-stabilized polymers or corrosion-resistant aluminum alloys, these rollers are built to withstand the damp, dirty, and chemically active environments of manholes and trenches. Their durability ensures they perform reliably installation after installation, providing long-term value.

• Improves Worksite Safety and Efficiency:​ Using the correct tool for a corner pull makes the process predictable and controlled. It prevents cables from suddenly jumping or binding, which can be hazardous to crews. It also speeds up the installation process significantly compared to makeshift methods, reducing labor time and allowing projects to stay on schedule.

• A Cost-Saving Investment in Cable Infrastructure:​ A damaged cable section due to a bad corner pull can cost tens of thousands of dollars to locate, excavate, splice, and repair, not including the cost of service outages. The tri-sheave corner roller is a minimal upfront investment that prevents these catastrophic and expensive failures, offering an exceptional return on investment by protecting the much larger value of the cable asset.

• Versatile for Multiple Cable Types:​ This tool is effective for a wide range of cables, including medium and high-voltage power cables, direct burial cables, and fiber optic cables. Its design focuses on the fundamental physics of bending a cylindrical cable, making it universally applicable across utility disciplines.

• A Mark of Professional and Quality-Conscious Installation:​ The use of a dedicated corner roller is a recognized best practice in professional cable installation. It signals to clients, inspectors, and crew members that the installation is being performed with care, using the proper tools to ensure a high-quality, reliable outcome that will require minimal maintenance over its decades of service.
