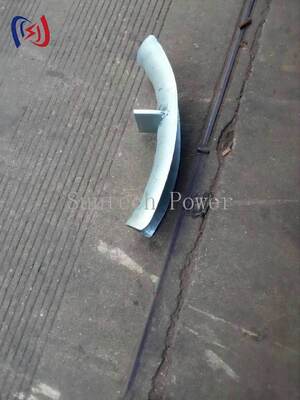

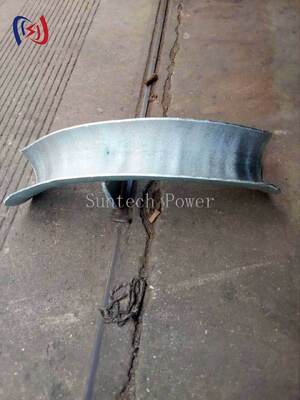

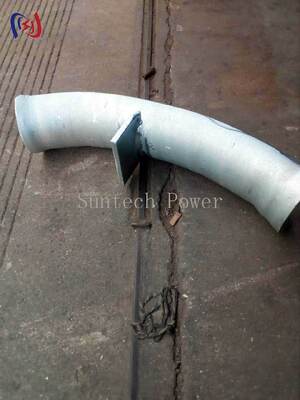

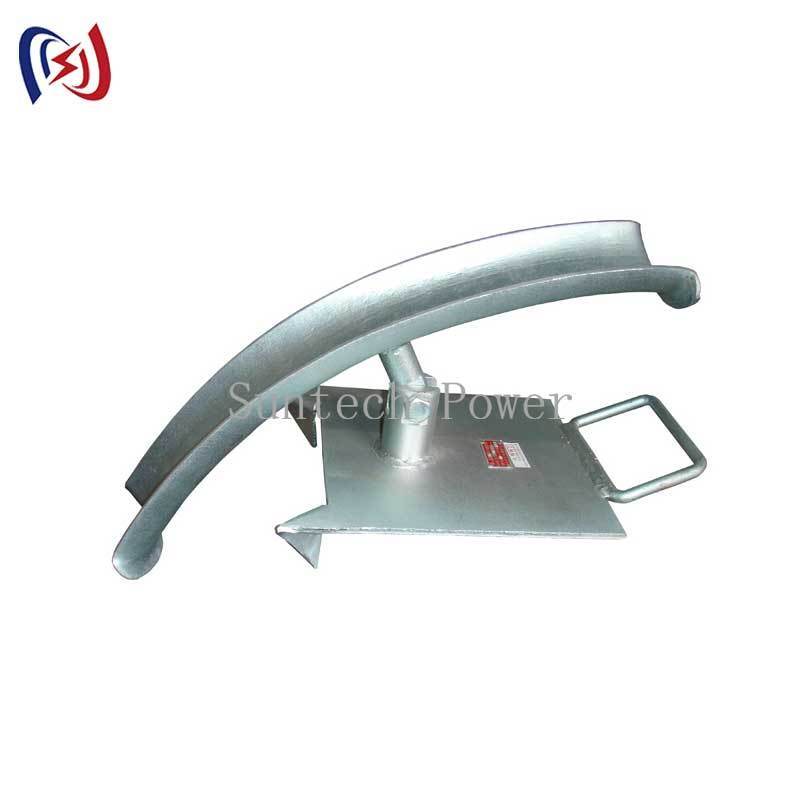

Durable Cable Protective Bend Board Enforces Minimum Bend Radius Prevents Jacket Abrasion and Distributes Sidewall Pressure

Durable Cable Protective Bend Board for Maintaining Minimum Bend Radius in Power Cable Installations

• Enforces and Protects Minimum Bend Radius:​ The most critical function of the bend board is to ensure the cable does not bend tighter than its manufacturer-specified minimum radius. A bend that is too sharp can permanently kink, crush, or damage the internal conductors or optical fibers, leading to immediate failure or reduced lifespan. The board is pre-formed or adjustable to create a gentle, controlled curve that matches or exceeds the required radius, physically preventing an over-bend situation.

• Prevents Cable Jacket Abrasion and Cutting:​ The unprotected inside corner of a concrete trench, duct bank, or manhole wall is extremely abrasive. As the cable is pulled under tension, it can be literally sawed or gouged by these rough surfaces. The bend board presents a smooth, often polymer or metal surface that the cable slides against with minimal friction. This eliminates the scraping action that shreds cable jackets, preserving their waterproofing, insulation, and mechanical protection.

• Distributes Sidewall Pressure Evenly:​ Without a bend board, the cable presses against a small, concentrated area on the corner, creating a high point load that can deform or crush the cable. The board spreads this sidewall force over a much larger area of the cable's surface. This even distribution of pressure prevents localized damage, maintaining the cable's round cross-section and internal structure integrity.

• Reduces Pulling Tension and Friction:​ Friction is the enemy of efficient cable installation. A bend board dramatically lowers the coefficient of friction at the corner. The cable encounters a smooth, guided surface instead of a rough, grabbing one. This reduction in friction at a critical point can significantly lower the overall pulling force required, making the installation easier on the equipment and crew, and allowing for longer pulls.

• Essential for Complex Underground Routing:​ In congested urban infrastructure, cables rarely run in straight lines. They must navigate around existing utilities, follow property lines, and make turns into buildings or substations. Bend boards are the essential tools that make these necessary directional changes possible without damaging the cable. They are routinely used in manholes, at the base of pull boxes, and anywhere a duct bank changes direction.

• Durable and Chemically Resistant for Harsh Environments:​ Manufactured from tough, high-density polyethylene, nylon, or corrosion-resistant aluminum, bend boards are built to withstand the harsh conditions of underground construction. They are resistant to moisture, chemicals commonly found in soil, and physical impact, ensuring they perform reliably and can be reused on multiple projects.

• Improves Worksite Safety and Installation Predictability:​ A protected bend makes the cable pull smoother and more controlled. It reduces the risk of the cable suddenly binding or snagging, which can cause dangerous snap-back or equipment strain. Crews can have greater confidence in the process, leading to a safer and more efficient work environment.

• A Vital Tool for Protecting High-Value Cables:​ This tool is non-negotiable for expensive medium and high-voltage power cables, fiber optic cables, and pre-terminated communications cables. The cost of repairing a damaged section of this cable due to a bad bend is astronomical. The bend board is a minimal investment that protects this major asset, directly contributing to the project's financial and operational success.

• Facilitates Compliance with Installation Standards:​ Professional cable installation standards mandate the protection of cables at bends. Using a bend board provides documented evidence of compliance with these best practices and manufacturer requirements. It is a clear sign to inspectors and clients that the installation was performed with care and professionalism.

• A Smart Investment in Long-Term Reliability:​ The small upfront cost of a Cable Protective Bend Board prevents massive future liabilities. By ensuring the cable is installed without damage at bends, it eliminates a primary cause of premature failure. This investment directly translates into a more reliable cable system with lower lifetime maintenance costs, fewer outages, and extended service life.
