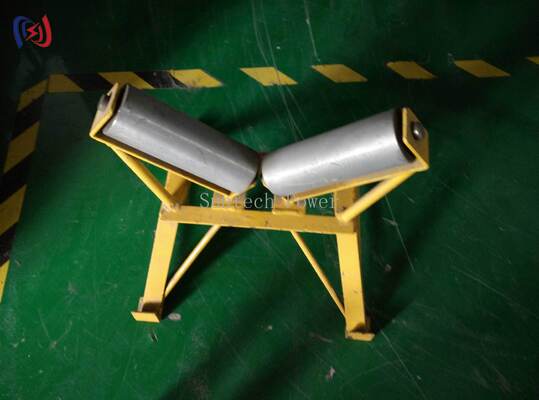

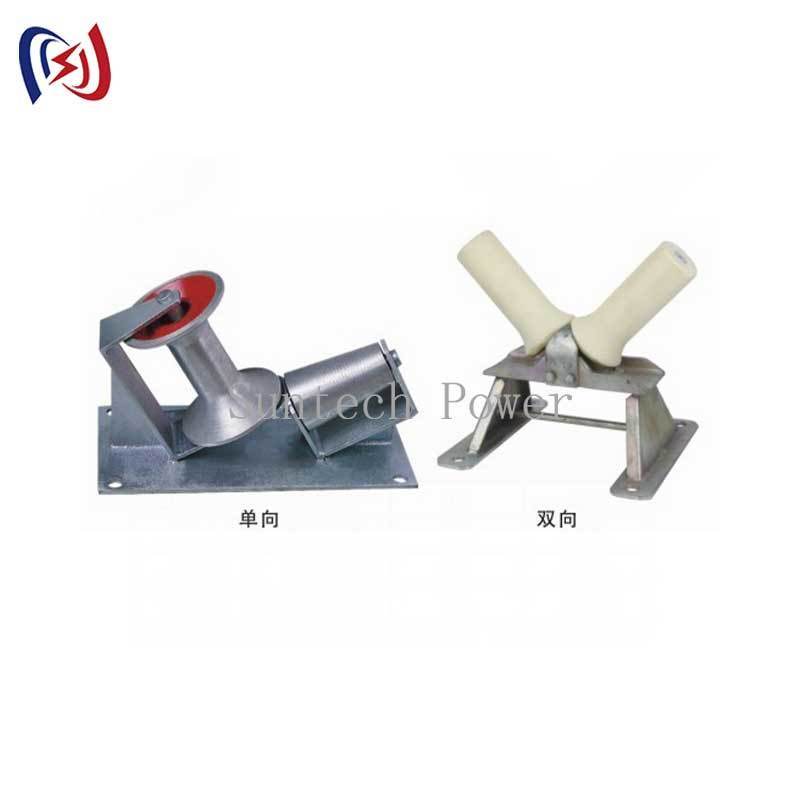

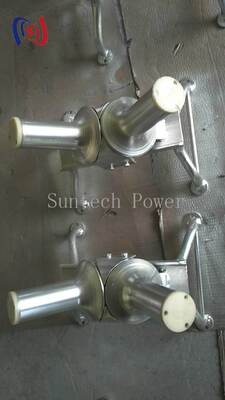

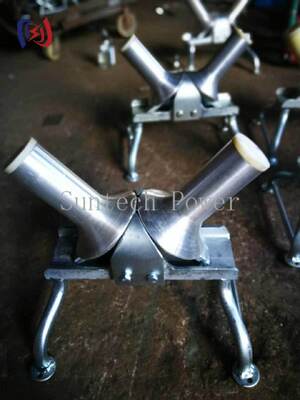

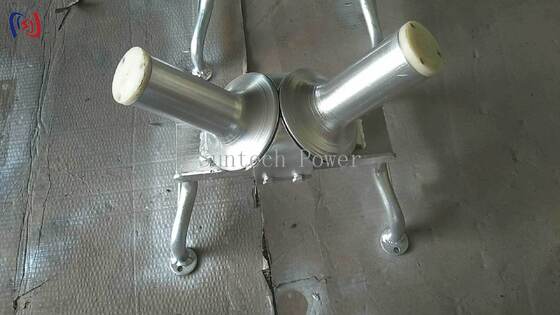

Heavy Duty 10KN Rated Load Cable Turning Roller for 90 Degree Bends in Ducts and Manholes

Heavy Duty Cable Turning Roller for Protecting Cables at 90 Degree Bends in Ducts and Manholes

• Enables Smooth and Controlled Directional Changes:​ The primary purpose of the turning roller is to facilitate a safe change in the cable's path. Without it, a cable forced around a hard corner experiences high friction and crushing forces. The roller provides a dedicated, low-friction channel that guides the cable through the turn smoothly. This controlled guidance is crucial for complex underground routes that must navigate around obstacles, follow property lines, or enter buildings at right angles.

• Protects Cable Jackets from Abrasion and Cutting:​ The most significant risk at a corner is damage to the cable's outer jacket. Concrete, metal duct edges, and rough soil can act like sandpaper or a blade, slicing or grinding the jacket as the cable is pulled under tension. The turning roller's smooth, often polymer-lined sheave cradles the cable, eliminating direct contact with these abrasive surfaces. This preserves the jacket's waterproofing, electrical insulation properties, and mechanical strength.

• Maintains the Cable's Critical Minimum Bend Radius:​ Every cable has a manufacturer-specified minimum bend radius that must not be violated during installation. Exceeding this radius can kink the cable, crush internal components, or stress optical fibers. The turning roller is engineered with a specific sheave diameter that enforces a safe, gradual curve. As the cable wraps around the roller, it is physically prevented from bending too tightly, ensuring compliance with engineering specifications.

• Dramatically Reduces Pulling Tension and Friction:​ Friction is the enemy of efficient cable installation. A bare corner creates immense drag. The free-spinning sheave(s) of the turning roller convert this high-friction scrape into a low-friction roll. This reduction in resistance at the corner can lower the overall pulling force by a substantial margin. Lower force means less strain on the cable, reduced wear on pulling equipment, and the ability to perform longer continuous pulls.

• Essential for Complex Urban and Subsurface Installations:​ In developed areas, cable paths are rarely straight. They must turn into vaults, navigate existing utility crossings, and follow the confines of city infrastructure. Turning rollers are the key tools that make these complex, multi-directional pulls possible. They are routinely used inside manholes, at duct bank elbows, and at the entrance to service pedestals.

• Durable and Built for Harsh Installation Environments:​ Constructed from high-strength, corrosion-resistant materials like aluminum alloys or engineered polymers, these rollers are designed to withstand the dirt, moisture, and physical demands of underground construction sites. Their robust design ensures reliable performance and a long service life across multiple projects.

• Improves Worksite Safety and Operational Efficiency:​ A smooth, controlled turn reduces the risk of the cable suddenly binding or snapping, which can be dangerous for crews. The installation process becomes more predictable and less physically demanding. Crews can work faster and with greater confidence, directly contributing to meeting project schedules and reducing labor intensity.

• A Vital Tool for Protecting High-Value Cable Assets:​ This tool is non-negotiable for expensive medium-voltage and fiber optic cables. The cost of repairing a section damaged by a bad corner pull—requiring excavation, splicing, and restoration—is enormous. The turning roller is a minor investment that safeguards this major infrastructure investment, ensuring it is installed correctly the first time.

• Facilitates Compliance with Professional Installation Standards:​ The use of proper corner protection like turning rollers is a recognized industry best practice. It demonstrates a commitment to quality workmanship and adherence to cable manufacturer guidelines. Using this tool provides tangible evidence to inspectors and clients that the installation was performed professionally and with care for the long-term asset.

• A Smart Investment in System Reliability and Longevity:​ The upfront cost of a Cable Turning Roller is insignificant compared to the lifecycle cost of a cable. By preventing installation damage at corners, it eliminates a primary cause of future failures. This proactive measure results in a more reliable cable system with lower maintenance costs, reduced outage risk, and an extended operational life, delivering an outstanding return on investment.
