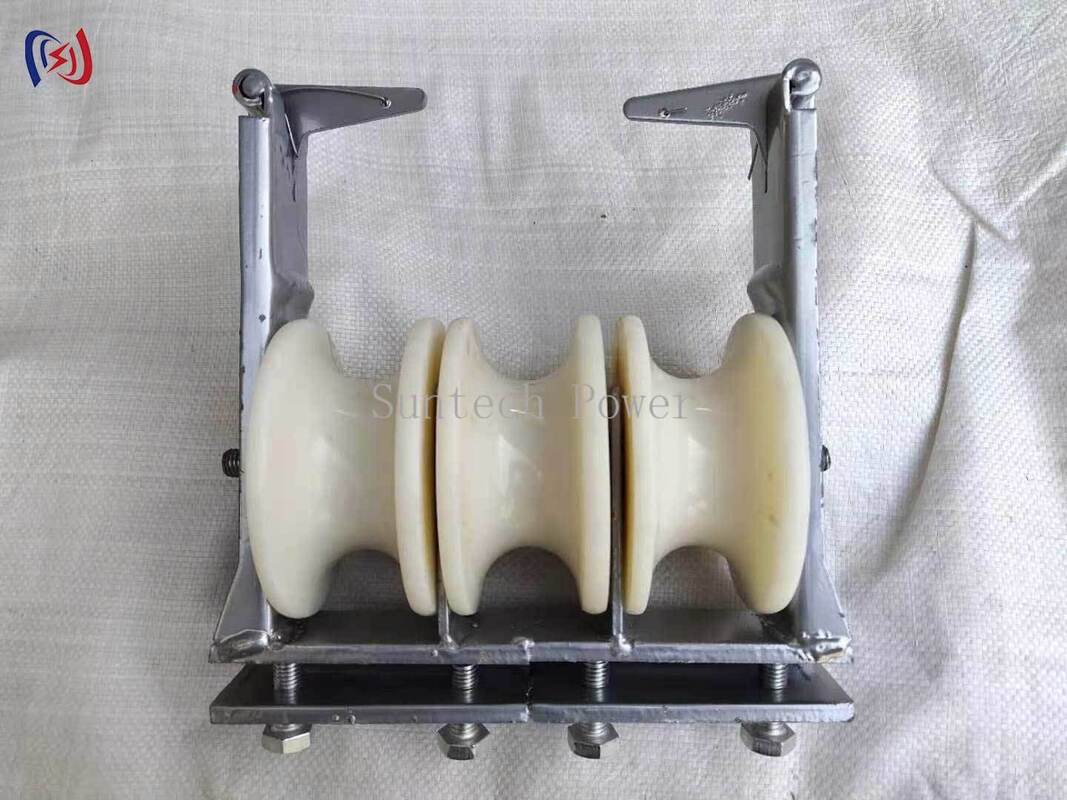

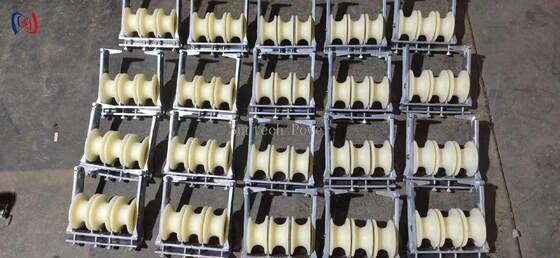

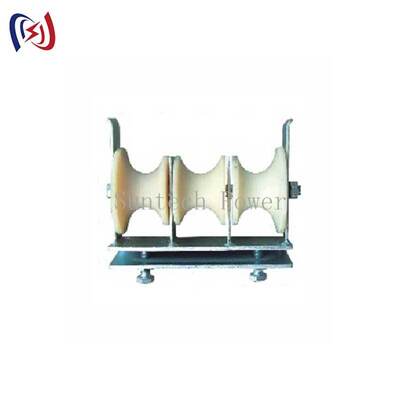

Professional Three Sheaves Stringing Block for Simultaneous Pulling of Three Phase Conductors with 5KN Rated Load and Nylon Sheave

Professional Three Sheaves Stringing Block for Simultaneous Pulling of Three Phase Conductors

• Enables Simultaneous Installation of Three Conductors:​ The core function of this block is to allow the concurrent pulling of three separate conductors. This is exponentially more efficient than stringing each conductor individually with single-sheave blocks. For three-phase transmission lines, it means all phase conductors can be installed in a single, coordinated pull, drastically reducing total stringing time, minimizing crew exposure to potential hazards, and accelerating the overall project timeline.

• Ensures Uniform Tension and Parallel Alignment:​ One of the greatest challenges in multi-conductor installation is maintaining identical tension and perfect parallelism. The three sheaves are precision-aligned on a common frame. As the conductors are pulled, they pass through their respective sheaves, which forces them to pay out at exactly the same rate. This controlled process ensures all conductors have equal tension and maintain a constant, parallel relationship, which is fundamental for the line's electrical performance and to prevent issues like conductor clashing.

• Minimizes Inter Conductor Damage and Abrasion:​ When multiple conductors are pulled through a single, misaligned sheave, they can scrape violently against each other, causing severe damage to the outer strands. The three-sheave design isolates each conductor in its own dedicated groove. This eliminates inter-conductor contact and friction during the pull, thereby protecting the sensitive aluminum or alloy strands from gouging, crushing, or surface abrasion that could compromise performance and longevity.

• Dramatically Improves Job Site Productivity:​ The efficiency gains are profound. Pulling a three-conductor set with a single three-sheave block is approximately three times faster than pulling each conductor separately. This reduces the rental duration for tensioning equipment, lowers fuel and labor costs, and allows construction crews to complete the mechanical stringing phase much faster. This freed-up time can then be allocated to sagging, clipping, and other critical tasks, keeping the project on schedule.

• Engineered for High Load Capacity and Durability:​ Three-sheave blocks are built to handle the combined tensile force of three heavy conductors. They are constructed from high-strength aluminum alloys or steel with reinforced frames and high-capacity bearing systems. This robust construction ensures they can withstand the extreme loads without deformation or failure, providing reliable performance throughout the entire demanding stringing process.

• Reduces Overall Project Cost and Complexity:​ While a three-sheave block represents a specialized investment, it delivers substantial cost savings on multi-conductor projects. The savings in labor, equipment time, and project duration quickly offset the tool's cost. It also simplifies project logistics and execution by turning a complex, multi-stage operation into a single, streamlined process, reducing opportunities for error and delay.

• Critical for Modern High Capacity Grid Construction:​ As utilities seek to increase power transfer capacity, configurations using multiple conductors per phase (bundles) are common. The Three Sheaves Stringing Block is the enabling tool that makes the construction of these high-capacity lines both feasible and efficient. It is directly linked to building a stronger, more capable, and modern power grid.

• Enhances Safety by Reducing Required Pulls and Setups:​ Fewer individual pulls mean fewer opportunities for incidents. Crews spend less time working directly with the tensioned conductor, and the overall site operation is simpler and more controlled. The synchronized pull of the three-sheave block creates a more predictable and safer work environment compared to the repeated setup and takedown required for single-conductor stringing.

• A Proven Solution for Professional Transmission Work:​ Multi-sheave stringing technology is the industry-standard, proven method for installing bundle and multi-phase conductors. Its reliability and effectiveness are well-established among major utilities and transmission contractors worldwide. Using this equipment is a clear mark of professional, high-quality construction practices.

• A Foundational Tool for Grid Modernization Efforts:​ Investing in and utilizing Three Sheaves Stringing Blocks is a commitment to building the advanced transmission infrastructure of the future. It empowers contractors to efficiently build the lines that will carry renewable energy, improve grid reliability, and meet the ever-growing demand for electricity, ensuring projects are completed to the highest standards of quality and efficiency.
