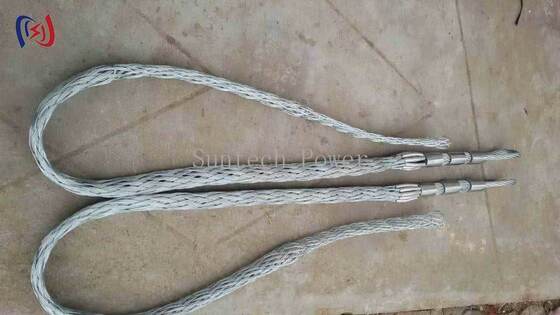

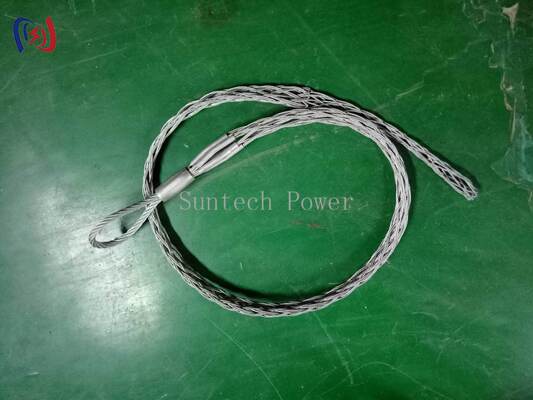

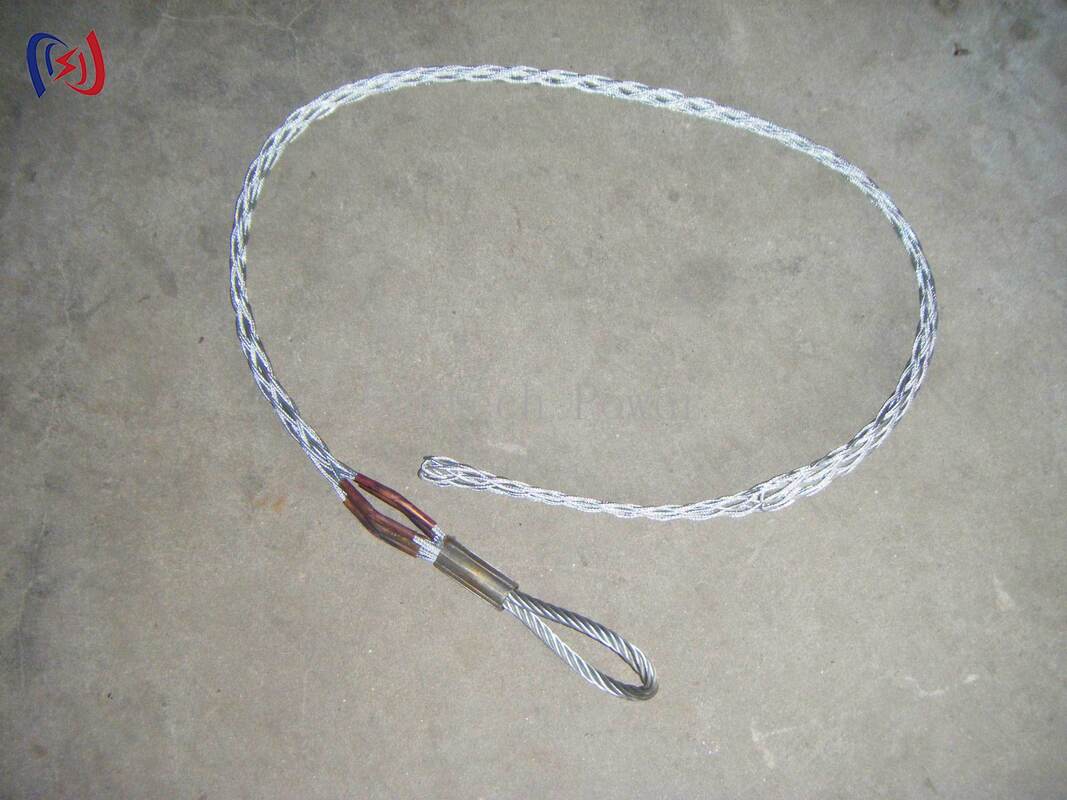

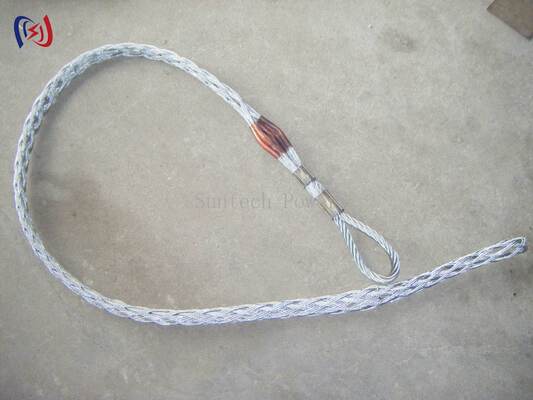

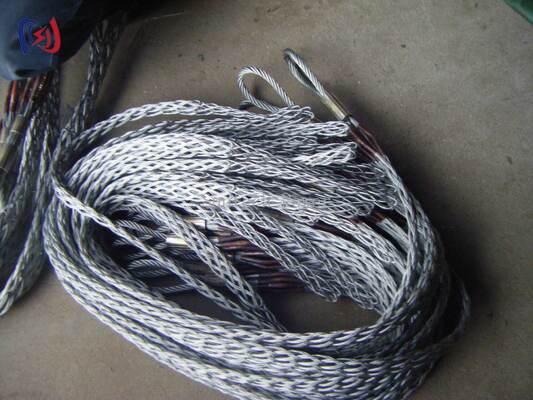

High Tensile Steel Conductor Mesh Sock Joints for Even Pressure Distribution and Non Crushing Performance
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SLW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30000 PCS/Month |
|
Detail Information |
|||
| Name: | Conductor Mesh Sock Joints | Model: | SLW |
|---|---|---|---|
| ACSR: | 70-1250 | Rated Load: | 15-120KN |
| Breaking: | 30-250KN | Warranty: | 1 Year |
| Highlight: | Even Pressure Distribution Conductor Mesh Sock Joints,Non Crushing Performance Mesh Sock Joints,High Tensile Steel Conductor Grips |
||
Product Description
Engineered Conductor Mesh Sock Joints
Engineered Conductor Mesh Sock Joints provide even pressure distribution and non-crushing performance for safe handling of bare overhead conductors.
Product Specifications
| Single Head Item # | Double Head Item # | Model | Applicable Conductor (ACSR) | Rated Load (KN) |
|---|---|---|---|---|
| 17161 | 17181 | SLW(S)-1.5 | ACSR70-95 | 15 |
| 17162 | 17182 | SLW(S)-2 | ACSR120-150 | 20 |
| 17163 | 17183 | SLW(S)-2.5 | ACSR185-240 | 25 |
| 17164 | 17184 | SLW(S)-3 | ACSR300-400 | 30 |
| 17165 | 17185 | SLW(S)-4 | ACSR500-600 | 40 |
| 17166 | 17186 | SLW(S)-5 | ACSR720 | 50 |
| 17167 | 17187 | SLW(S)-7 | ACSR900 | 70 |
| 17168 | 17188 | SLW(S)-8 | ACSR1000-1120 | 80 |
| 17169 | 17189 | SLW(S)-12 | ACSR1250 | 120 |
Product Overview
Conductor Mesh Sock Joints are specialized temporary gripping devices essential for safe and efficient handling, tensioning, and pulling of bare overhead conductors including ACSR (Aluminum Conductor Steel Reinforced) and AAAC (All Aluminum Alloy Conductor). These joints consist of flexible tubular sleeves woven from high-tensile steel wires, forming strong, expandable mesh structures that create secure, distributed grips on conductor strands without causing damage.
Key Features and Benefits
Secure High-Strength Temporary Grip
Creates temporary termination points capable of withstanding full pulling or tensioning forces through mechanical interlocking with conductor strands.
Conductor Protection from Damage
Distributes gripping force evenly along significant conductor length, preventing crushing, notching, and preserving mechanical integrity and electrical conductivity.
Pulling Eye and Loop Formation
Enables creation of robust pulling points for attachment to pulling lines or winch hooks, eliminating need for separate bulky hardware.
Reliable Temporary Dead-End Function
Serves as provisional dead-end clamp during construction or repairs, allowing safe work on tensioned sections.
Safe Conductor Stringing
Preferred method for connecting conductors to pulling ropes, featuring secure grip and smooth profile for easy passage through equipment.
Wide Conductor Size Compatibility
Available in various diameters and lengths to accommodate different conductor sizes from distribution to transmission voltages.
Durable and Reusable Construction
Built from galvanized high-carbon or stainless steel wire to withstand significant abuse and provide multiple uses.
Simplified Splicing and Repair Operations
Facilitates conductor alignment and tension control during complex splicing and repair procedures.
Live Line Work Compatibility
Provides secure attachment points for barehand method work on energized lines when properly installed.
Industry Standard Performance
Established best practice in overhead line industry, proven reliable on countless transmission and distribution projects worldwide.
Conductor Mesh Sock Joints provide a simple yet highly effective solution for applying massive force to vulnerable conductors without causing damage. These joints serve as powerful, protective interfaces between conductors and installation equipment, enabling secure grips, safe pulls, and temporary terminations that contribute directly to the quality and longevity of electrical grid infrastructure.
