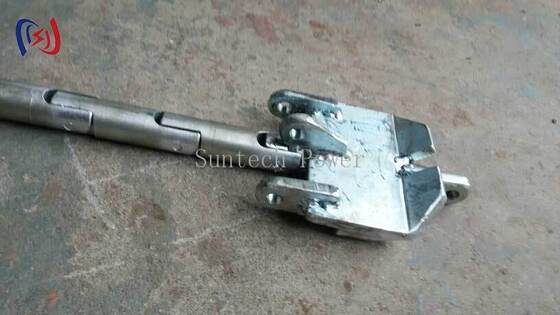

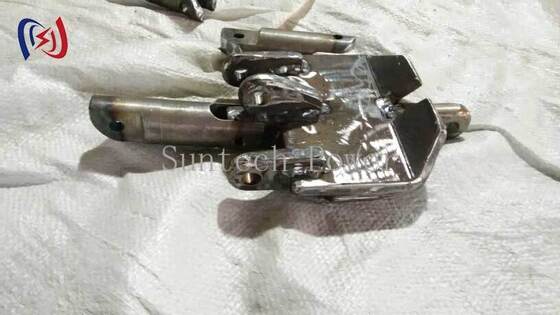

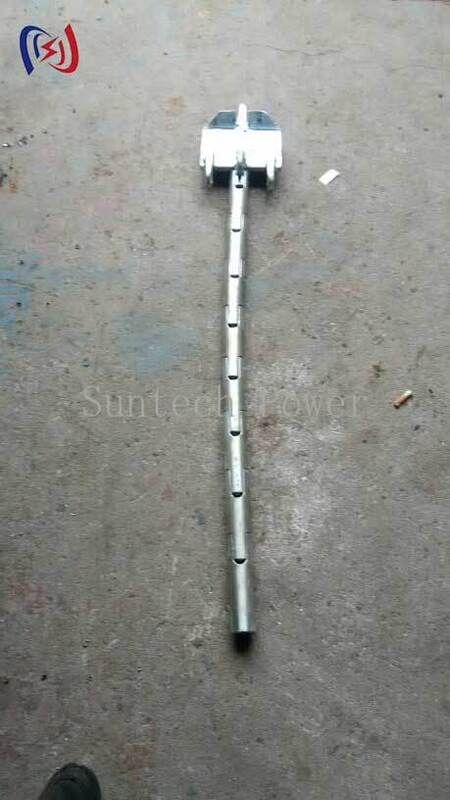

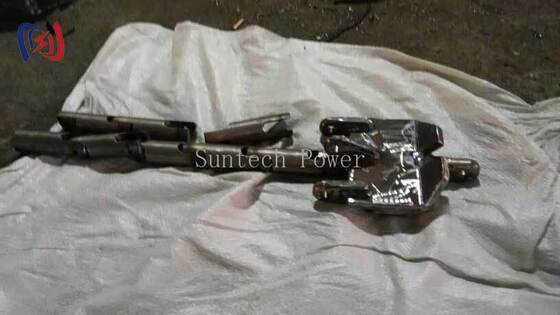

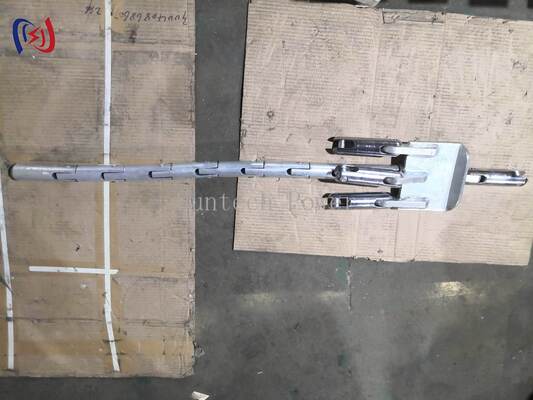

Durable Head Boards for Three Bundle Conductors with Vibration Damping and Clash Prevention for Transmission Lines
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SZ3A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30000 PCS/Month |
|
Detail Information |
|||
| Name: | Head Boards For Three Bundle Conductors | Model: | SZ3A |
|---|---|---|---|
| Rated Load: | 100-180KN | Width: | 100-110mm |
| Weight: | 114-142KG | Warranty: | 1 Year |
| Highlight: | Durable Head Boards for Three Bundle Conductors,Vibration Damping Triangular Spacer Dampers,Clash Prevention Three-Conductor Bundle Head Board |
||
Product Description
Durable Head Boards for Three Bundle Conductors
Vibration Damping and Clash Prevention Solutions
Head Boards for Three Bundle Conductors, commonly referred to as triangular spacer dampers, are critical hardware components essential for the safe, efficient, and reliable operation of high-voltage and extra-high-voltage transmission lines employing three-conductor bundle configurations per phase.
| Item No. | Model | Rated Load (KN) | Applicable Stringing Block Sheave Width (MM) | Weight (KG) | Steel Rope Length (M) |
|---|---|---|---|---|---|
| 17228 | SZ3A-10 | 100 | 100 | 114 | 1*30+1*15 |
| 17229 | SZ3A-13 | 130 | 110 | 130 | |
| 17230 | SZ3A-18 | 180 | 110 | 142 |
Key Features and Benefits
- Maintains Precise Triangular Geometry: Enforces exact spatial relationships between sub-conductors to optimize electromagnetic fields and minimize corona discharge.
- Prevents Conductor Clashing: Provides robust mechanical barriers to maintain safe air gaps between conductors, eliminating electrical arcing risks.
- Advanced Vibration Damping: Integrated damping mechanisms absorb and dissipate energy from aeolian vibration and subspan oscillation.
- Optimized Electrical Performance: Ensures balanced current distribution and reduces corona losses for improved transmission efficiency.
- Enhanced Mechanical Stability: Increases bundle stability against wind-induced galloping and reduces strain on support structures.
- Durable Construction: Manufactured from high-strength aluminum alloys with UV-stable polymers for 40+ year service life.
- Efficient Installation: Designed for live-line techniques and hot stick deployment without costly outages.
- High-Capacity Grid Support: Enables power transfer capacity upgrades in existing transmission corridors.
- Reduced Maintenance Costs: Proactively prevents conductor damage and vibration-induced failures.
- Industry Standard Compliance: Meets established engineering practices for three-bundle conductor lines worldwide.
Head Boards for Three Bundle Conductors are highly engineered system components fundamental to modern high-capacity transmission lines. They actively manage complex mechanical and aerodynamic forces while ensuring precise conductor geometry and providing critical vibration damping. This protects utility investments, ensures efficient power flow, and maintains grid safety and reliability for decades.
