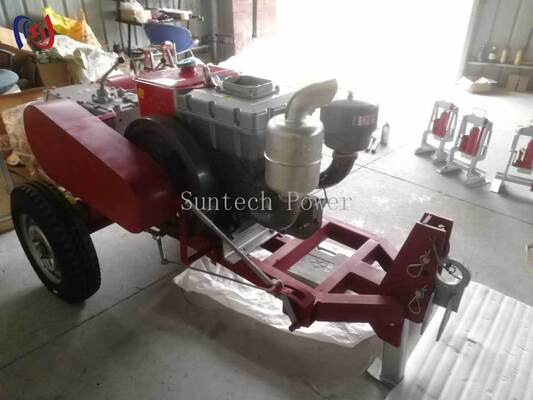

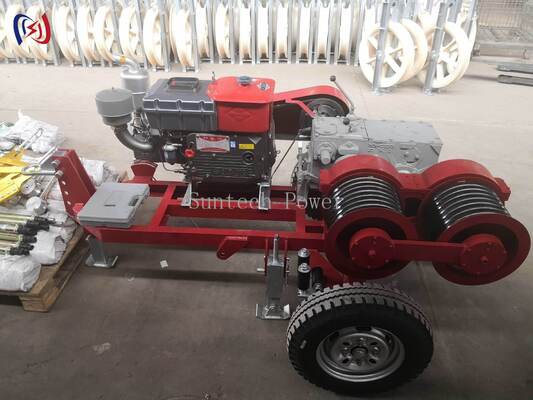

Electric Double Drum Winch with 6.3-9KW Power and 2000-3600RPM Speed for Efficient Cable Pulling
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | JJCS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30000 PCS/month |
|
Detail Information |
|||
| Name: | Double Drum Winch | Model: | JJCS |
|---|---|---|---|
| Power: | 6.3-9KW | Speed: | 2000-3600RPM |
| Diameter: | 230-300mm | Weight: | 270-700KG |
| Highlight: | 6.3-9KW Power Double Drum Winch,2000-3600RPM Speed Electric Winch,270-700KG Weight Cable Pulling Winch |
||
Product Description
Electric Double Drum Winch for Efficient Two Line Pulling
Professional-grade electric double drum winch engineered for simultaneous two-line pulling operations in substation and plant cable laying applications.
Technical Specifications
| Item No. | 09151 | 09152 | 09162 |
|---|---|---|---|
| Model | JJCS-50J | JJQS-50J | JJCS-50T |

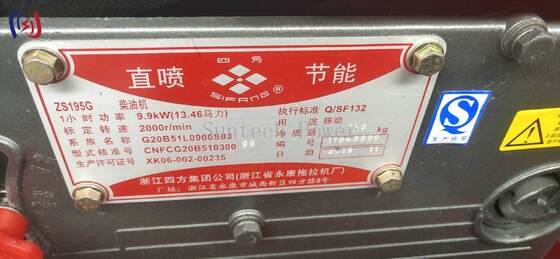

| Engine Model | KF186A Diesel Engine | Honda 390 Gasoline Engine | S195G Diesel Engine |
| Power (KW) | 6.3 | 6.6 | 9 |
| Speed (RPM) | 2600 | 3600 | 2000 |
| Pull Force (KN)/Speed (M/MIN) - Slow | 50*6.0,30/10 | 50/6.0,30/10 | 50/3.1,40/9.6 |
| Pull Force (KN)/Speed (M/MIN) - Moderate | / | / | 45/7.1,17/22.3 |
| Pull Force (KN)/Speed (M/MIN) - Fast | 13/23,10/30 | 13/23,10/30 | 33/11.3,10/35.6 |
| Reverse | -/5,-/17 | -/5,-/17 | -/7.35 |

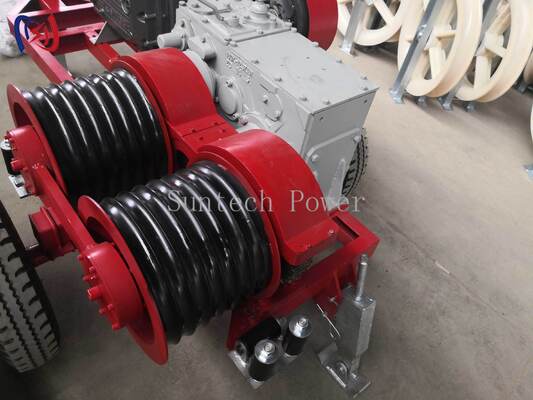

| Drum Bottom of Groove Diameter | Φ230 | Φ230 | Φ300 |
| Outline Size (MM) | 1280*770*600 | 1280*770*600 | 2440*1300*1140 |
| Weight (KG) | 280 | 270 | 700 |
Key Features and Applications
Continuous Tension Stringing for Overhead Lines
Enables precise installation of overhead power lines with controlled tension and sag, preventing ground contact and ensuring installation quality.
Efficient Bundle Conductor Installation
Essential for high-capacity transmission lines using multiple conductors per phase, allowing synchronized installation with consistent tension.
Independent Control for Complex Scenarios
Dual independent drum operation enables sophisticated maneuvers for cable pulling, tensioning, and complex lifting applications.
Enhanced Job Site Efficiency
Consolidates functions of two separate machines, reducing equipment transport and setup time while enabling continuous work cycles.
Superior Safety and Control
Maintains constant control over cables, prevents dangerous slack lines, and minimizes manual handling through remote operation capabilities.
Long Distance and Aerial Installations
Ideal for long-span aerial cables, river crossings, and challenging terrain with consistent tension maintenance over kilometers.
Extreme Duty Construction
Heavy-duty gearboxes, high-capacity brakes, and robust drum assemblies built for harsh field conditions and continuous operation.
Versatile Utility Applications
Suitable for underground cable pulling, cable recovery operations, and specialized lifting requiring independent line control.
The Double Drum Winch represents the engineering solution for efficient, safe, and precise linear cable and conductor installation at scale. This sophisticated pulling machine transforms complex, labor-intensive tasks into smooth, controlled operations, making it indispensable for building and maintaining high-capacity electrical infrastructure. As a foundational machine for professional power line contractors, it provides strategic competitive advantage through faster project completion, reduced crew requirements, and enhanced safety metrics.
