Durable 10-500KV Voltage Grounding Lead with 25-50mm2 Copper and 1000-5500mm Total Length for Overhead Lines and Substation Equipment
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Grounding |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 3000 PCS/Month |
|
Detail Information |
|||
| Name: | Grounding Lead | Voltage: | 10-500KV |
|---|---|---|---|
| Copper: | 25-50mm2 | Insulating: | 700-4100mm |
| Handheld: | 300-1400mm | Total Length: | 1000-5500mm |
Product Description

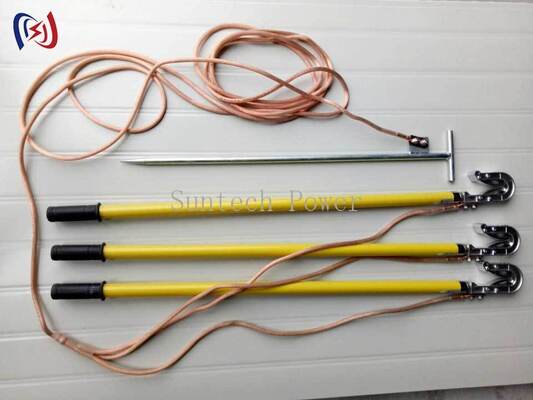

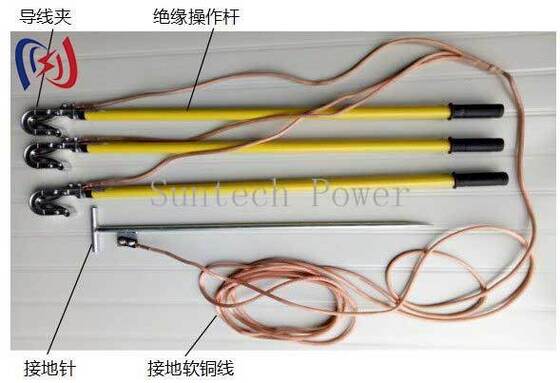

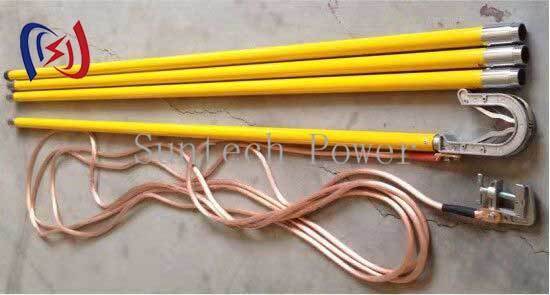

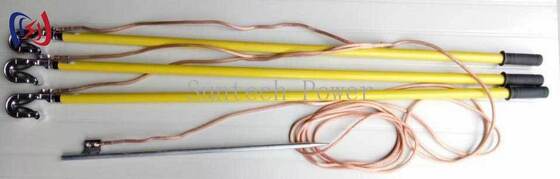

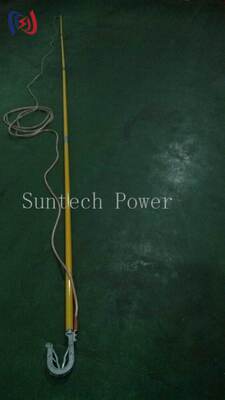

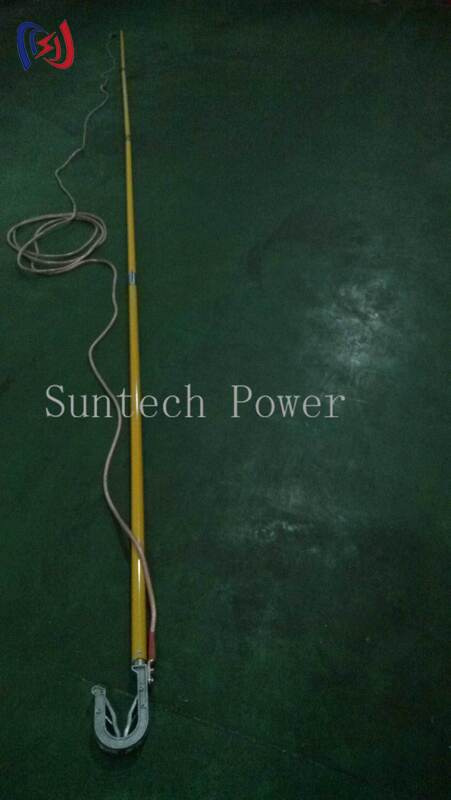

Durable Grounding Lead for Temporary Grounding of Overhead Lines and Substation Equipment
A Grounding Lead, also commonly referred to as a grounding jumper or portable ground, is a fundamental and absolutely critical safety device in electrical power systems. It is a specially constructed cable assembly designed to create a deliberate, low-impedance connection between an isolated or de-energized electrical conductor and a verified ground point, such as the system ground grid or a grounded structure.
Technical Specifications
| Voltage Class | Ground Soft Copper Wire (mm²) | Length of Ground Operation Rod (mm) | Insulating | Handheld | Total Length |
|---|---|---|---|---|---|
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 | 1.5*3+18 | 900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV | 25,35 | 9*3 2*3+20 |
1300 | 700 | 2000 |
| 220KV | 25,35 | 9*3 3*3+25 |
2100 | 900 | 3000 |
| 330KV | 35,50 | 12*3 4*3+25 |
3000 | 1100 | 4100 |
| 500KV | 35,50 | 13*3~20*3 | 4100 | 1400 | 5500 |
| 220-500KV Overhead Ground Wire | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| High Pressure Test Equipment | 35,50 | 5*3~10*3 | 700 | 300 | 1000 |
Key Features and Applications
- Creates a Safe, Zero-Potential Work Zone: Protects personnel by ensuring de-energized equipment remains at zero electrical potential, even if accidentally re-energized.
- Low-Impedance Path for Fault Currents: Provides engineered path for fault and induced currents using high-purity stranded copper construction.
- Essential for Lock Out Tag Out Ground Procedures: Critical final step in safety procedures for de-energized electrical work.
- Temporary Grounding for Maintenance: Used in substations and overhead lines during switching operations and maintenance activities.
- Equipotential Bonding: Eliminates step and touch potential risks by bonding metallic structures to equal electrical potential.
- Durable Field Construction: Built with flexible, fine-stranded copper and weather-resistant, high-visibility jackets for harsh environments.
- Multiple Configurations Available: Available in various lengths and setups including single leads and three-phase plus neutral kits.
- Personal Protective Grounding Systems: Central component of comprehensive electrical safety systems rated for specific fault currents.
- Rigorous Testing Requirements: Subject to regular visual inspections and high-current testing to ensure operational integrity.
- Safety Compliance Investment: Meets OSHA, NFPA 70E and other regulatory requirements for electrical safety programs.
The Grounding Lead is much more than just a cable; it is a purpose-built safety lifeline. It is the engineered solution that actively creates a safe working environment in the inherently dangerous field of electrical power. By providing a controlled, low-resistance path to ground, it ensures that unexpected electrical energy is safely diverted, protecting the lives of skilled professionals who build, maintain, and repair electrical infrastructure.
