Laser Zoom Sag Scope with 4x Magnification for Non Contact Measurement on Transmission Lines Applicable to Angle Iron <56-125
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 22151 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |

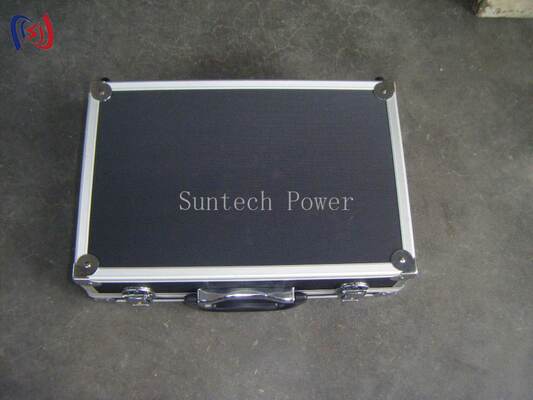

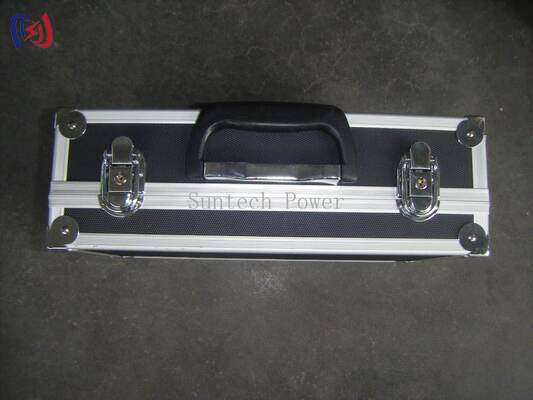

| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 3000 PCS/Month |
|
Detail Information |
|||
| Name: | Zoom Sag Scope | Item No.: | 22151 |
|---|---|---|---|
| Magnification Factor: | 4 | Applicable Angle Iron: | <56-125 |

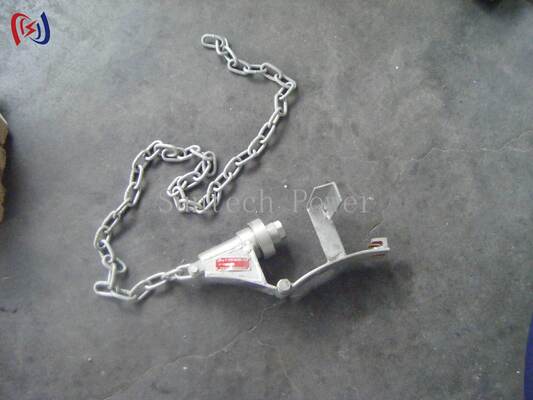

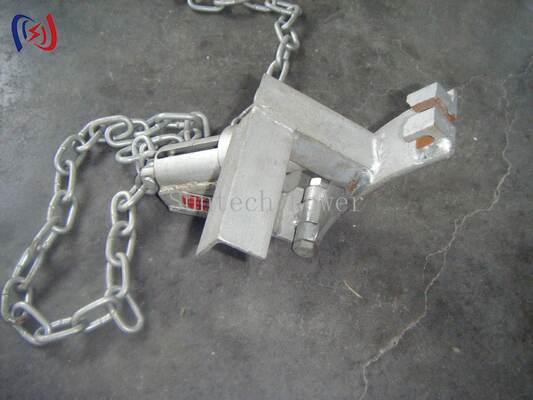

| Weight: | 1.6KG | Remark: | Angle Steel On The Tower |
Product Description

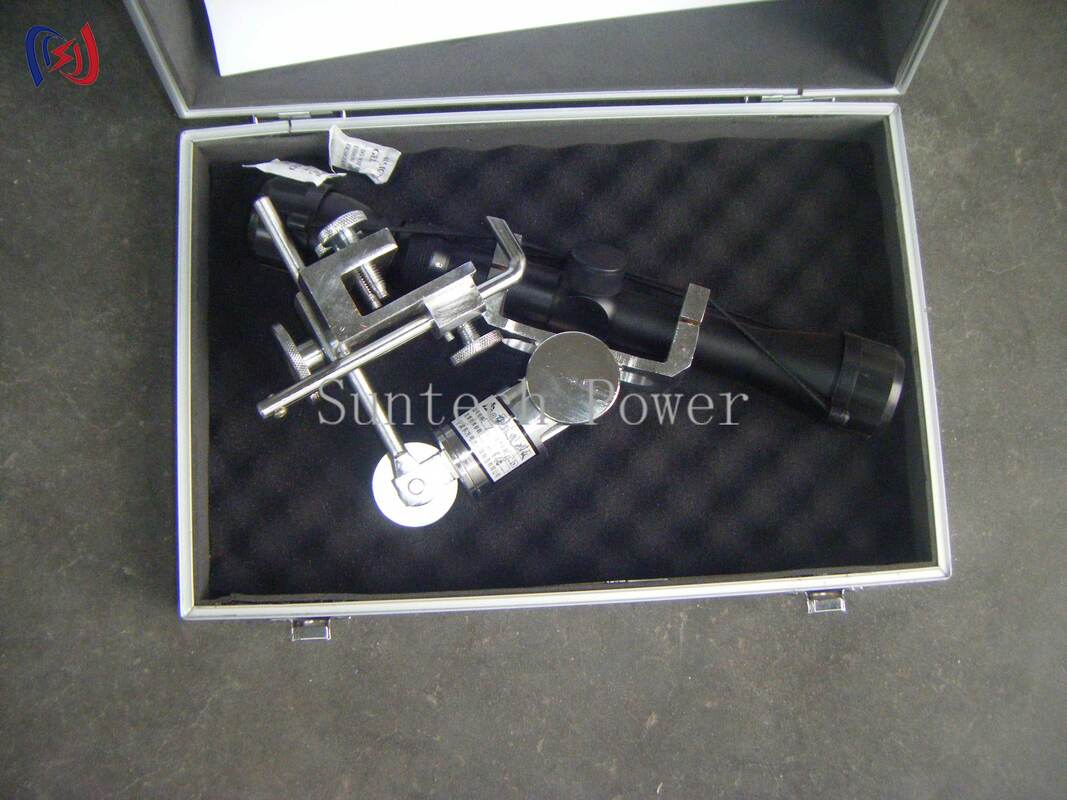

Laser Zoom Sag Scope for Non Contact Distance and Height Measurement on Transmission Lines
The Zoom Sag Scope is a specialized optical survey instrument designed specifically for measuring the sag (vertical dip) of overhead electrical conductors and the clearance between conductors and the ground or other objects. It is an essential tool for ensuring the safety, reliability, and efficiency of power line construction, maintenance, and inspection.
| Item Number | 22151 |
|---|---|
| Magnification factor | 4 |
| Applicable angle iron | <56~125 |
| Weight | 16kg |
Key Applications and Benefits
- Ensures Proper Conductor Tension and Sag: Verifies that conductors meet design specifications for optimal mechanical tension and safety.
- Verifies Safe Electrical Clearances: Precisely measures distances to ground, roads, buildings, and other structures to ensure code compliance.
- Essential for Construction Projects: Critical tool for real-time sag monitoring during new conductor installation and replacement projects.
- Non-Contact Measurements: Enables accurate measurements from safe ground distances, eliminating risks associated with direct contact.
- Supports Maintenance Programs: Used in routine inspections to monitor transmission network health and identify potential issues.
- Load and Temperature Assessments: Measures sag variations under different seasonal conditions to validate engineering models.
- Durable Field Performance: Rugged, portable design built to withstand challenging environmental conditions.
- Improved Accuracy: Provides objective, repeatable measurements that eliminate guesswork and estimation errors.
- Grid Reliability Compliance: Essential tool for meeting regulatory requirements and maintaining infrastructure standards.
- Long-Term Investment: Protects capital investments by ensuring construction quality and preventing costly failures.
The Zoom Sag Scope is a precision optical tool that translates visual observations into critical engineering data. It provides the quantitative information needed to control conductor sag, playing an indispensable role in constructing safe power lines, maintaining reliable clearances, and ensuring the ongoing integrity of electrical transmission and distribution systems.
