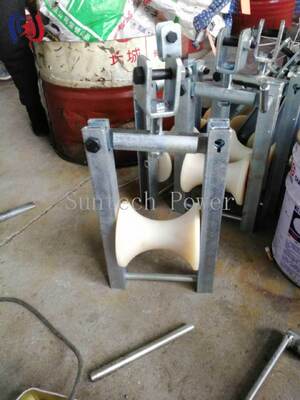

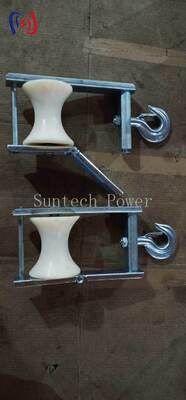

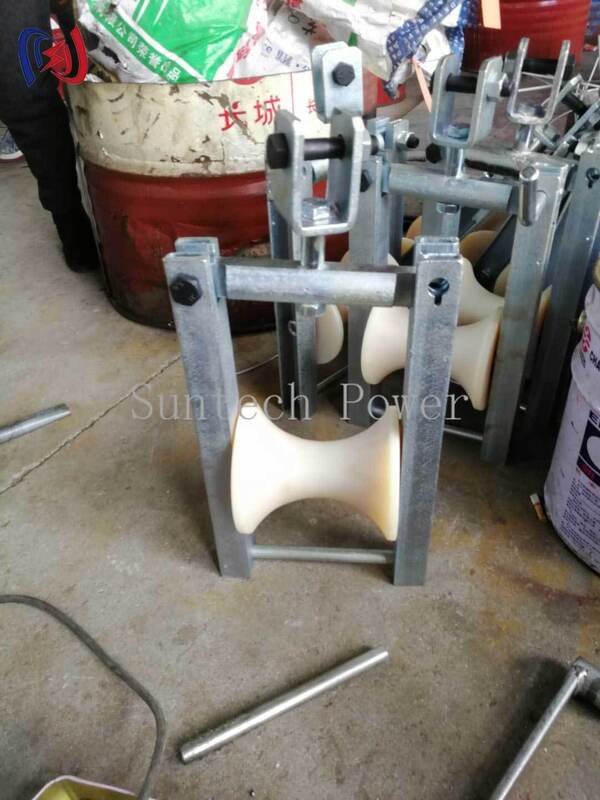

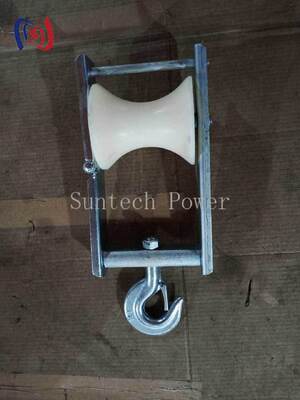

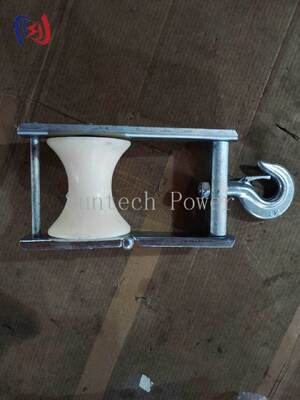

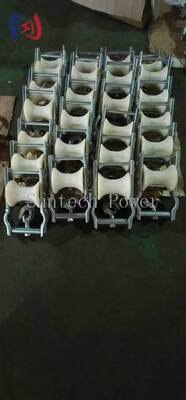

Durable Aerial Cable Stringing Block with 120x130mm Sheave and 5KN Rated Load for Transmission Lines
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | Ningbo |
| Model Number: | Aerial |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 3000 PCS/Month |
|
Detail Information |
|||
| Name: | Aerial Cable Stringing Block | Sheave: | 120x130mm |
|---|---|---|---|
| Max Applicable: | 80-200mm | Rated Load: | 5KN |
| Weight: | 2.7-12.5KG | Warranty: | 1 Year |
Product Description
| Item Number | Rated Load (kN) | Max Applicable Cable | Sheave Size | Weight (kg) |
|---|---|---|---|---|
| 10228 | 5 | φ 100 | φ120x130mm | 2.7 |
| 21338 | 5 | φ 80 | φ160x90mm | 3.5 |
| 21339 | 5 | φ 150 | φ140x160mm | 3.5 |
| 21340 | 5 | φ 200 | φ160x230mm | 12.5 |
The Aerial Cable Stringing Block is a fundamental and essential tool for the installation, maintenance, and repair of all types of overhead cables, including power conductors, Optical Ground Wire (OPGW), and communication cables. This robust mechanical device is designed to guide and support cables as they are pulled into position on utility poles, transmission towers, and other aerial support structures.
Its core function is to minimize friction between the moving cable and the fixed structure, thereby reducing the pulling force required, protecting the cable from damage, and enabling precise tension control during installation. Typically constructed from high-strength aluminum alloy or composite materials, it features a large-diameter sheave with a precisely machined groove that cradles the cable, along with sealed bearings for smooth rotation.
For utility line crews, telecommunications installers, and electrical contractors, a reliable aerial cable stringing block is not just a tool; it is a critical component for ensuring safe, efficient, and high-quality aerial cable installations that form the backbone of power grids and communication networks.
- Minimizes Friction for Efficient and Controlled Cable Pulling Converts sliding friction into rolling friction, allowing tensioning equipment to operate more efficiently with less force. Enables longer continuous pulls and superior control over cable speed and tension.
- Protects Valuable and Sensitive Cables from Installation Damage Smooth, contoured groove cradles the cable securely, distributing pressure evenly and preventing kinks, pinch points, and abrasion. Safeguards electrical and mechanical integrity for long-term reliability.
- Essential for Safe Overhead Line Construction and Maintenance Properly rated and securely mounted blocks contain cable path, prevent dangerous whipping, and reduce strain on rigging and equipment. Contributes to a safer work environment.
- Enables High-Quality, Precision Installations Provides consistency for uniform tension application and engineered sag. Ensures proper electrical clearances and optimizes conductor performance.
- Versatile for a Wide Range of Aerial Applications Suitable for heavy transmission conductors, distribution lines, communication cables, and static wires. Available in various sheave sizes and groove profiles for different cable diameters.
- Durable and Built for Harsh Outdoor Environments Constructed from corrosion-resistant materials with sealed bearings. Withstands UV exposure, temperature extremes, and construction site demands with minimal maintenance.
- Improves Project Efficiency and Reduces Labor Costs Faster pulling speeds, elimination of rework due to cable damage, and minimized setup time accelerate project timelines and reduce crew hours.
- Critical Tool for Modern Grid and Network Deployment Enables expansion and hardening of power grids and telecommunications networks. Essential for installing smart grid sensors and broadband fiber infrastructure.
- Facilitates Both Tension and Slack Stringing Methods Adaptable to tension stringing (for power lines) and slack stringing (for communication lines), providing necessary guidance and protection throughout the process.
- Foundational Component of Professional Line Work Demonstrates commitment to industry best practices, safety standards, and asset protection. A non-negotiable tool for performing core tasks correctly and efficiently.
In summary, the Aerial Cable Stringing Block is a deceptively simple yet profoundly important tool. It solves the basic physical challenge of installing linear cable in a three-dimensional aerial space. By managing friction and guiding the cable, it protects valuable assets, enhances worker safety, enables precision, and drives productivity. It is an indispensable and enduring tool for the skilled professionals who build, maintain, and upgrade the vital aerial networks that carry power and information across our communities and countries.
