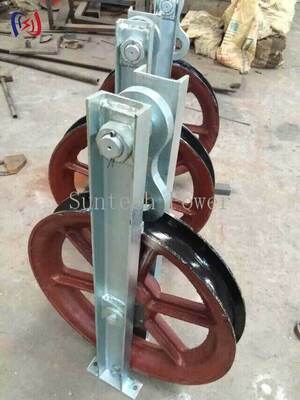

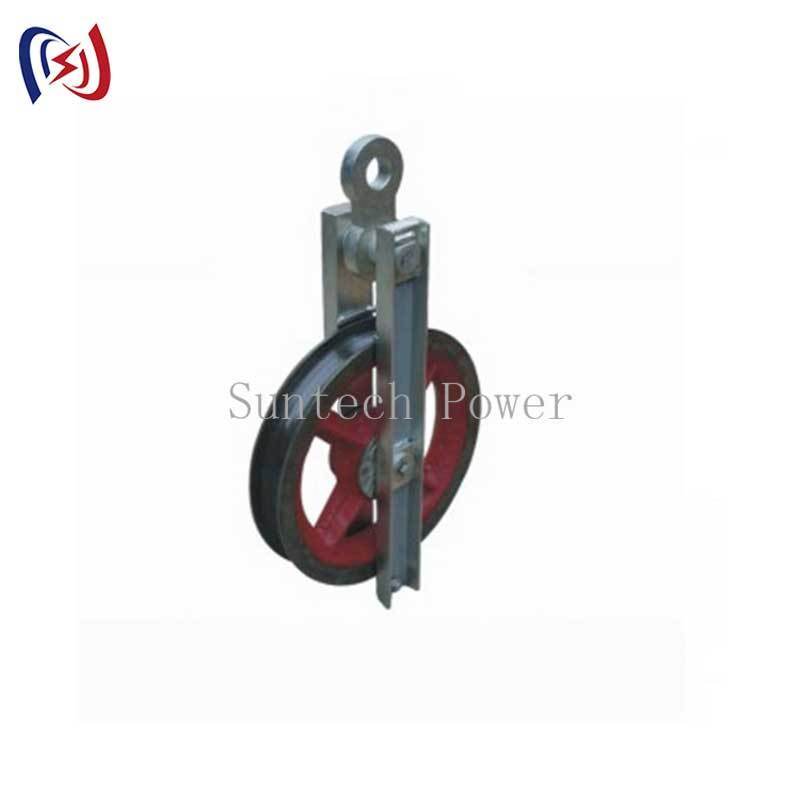

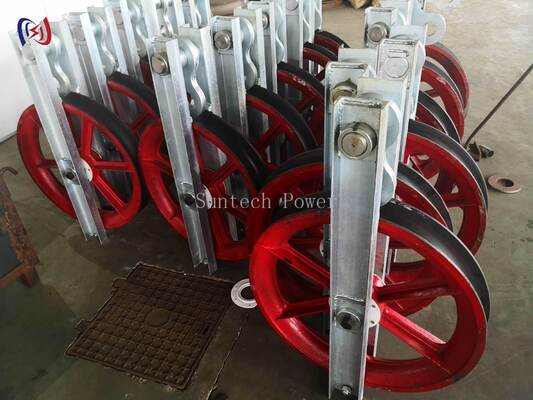

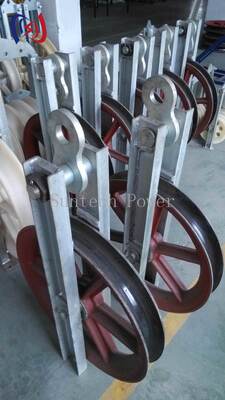

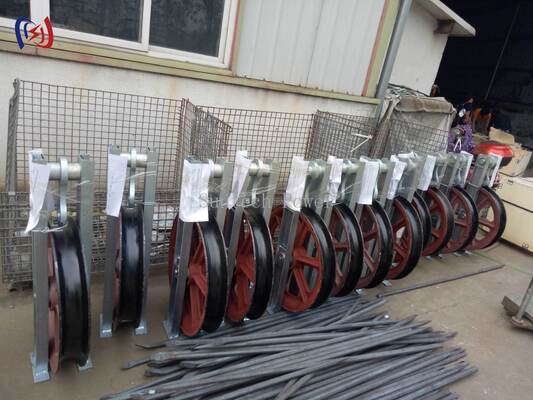

High Speed Turning Block: 300KN Heavy-Duty Single Steel Sheave for Conductor Stringing
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | THZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 700 PCS/Month |
|
Detail Information |
|||
| Name: | High Speed Turning Block | Model: | THZ1 |
|---|---|---|---|
| Rated Load: | 50-300KN | Sheave Width: | 75-110 |
| Weight: | 22-200KG | Warranty: | 1 Year |
Product Description
The THZ series High Speed Turning Block is a professional-grade stringing tool designed for high-efficiency power construction. Engineered for steel wire rope traction, this block supports a maximum hauling speed of 80m/min and allows for the seamless passage of steel wire rope connectors. With a rated load capacity ranging from 50KN to 300KN, it is the ideal solution for complex turning angles in high-voltage transmission line projects.
Our turning blocks are constructed with reinforced steel sheaves to maintain stability under extreme tension:
| Item Number | Model | Rated Load (KN) | Sheave Diameter (mm) | Sheave Width (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 12141 | THZ1-5 | 50 | Φ308 | 75 | 22 |
| 12141A | THZ1-8 | 80 | Φ308 | 110 | 30 |
| 12142 | THZ1-16 | 160 | Φ600 | 110 | 115 |
| 12143 | THZ1-30 | 300 | Φ916 | 110 / 125 | 200 |
- Maximum Allowable Speed: 80m/min
- Sheave Material: High-strength Wear-resistant Steel
- Compatible Media: Steel Wire Rope, Conductor, Fiber Optic Cable
- Connector Pass-Through Design: Specially profiled sheave groove allows steel wire rope connectors to pass through without jamming, ensuring continuous operation.
- High-Speed Stability: Optimized for hauling speeds up to 80m/min, significantly reducing project timelines compared to standard blocks.
- Heavy-Load Durability: The full steel sheave and reinforced frame support up to 300KN (30 Tons), preventing deformation during high-tension turns.
- Versatile Mounting: Equipped with a heavy-duty hanging eye for secure attachment in various field configurations.
- Transmission Line Construction: Ideal for steering steel wire ropes during conductor stringing.
- Long-Distance Traction: Used in hauling rope setups for fiber optic and overhead line deployment.
- Complex Terrain Projects: Provides reliable turning points for traction systems in mountainous or restricted areas.
Yes. The THZ series is specifically designed to allow high-speed passage of connectors, preventing manual intervention during the pulling process.
The THZ1-30 is rated for a maximum load of 300KN, which is equivalent to 30 metric tons of pulling force.
Absolutely. The sheaves are made of high-quality steel, designed to withstand the heat and friction generated at speeds up to 80m/min.
