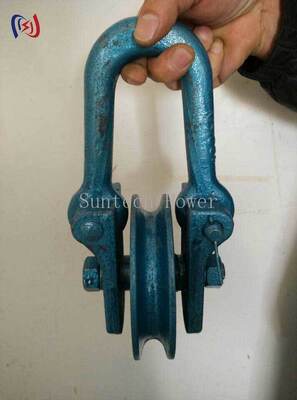

Heavy Duty Hoisting Point Block with 80KN Rated Load for Vertical Conductor Lifting
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | QHD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 PCS/Month |
|
Detail Information |
|||
| Name: | Hoisting Point Block | Model: | QHD |
|---|---|---|---|
| Rated Load: | 50-80KN | Weight: | 8-12KG |
| Highlight: | 80KN Rated Load Hoisting Point Block,Vertical Conductor Lifting Lifting Block,Heavy Duty Rigging Block |
||
Product Description
Heavy Duty Hoisting Point Block – 80KN Rated Load for Vertical Conductor Lifting
Product Overview
The QHD series Hoisting Point Block is a specialized lifting tool engineered for transmission line construction. Specifically designed for fixing onto A-shape lattice structure holding poles, this block serves as a high-strength alternative to traditional hoisting tackle. With a rated load capacity of up to 80KN, it ensures balanced and stable lifting during the most demanding tower erection and stringing operations.
Technical Specifications
|
Item No. |
Model |
Rated Load(KN) |
Sheave Dia.(mm) |
Sheave Width(mm) |
Weight(kg) |
|
12131 |
QHD-50 |
50 |
160 |
36 |
8 |
|
12132 |
QHD-80 |
80 |
190 |
42 |
12 |
Product Advantages
· Optimized for Gin Poles — Designed to integrate directly with A-shape holding poles, simplifying the lifting setup.
· High Load Stability — The 80KN capacity provides a superior safety margin for heavy lattice tower components.
· Tactical Alternative — Engineered to replace bulky hoisting tackle, reducing total weight and rigging complexity.
· Heavy-Duty Construction — Reinforced steel frame and high-performance sheave minimize friction during vertical lifts.
Frequently Asked Questions (FAQ)
Q: Why use a Hoisting Point Block instead of traditional hoisting tackle?
A: It is more compact, easier to install in confined lattice spaces, and eliminates extra weight of complex tackle systems.
Q: What is the maximum cable size for QHD-80?
A: The QHD-80 features a 42mm sheave width, accommodating large diameter round cables and lifting chains.
Q: Is this block suitable for horizontal pulling?
A: While capable, its primary design intent is for vertical hoisting points on lattice structures.
Q: What is the weight of each model?
A: QHD-50 is 8kg, QHD-80 is 12kg, making them easily transportable.
