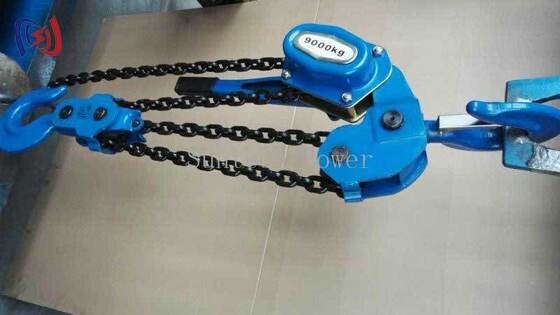

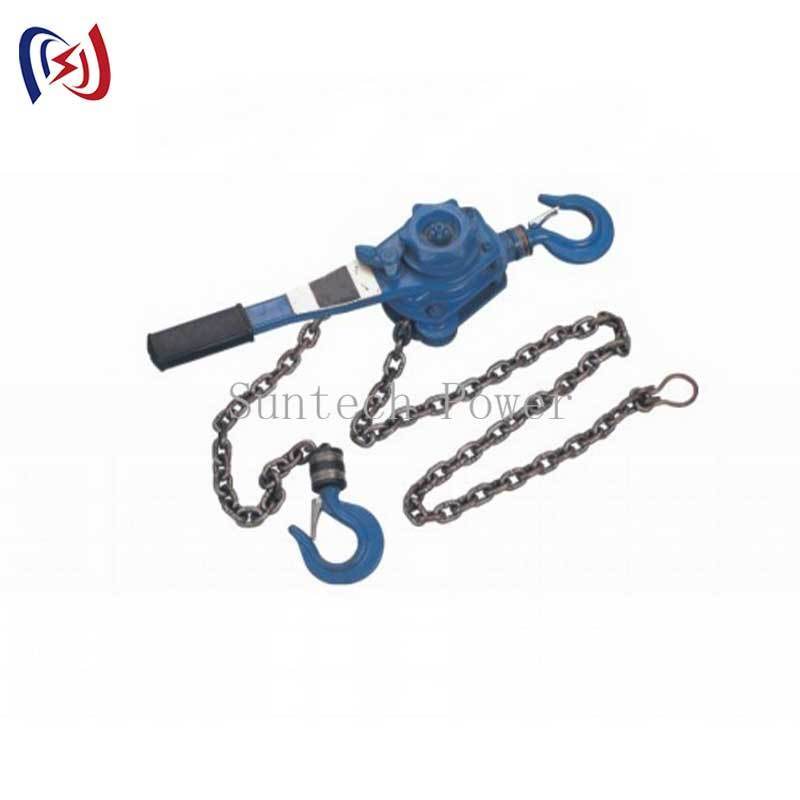

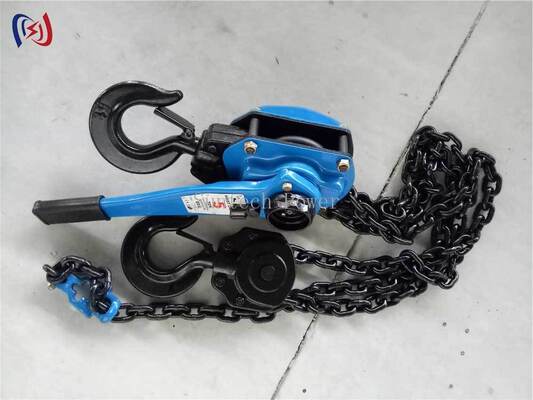

30kN Chain Type Handle Hoist with 360 Degree Rotating Hand Chain Guide and 1.5m Standard Lifting Height Manual Chain Pulley Block
Product Details:
| Place of Origin: | Ningbo, Zhejiang, China |
| Brand Name: | Suntech |
| Certification: | ISO 9001:2015 |
| Model Number: | 14201 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export-grade wooden case with steel strapping and moisture-proof lining |
| Delivery Time: | 7-15 working days for production |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 Pieces per Month |
|
Detail Information |
|||
| Product Name: | Chain Type Handle Hoist | Item No.: | 14231 |
|---|---|---|---|
| Rated Load: | 30 KN | Number Of Lifting Chain Lines: | 1 Row |
| Minimum Distance Between Hooks: | 480 Mm | Standard Lifting Height: | 1.5 M |
| Weight Of 1m Chain: | 2.2 KG | Net Weight: | 21 KG |
| Operation: | Manual Hand Chain With 360-degree Rotating Guide | Warranty: | 1 Year |
| Highlight: | 360 Degree Rotating Chain Type Handle Hoist,30kN Manual Chain Pulley Block,1.5m Lifting Height Hand Chain Hoist |
||
Product Description
Chain Type Handle Hoist 30kN — 360° Rotating Hand Chain Guide for Transmission Line Lifting and Tightening
The Suntech 30kN chain type handle hoist is a lightweight manual chain pulley block built for line construction and heavy-industry lifting. Its defining feature is a 360° rotating hand chain guide that lets the operator work from any angle while staying clear of the load and the danger zone.
Made for Line Crews
This hoist is supplied by Suntech Power Tools, a Ningbo manufacturer with more than two decades in power transmission line stringing and utility tooling. It is designed for the two jobs crews repeat all day: lifting machine parts and tightening steel or aluminium stranded wire during stringing. The rotating guide was added specifically so that an operator on a tower or in a substation can find a safe pulling angle without repositioning the block.
How the Rotating Guide Helps
The hand chain guide turns a full 360° around the body, so the chain can be pulled from whichever side keeps the operator away from the load path. Combined with the low weight of the block itself, this makes precise positioning easier and reduces the strain of working at height or in confined substation bays. Standard chain length is 1.5m, with 3m and 5m options for different working heights.
Technical Specifications
| Item No. | Rated Load (kN) | Min. Distance Between Hooks (mm) | Standard Lifting Height (m) | Chain Lines | Weight (kg) | Weight of 1m Chain (kg) |
|---|---|---|---|---|---|---|
| 14201 | 5 | 260 | 1.5 | 1 | 4.2 | 0.52 |
| 14211 | 7.5 | 320 | 1.5 | 1 | 7.5 | 0.8 |
| 14215 | 10 | 380 | 1.5 | 1 | 11.5 | 1.4 |
| 14221 | 15 | 380 | 1.5 | 1 | 11.5 | 1.4 |
| 14231 | 30 | 480 | 1.5 | 1 | 21 | 2.2 |
| 14241 | 60 | 620 | 1.5 | 2 | 31.5 | 4.4 |
| 14245 | 90 | 700 | 1.5 | 3 | 47 | 6.6 |
Chain length options: standard 1.5m; 3m and 5m variants available across the range.
Build and Testing
Each hoist is inspected before shipment for rated load, chain quality, guide rotation and hook dimensions, and production follows an ISO 9001 quality management system. The full range covers 5–90kN with one, two and three chain lines to suit the effort required at the hand chain.
Standards, Warranty and Support
Suntech supplies stringing blocks, cable rollers and utility hardware to customers in more than 50 countries and can produce to OEM specification. Hoists ship with a maintenance guide and carry a 12-month warranty on manufacturing defects.
Where It Works Best
- Lifting machine parts during construction and maintenance
- Tightening steel and aluminium stranded wire
- Transmission line stringing and substation rigging
- General manual lifting in heavy industry
- Work at height or in confined bays where angle matters
Selecting a Model
Match the rated load to the heaviest lift with a safe margin, then choose the chain-line count for the pulling effort you want. The 30kN single-row model suits most hardware and light conductor lifts; heavier wire pulls move up to the 60kN two-row and 90kN three-row units. Tell us your load, working height and chain length, and we will confirm the right hoist.
Frequently Asked Questions
Why does the rotating guide matter? It lets the chain be pulled from any angle, so the operator stays clear of the load and danger zone without repositioning the block.
What chain lengths are available? Standard 1.5m, with 3m and 5m options across the range.
Is OEM branding possible? Yes. Hoists can be produced to OEM specification.
Request a Quotation
Tell us your required rated load, lifting height and chain length. Our team will recommend the right model for your lifting or wire-tightening task. Contact us for a factory-direct quotation today.
