508mm Large Diameter Rope Pulley Single Nylon Sheaves Galvanized Conductor Stringing Block
Product Details:
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Model Number: | SHD508 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T L/C |
| Supply Ability: | 1000PCS/ Month |
|
Detail Information |
|||
| Material: | Nylon | Performance: | Durable, Corrosion Resistant |
|---|---|---|---|
| Application: | Conductor Stringing | Usage: | Stringing Tools |
| Surface: | Garvanized | Warranty: | One Year |
| Highlight: | 508mm Large Diameter Rope Pulley,Large Diameter Rope Pulley Galvanized,508mm conductor stringing blocks |
||
Product Description

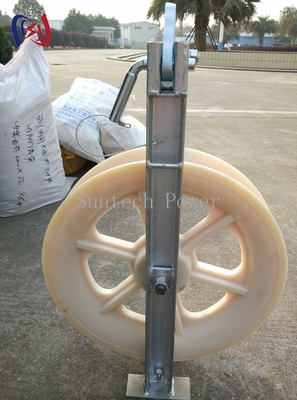

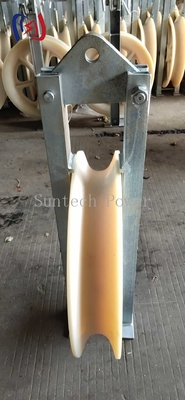

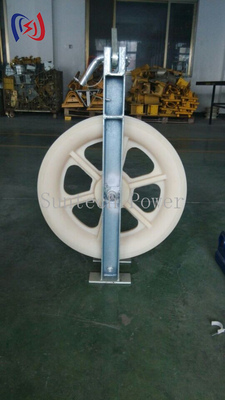

High Quality 508mm Large Diameter Single Nylon Sheaves Galvanized Conductor Pulley Stringing Block
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
|
10102 |
SHS508 | 3 | 40 | 61 |
Middle:Cast steel sheave Conductor:Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 |
Middle:Cast steel sheave Conductor:Rubber lined aluminium sheave |

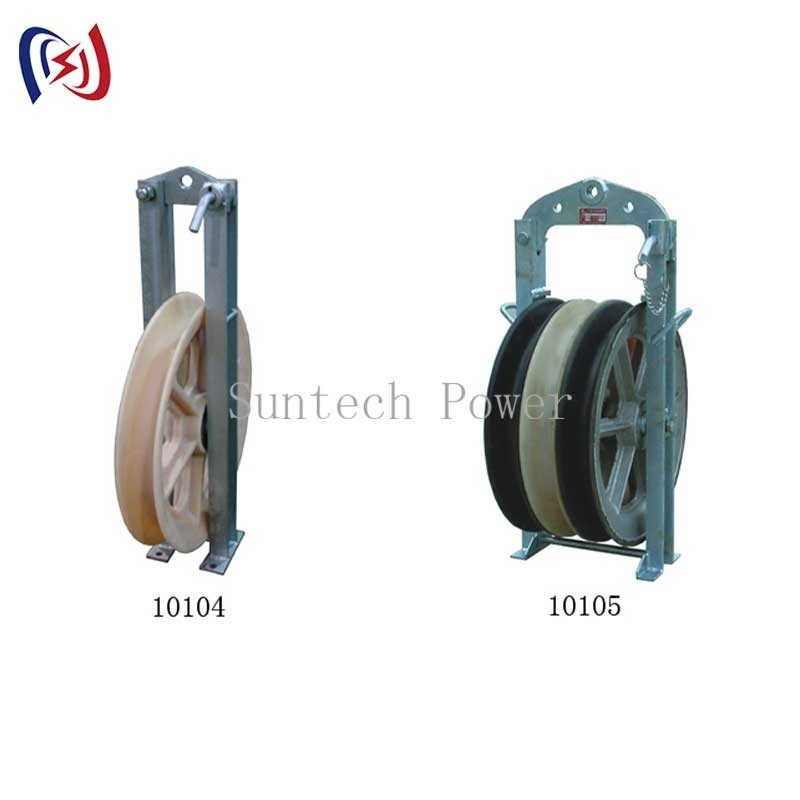

| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle:MC nylon sheave Conductor:Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 |
Middle:MC nylon sheave Conductor:Rubber lined aluminium sheave |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 | MC nylon sheave |
