60KN 120KN Stringing Block Overhead Transmission Line Tools For ACSR1250
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHDN1160 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | 1160 Series Stringing Block | Sheave: | 1/3 |
|---|---|---|---|
| Rated Load: | 60KN/120KN | Weight: | 65KG/220KG |
| Sheave Features: | MC Nylon Sheave/Middle: MC Nylon Sheave Conductor: MC Nylon With Rubber Liner | Explain: | Maximum Suitable Conductor ACSR1250 |
| Warranty: | 1 Year | ||
| Highlight: | 60KN large cable pulleys,120KN large cable pulleys,60KN wire rope pulley |
||
Product Description

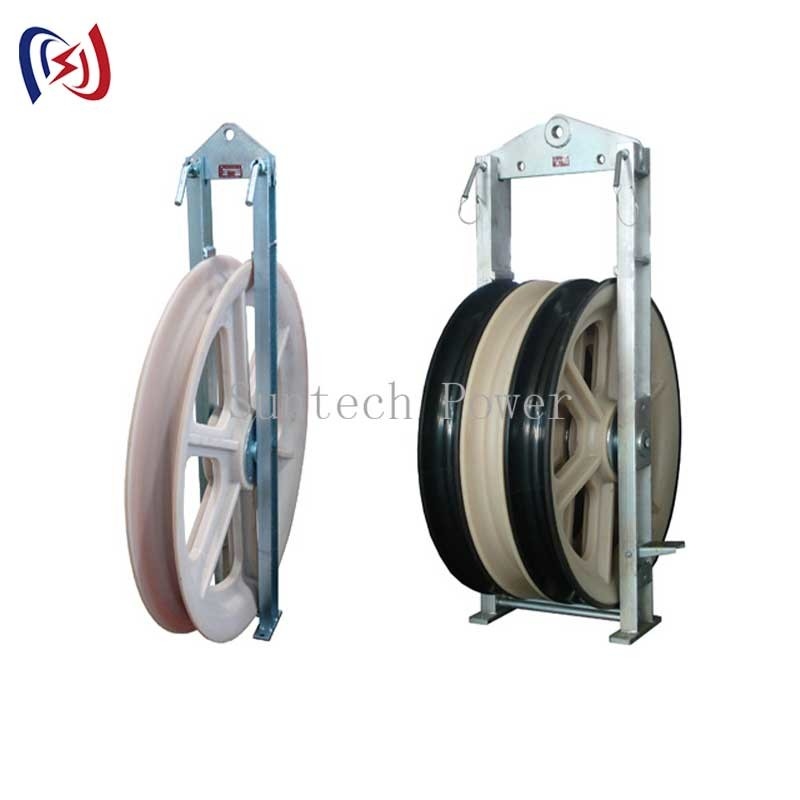

1160 Series Stringing Block Overhead Transmission Line Tools for ACSR1250
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Explain:Maximum suitable conductor ACSR1250
Sheave dimension for conductor(outside diameter*root diameter*sheave with)Φ1160*Φ1000*150(mm)
Sheave dimension for steel wire rope(outside diameter*root diameter*sheave width)Φ1160*Φ1000*130(mm)
Strengthening type three sheave,cast steel sheave for middle sheave
| Item No. | Model | Sheave | Rated Load(KN) | Weight(KG) | Sheave Features |
| 10168-1 | SHDN1160 | 1 | 60 | 65 | MC nylon sheave |
| 10168-2 | SHSQN1160 | 3 | 120 | 220 |
Middle:MC Nylon sheave Conductor:MC Nylon with rubber liner |
