1040 Series Large Diameter Rope Pulley Customized Overhead Transmission Line Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHDN1040 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | 1040 Series Stringing Block | Sheave: | 1/3/5 |
|---|---|---|---|
| Rated Load: | 50-200KN | Weight: | 62-330KG |
| Sheave Features: | MC Nylon Or Middle: MC Nylon Sheave Conductor: Rubber Lined MC Nylon Sheave | Warranty: | 1 Year |
| Explain: | Maximum Suitable Conductor ACSR1120 | ||
| Highlight: | Large Diameter Rope Pulley Customized,1040 Series Large Diameter Rope Pulley,330KG nylon rope sheaves |
||
Product Description
1040 Series Stringing Block Customized Overhead Transmission Line Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Explain:
Maximum suitable conductor ACSR1120;
Sheave dimension (outside diameter*root diameter * sheave width)1040*900*125(mm)
The standard type is full glue for wire wheel. if half glue is needed, the contract is indicted.

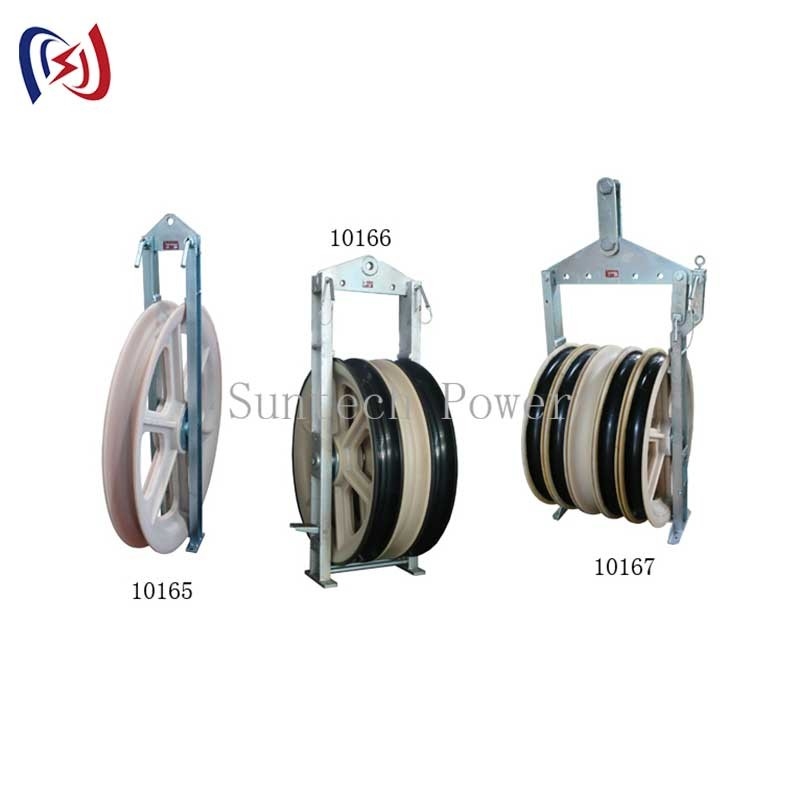

| Item No. | Model | Rated Load | Weight | sheave | Sheave Features |
| 10165 | SHDN1040 | 50 | 62 | 1 | MC nylon sheave |
| 10166 | SHSQN1040 | 100 | 200 | 3 |
Middle: MC nylon sheave Conductor: rubber lined MC nylon Sheave |
| 10167 | SHWQN1040 | 200 | 330 | 5 |
