822 Series Large Diameter Rope Pulley Stringing Cable Blocks Customized Dimension High Load Capacity
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHDN822 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | 822 Series Stringing Block | Sheave: | 1/3/5/7/9 |
|---|---|---|---|
| Rated Load: | 30-150KN | Weight: | 40-445KG |
| Sheave Features: | MC Nylon Sheave Or Middle:case Steel Sheave Conductor: MC Nylon Sheave | Explain: | Maximum Suitable Conductor ACSR630 |
| Highlight: | OEM Large Diameter Rope Pulley,822 Series Large Diameter Rope Pulley,cable blocks High Load Capacity |
||
Product Description

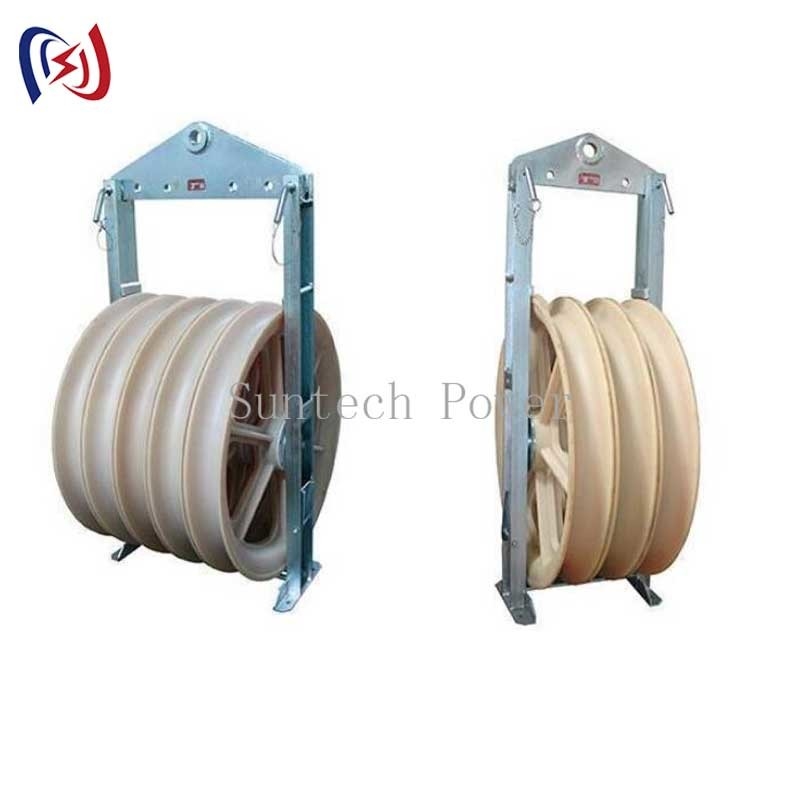

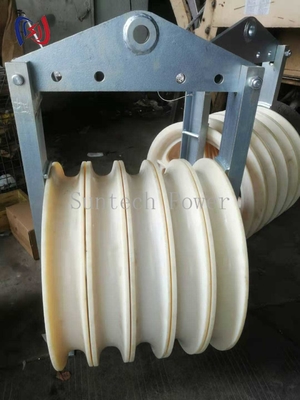

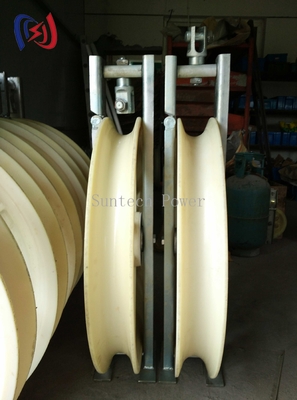

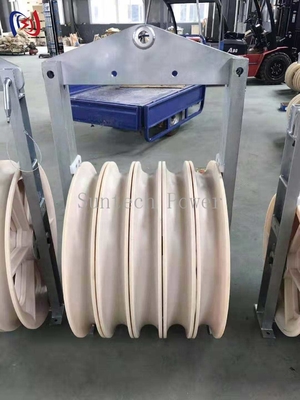

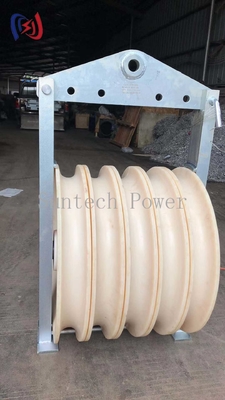

822 Series Stringing Block Overhead Transmission Line Tools with Customized Sheave Dimension and High Load Capacity
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
1.Maximum suitable conductor ACSR630.
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110
3.Rubber lined MC nylon sheave for conductor can be customized.
822mmTechnical Parameters
| Item Number | Model | Number of Sheave | Rated Load(KN) | Weight(kg) | Sheave Features |
| 10141 | SHDN822 | 1 | 30 | 40 | MC nylon sheave |
| 10142 | SHSQN822 | 3 | 60 | 118 | MC nylon sheave |
| 10143 | SHWQN822 | 5 | 120 | 180 | MC nylon sheave |
| 10146A | SHWQQN822 | 7 | 120 | 250 | MC nylon sheave |
| 10146 | SHQ822 | 7 | 120 | 285 | Middle:cast steel sheave |
| 10148 | SHJ822 | 9 | 150 | 445 | Conductor:MC nylon sheave |
| 10141A | SHDL822 | 1 | 30 | 45 |
Aluminum Sheave |
| 10141B | SHDLJ822 | 1 | 30 | 48 | Rubber lined aluminium sheave |
