High Speed Turning Block Single Steel Sheave Conductor Fiber Optic Stringing Blocks
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | THZ1-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | High Speed Turning Block | Item No.: | 12141-12143 |
|---|---|---|---|
| Rated Load: | 50-300KN | Sheave Diameter: | 308-916mm |
| Sheave Width: | 75-110mm | Weight: | 22-200KG |
| Warranty: | 1 Year | Uses: | Apply To Steel Wire Rope Traction And Turning. It Can Pass Through Steel Wire Rope Connector; The Maximum Allowable Speed Of Hauling Rope Is 80m/min. |
| Highlight: | High Speed Turning Block,Turning Block Steel Sheave,fConductor iber optic stringing blocks |
||
Product Description

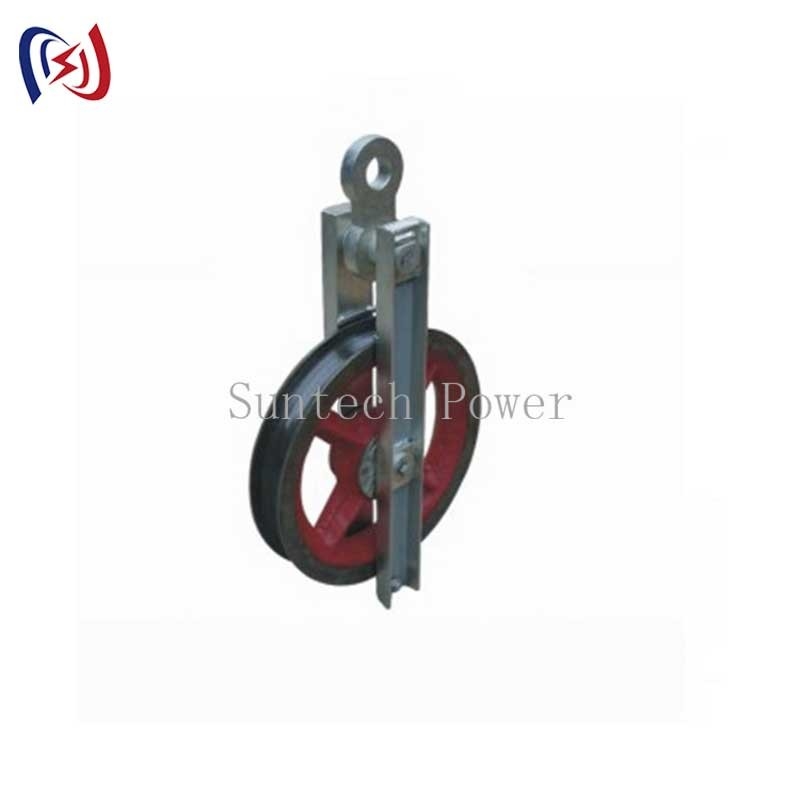

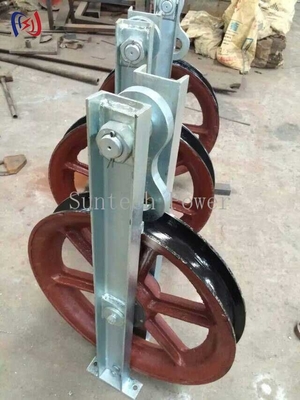

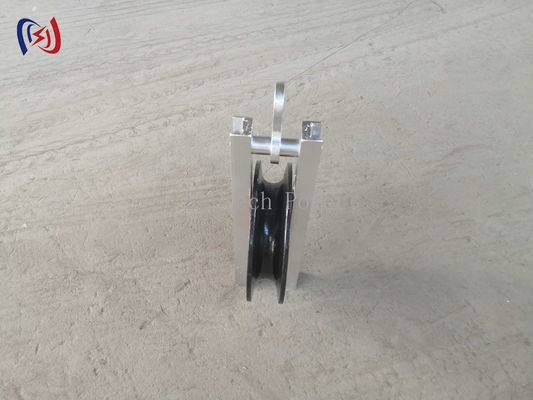

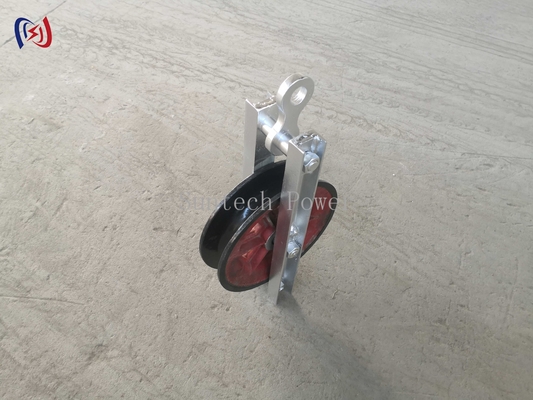

High Speed Turning Block Single Steel Sheave Conductor Stringing Blocks
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Apply to steel wire rope traction and turning. It can pass through steel wire rope connector;
The maximum allowable speed of hauling rope is 80m/min.
| Item number | Model | Rated Load(KN) | Sheave Diameter(mm) | Sheave Width(mm) | Weight(kg) | Remark |
| 12141 | THZ1-5 | 50 | Φ308 | 75 | 22 | Steel Sheave |
| 12141A | THZ1-8 | 80 | Φ308 | 110 | 30 | |
| 12142 | THZ1-16 | 160 | Φ600 | 110 | 115 | |
| 12143 | THZ1-30 | 300 | Φ916 | 110/125 | 200 |
