80KN Aluminum Alloy Come Along Clamp Conductor Gripper For Transmission Line
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SKL-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Aluminum Alloy Conductor Gripper | Item No.: | 13221-13229A |
|---|---|---|---|
| Rated Load: | 7-80KN | Applicable Conductor: | LGJ25-70~LGJ1120 |
| Max.Open: | 14-48mm | Weight: | 1-18KG |
| Warranty: | 1 Year | Uses: | Apply To Adjusting The Sag And Tensioning The Conductor Wire In Power Lines Construction. |
| Feature: | Product Is Forged Of High Strength Aluminum Alloy With Small Size And Light Weight | ||
| Highlight: | 80KN Come Along Clamp,Aluminum Alloy Come Along Clamp,Conductor Gripper For Transmission Line |
||
Product Description
Aluminum Alloy Conductor Gripper Come Along Clamp For Transmission Line
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Feature: product is forged of high strength aluminum alloy with small size and light weight
Configuration: Apply to adjusting the sag and tensioning the conductor wire in power lines construction.
Quick Information:
1) Aluminum alloy conductor gripper

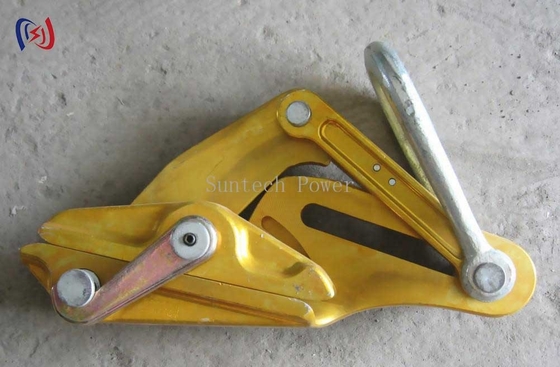

2) two types, one is with hook, pls find the photos
3) Apply for LGJ300-400 conductor
4) Max open 32mm
5) Donghuan brand
6) Transmission line stringing tools and accessories.
Aluminum Alloy Conductor Gripper Products
| Item number | Model | (KN) | Applicable Conductor | (MM) | (KG) |
| Rated Load | Max Open | Weight | |||
| 13221 | SKL-7 | 7 | LGJ25-70 | 14 | 1 |
| 13222 | SKL-15 | 15 | LGJ95-120 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | LGJ150-240 | 24 | 3 |
| 13224 | SKL-40 | 40 | LGJ300-400 | 32 | 4 |
| 13225A | SKL-50C | 50 | LGJ500-630 | 36 | 6.6 |
| 13224A | SKL-40A | 40 | LGJ400 | 32 | 4.3 |
| 13225 | SKL-50A | 50 | LGJ500 | 34 | 7 |
| 13226 | SKL-50B | 50 | LGJ630 | 36 | 7.3 |
| 13227 | SKL-60 | 60 | LGJ720 | 38 | 9.2 |
| 13228 | SKL-70 | 70 | LGJ900 | 42 | 14 |
| 13229 | SKL-80 | 80 | LGJ1000 | 45 | 18 |
| 13229A | SKL-80A | 80 | LGJ1120 | 48 | 18 |
