Bolt Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp For Conductor
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SKGF-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Optical Cable Wire Gripper | Item No.: | 20101-20104 |
|---|---|---|---|
| Rated Load: | 20-100KN | Applicable Anti Twist Steel Rope: | 7-24mm |
| Weight: | 5.6-20KG | Warranty: | 1 Year |
| Uses: | Apply To OPGW Construction | Feature: | The Main Body Is Made Of Aluminum Alloy And It Can Protect The OPGW Effectivelv. |
| Highlight: | Bolt Steel Rope Gripper,Anti Twist Steel Rope Gripper,Stringing come along clamp for conductor |
||
Product Description

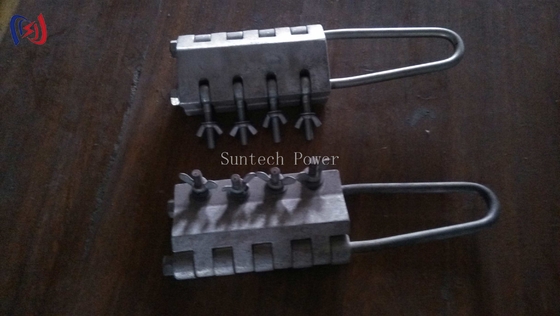

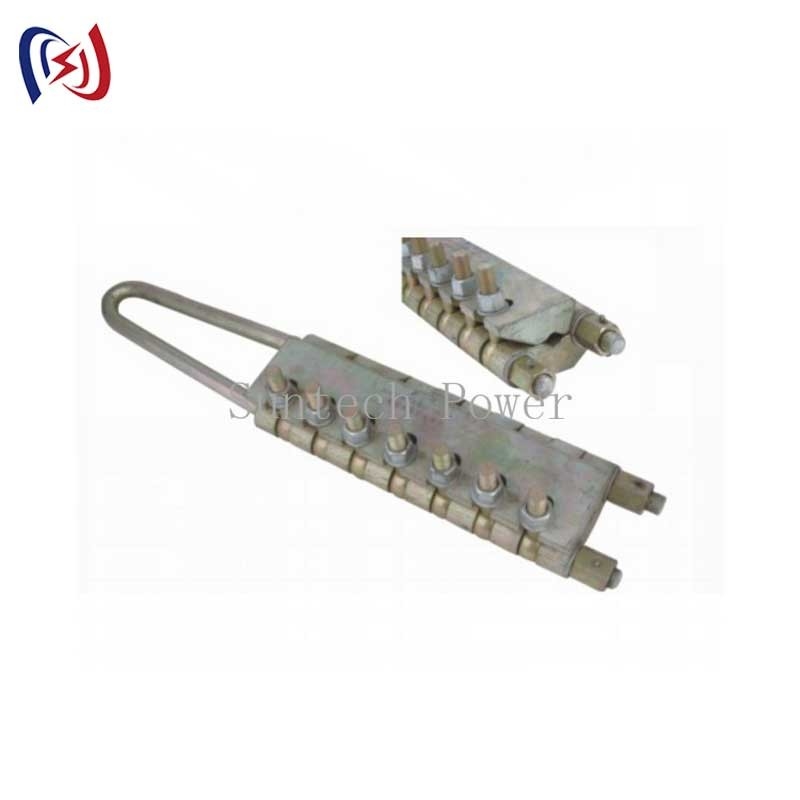

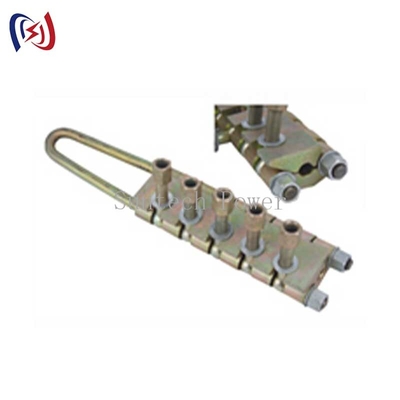

Bolt Type Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Feature
1. The body of the clamp is fabricated from high tensile steel.
2. The two halves are hinged to each other on one side and the other side High tensile bolts are provided along with the nuts.
2. The two halves are hinged to each other on one side and the other side High tensile bolts are provided along with the nuts.
Applicatoin
The clamp is suitable to grip specific round strand wire rope.
Apply to anti-twising steel rope.
| Item number | Model | Rated Load(KN) | Applicable Anti Twist Steel Rope | Weight(KG) |
| 13171 | SKGF-2 | 20 | 7,9 | 5.6 |
| 13172 | SKGF-3 | 30 | 11 | 5.6 |
| 13173 | SKGF-5 | 50 | 13,15 | 18 |
| 13174 | SKGF-6 | 60 | 16,18 | 18 |
| 13175 | SKGF-8 | 80 | 20 | 20 |
| 13176 | SKGF-10 | 100 | 22,24 | 20 |
