Multi Segment Conductor Come Along Clamp 150N.M Wire Rope Gripper Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SK35DP1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Multi-segment Type Conductor Wire Grip | Item No.: | 13230L1-13231L |
|---|---|---|---|
| Rated Load: | 90-150KN | Applicable Conductor Diameter: | 25-50mm |
| Tightening Torque: | 150N.m | Number Of Slices: | 9/11/13/15 |
| Weight: | 17-26KG | Warranty: | 1 Year |
| Uses: | Apply To Large Cross-section Conductor Under High Tension And Long Span Construction Situation. | Explain: | Wire Diameter Is Need Indicated When Customer Place Order. |
| Highlight: | Multi SegmentCome Along Clamp,Conductor Come Along Clamp,150N.m wire rope gripper |
||
Product Description

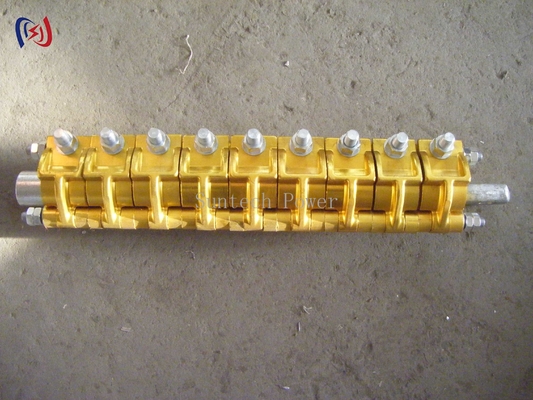

Multi Segment Type Conductor Wire Gripper Come Along Clamp Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Configuration: Apply to large cross-section conductor under high tension and long span construction situation.
Feature: wire diameter is need indicated when customer place order
Quick Information:
1) Model SK50DP2
2) Rated laod 150KN
3) Appliable comductor diameter 50max
4) Tightening torque: 150 N.m
5) 26kg weight
6) Suntech brand, come along clamp
| Item number | Model | Rated Load(KN) |
Applicable Conductor Diameter(MM) |
(N.m)Tightening Torque |
(KG) Weight |
| 13230L | SK35DP2 | 120 | Φ35(MAX) | 150 | 20 |
| 13231L | SK50DP2 | 150 | Φ50(MAX) | 150 | 26 |
