2.5KG - 10KG Hook Steel Turnbuckle Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SJS-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Dual-Hook Steel Turnbuckle | Item No.: | 14111-14117 |
|---|---|---|---|
| Rated Load: | 5-100KN | Max Center Distance: | 800-1740mm |
| Adjustable Distance: | 250-600mm | Weight: | 2.5-10KG |
| Warranty: | 1 Year | ||
| Highlight: | 2.5KG Transmission Line Stringing Tools,10KG Hook Steel Turnbuckle,2.5KG Hook Steel Turnbuckle |
||
Product Description

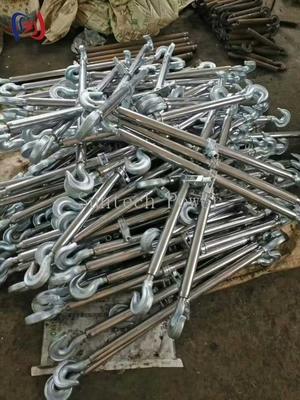

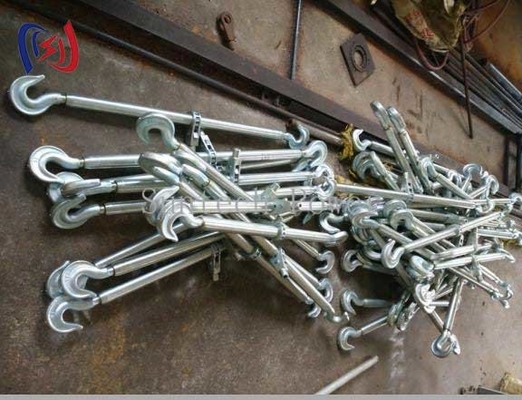

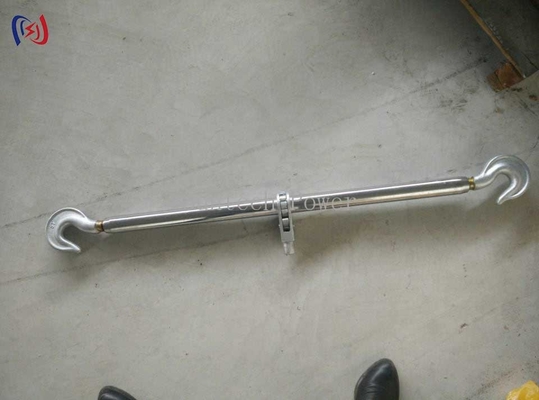

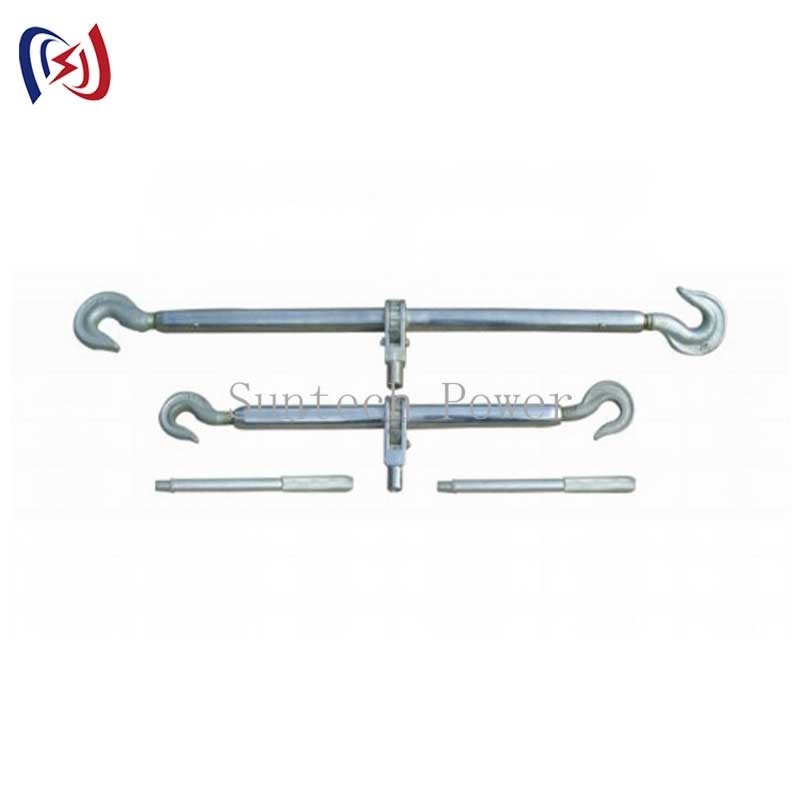

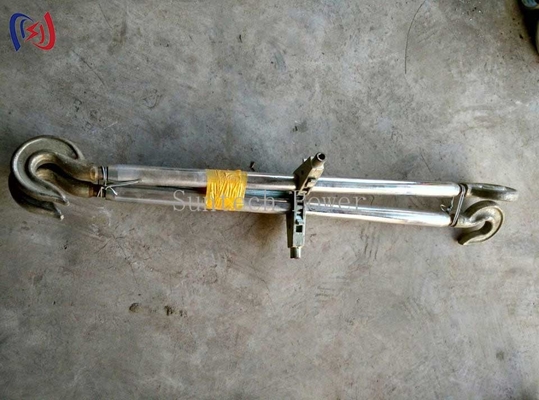

Dual Hook Steel Turnbuckle For Power Transmission Transmission Line Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Cooperate with lead wire stick wire implement, traction and tighten up lead wire. 2.Tightening range is big, practicability strong.
High Quality Model SJS Double Hook Turnbuckle is used in power transmission construction, telecommunications engineering, tighten the wire. Apply to tightening conductor,steel wire rope or steel standed wire on installing stay wire and replacing insulator string.
| Item number | Model | Rated load (kN) | Maximum center distance | Adjustable distance (mm) | Weight (kg) | Remark |
| 14111 | SJS-0.5 | 5 | 800 | 300 | 2.5 | Steel |
| 14112 | SJS-1 | 10 | 860 | 250 | 3.5 | |
| 14113 | SJS-2 | 20 | 1050 | 340 | 4 | |
| 14114 | SJS-3 | 30 | 1350 | 470 | 6 | |
| 14115 | SJS-5 | 50 | 1440 | 510 | 8 | |
| 14116 | SJS-8 | 80 | 1670 | 560 | 8.5 | |
| 14117 | SJS-10 | 100 | 1740 | 600 | 10 |
