FRP Handle Chain Lifting Hoist Insulated Tightener Non Conductive
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SJJY-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Insulated Tightener | Item No.: | 14105-14107 |
|---|---|---|---|
| Rated Lifting/ Pulling: | 10/5KG-20/10KG | Webbing Thickness X Length: | 5x2300-6x2300 |
| Min Length: | 410-480mm | Max Length: | 1210-1400mm |
| Weight: | 3.3-4.5KG | Warranty: | 1 Year |
| Highlight: | FRP Handle Chain Lifting Hoist,Chain Lifting Hoist Insulated Tightener,Insulated stringing tools for transmission lines |
||
Product Description

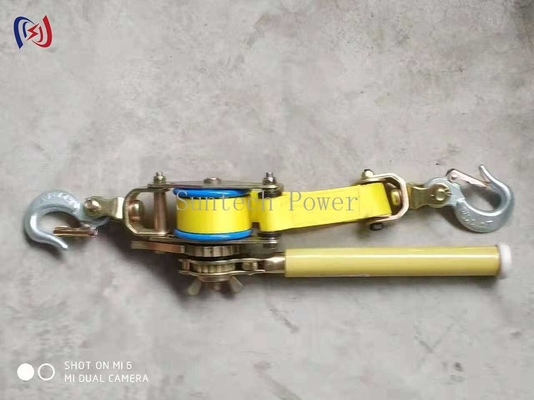

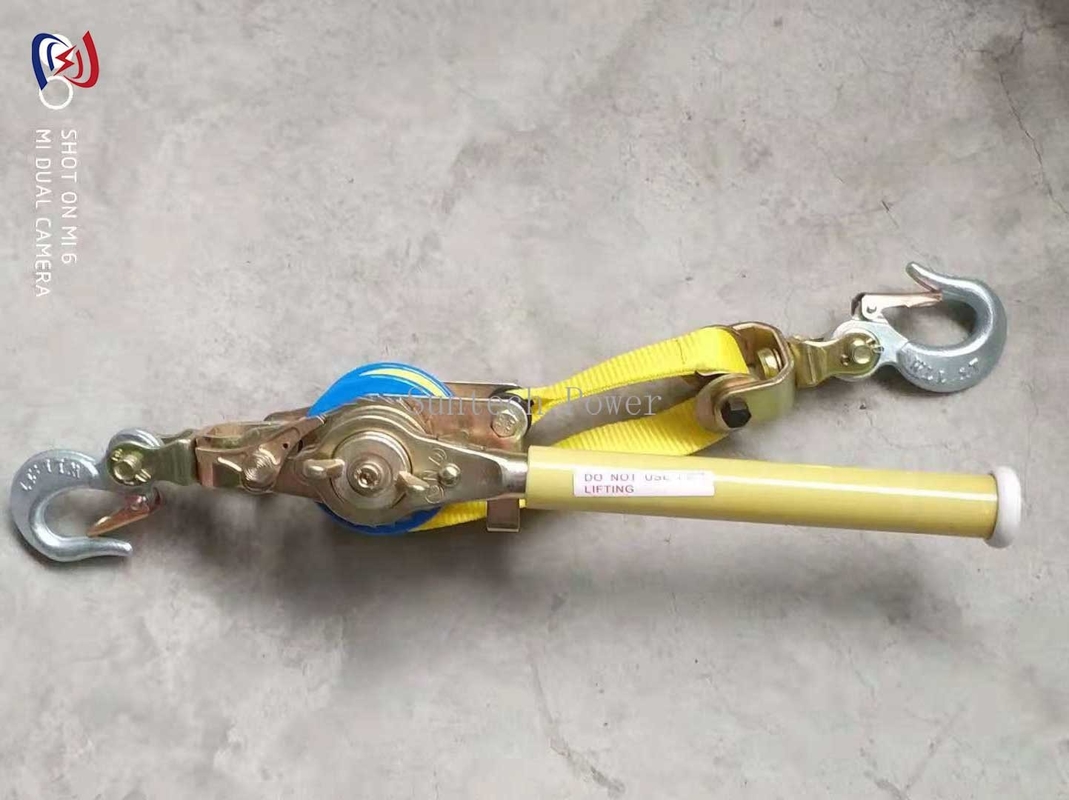

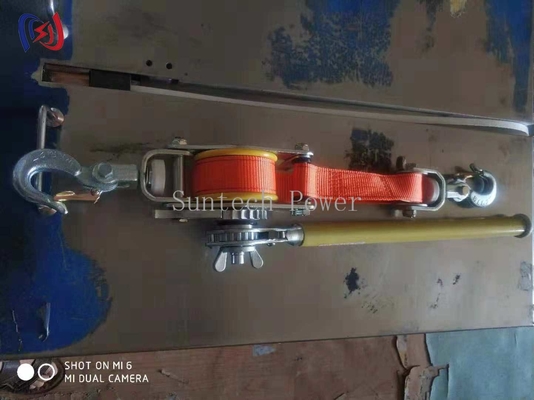

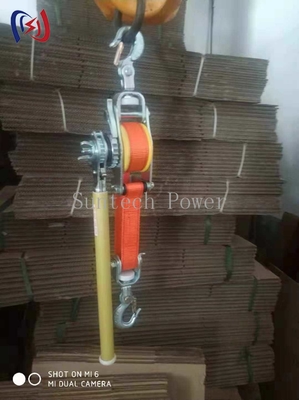

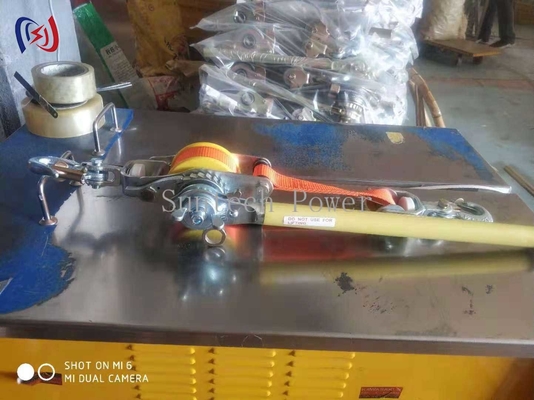

Insulated Tightener Non Conductive FRP Handle Chain Lifting Hoist For Live Line Operation
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Explain:The Insulated tightener uses non-conductive FRP insulated handle and soft corrosion-resistant and high tension woven belt to replace the steel wire rope.It is used for wire tightening during live line operation, and the voltage resistance is 15kV (3 minutes).
| Item No. | Model | Rated Lifting/Pulling | Webbing thickness*length(mm) | Min length(mm) | Max length(mm) | Weight(kg) |
| 14105 | SJJY-1 | 10/5 | 5*2300 | 410 | 1210 | 3.3 |
| 14106 | SJJY-1.5 | 15/7.5 | 6*2300 | 480 | 1400 | 4.2 |
| 14107 | SJJY-2 | 20/10 | 6*2300 | 480 | 1400 | 4.5 |
