KYQ Quick Hydraulic Pliers 100KN 120KN Hydraulic Wire Crimper
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | KYQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Integeal Hydraulic Crimping Pliers | Item No.: | 16185-16186A |
|---|---|---|---|
| Crimping Force: | 100/ 120KN | Crimping Range: | 16-400mm2 |
| Crimping Type: | Hexagon Crimping | Dies: | 16-400mm2 |
| Stroke: | 17/ 32mm | Length: | Approx. 500mm/ Approx.540mm |
| Weight: | 7.7/ 9.5KG | Package: | Plastic Box |
| Warranty: | 1 Year | ||
| Highlight: | kyq quick hydraulic pliers,quick hydraulic pliers 100kn,120kn hydraulic wire crimper |
||
Product Description

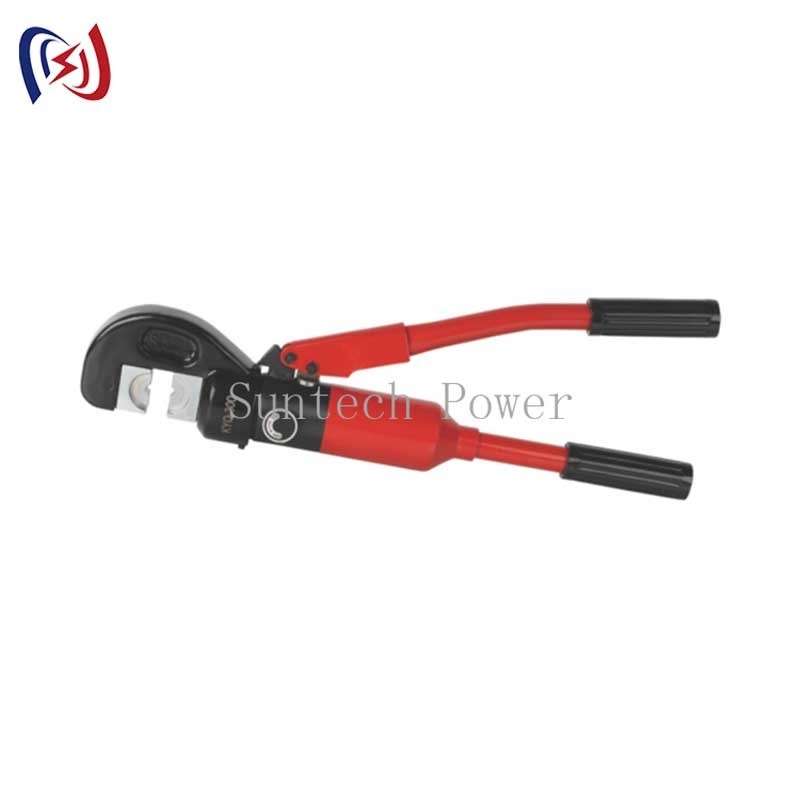

KYQ Integral Hydraulic Crimping Pliers Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Pre-Operation Set-Up
2. Rotate the yoke fully counter clockwise to bottom out the adapter seat.
Hydraulic Crimping Pliers Specification
| Item number | 16185 | 16186 | 16186A |
| Model | KYQ-400 | KYQ-300 | KYQ-300C |
|
Crimping force |
120KN | 100KN | 100KN |
|
Crimping range |
16-400mm² | 16-300mm² | 16-300mm² |
| type | hexagon crimping | hexagon crimping | hexagon crimping |
| Dies |
50,70,95,120,150, 185,240,300,400mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
| Stroke | 32mm | 17mm | 17mm |
| Length | approx.540mm | approx.500mm | approx.500mm |
| Weight(KG) |
approx.N.W6.7KG G.W9.5KG |
approx.N.W4.9KG G.W7.7KG |
approx.N.W4.9KG G.W7.7KG |
| Package | plastic box | plastic box | plastic box |
