EP Integral Hydraulic Crimping Tools 80 - 100KN Hydraulic Crimping Pliers
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | EP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Integral Hydraulic Crimping Pliers | Item No.: | 16181-16183 |
|---|---|---|---|
| Crimping Force: | 80-100KN | Crimpnig Range: | 10-300mm2 |
| Crimping Type: | Hexagon Crimping | Dies: | 10-300mm2 |
| Stroke: | 16/ 20mm | Length: | Approx.410mm/ Approx.470mm |
| Weight: | 4.5-6.5KG | Package: | Plastic Box |
| Warranty: | 1 Year | ||
| Highlight: | EP Integral Hydraulic Crimping Tools,Hydraulic Crimping Tools 100KN 80KN,100KN hydraulic crimping pliers |
||
Product Description

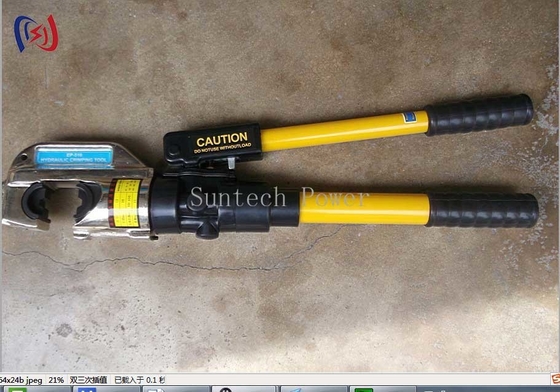

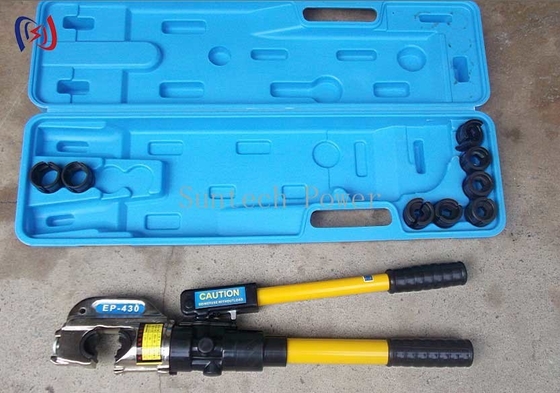

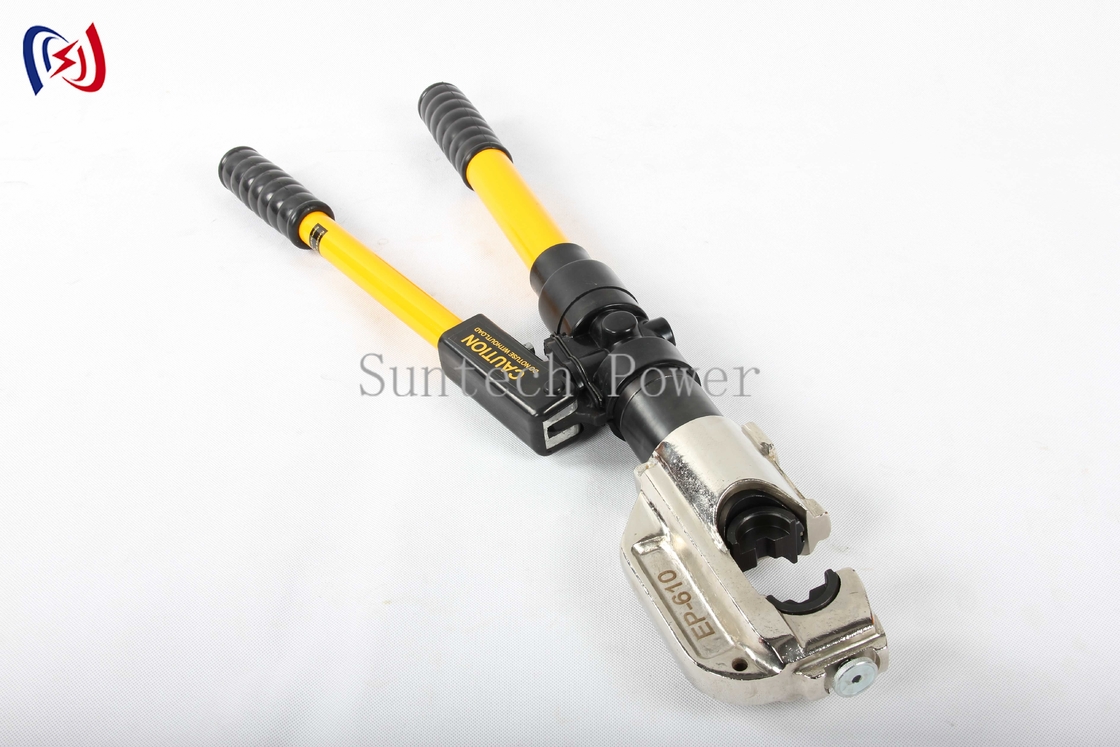

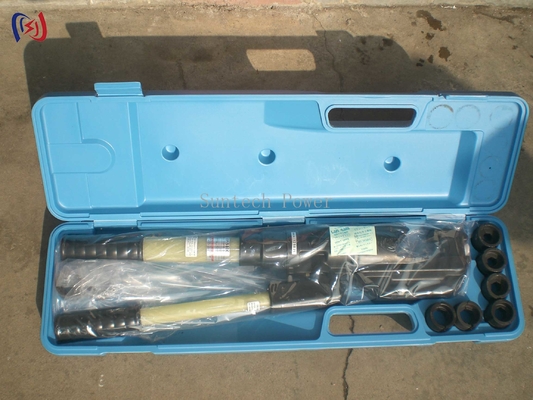

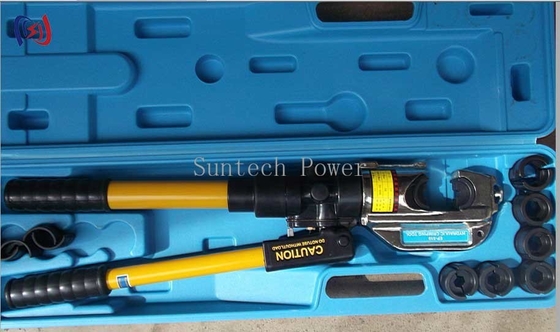

EP Integral Hydraulic Crimping Pliers Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
1. The tool has a double speed action,a fast advancing speed for rapid approach of the blades to the connector and a slower more powerful speed for crimping.
2. For easy and comfort operation, the tool head can rotate 180 degress.
3. The built-in safety valve will by-pass the oil supply when the maximum pressure is reached, and the
pressure release system can easily be operated at any stage of compression
4. With interchangeable dies and safety system inside.
Hydraulic Crimping Pliers Feature;
1. Open the working clamp head, 350 ° free rotation
2. Two-stage hydraulic system to improve work efficiency and more effort
3. Built-in safety valve to prevent overpressure
4. Press the manual release button
5. Press release halfway, quick reset
| Item number | 16199 | 16200 | 16200A |
| Model | EP-430 | EP-510 | EP-610 |
|
Crimping force |
120KN | 130KN | 130KN |
|
Crimping range |
16-400mm² | 16-400mm² | 16-400mm² |
| type | hexagon crimping | hexagon crimping | hexagon crimping |
| Dies |
50,70,95,120,150, 185,240,400mm² |
50,70,95,120,150, 185,240,400mm² |
50,70,95,120,150, 185,240,400mm² |
| Stroke | 32mm | 38mm | 42mm |
| Oil capacity(CC) | 145cc | 200cc | 200cc |
| Length | approx.770mm | approx.780mm | approx.800mm |
| Weight(KG) |
approx.N.W7.1KG G.W10.7KG |
approx.N.W7.4KG G.W11KG |
approx.N.W8.5KG G.W12.1KG |
| Package | plastic box | plastic box | plastic box |
