HT Integral Hydraulic Crimping Pliers 16mm2 - 400mm2 Hydraulic Wire Crimping Tool
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | HT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Integral Hydraulic Crimping Pliers | Item No.: | 16210/ 16210A |
|---|---|---|---|
| Crimping Force: | 60/ 120KN | Crimping Range: | 16-400mm2 |
| Crimping Type: | Texagon Crimping | Dies: | 16-400m2 |
| Stroke: | 17/32mm | Length: | Approx.460mm/ Approx.552mm |
| Weight: | 7.1/ 10.2KG | Package: | Aluminum Alloy Box |
| Warranty: | 1 Year | ||
| Highlight: | integral hydraulic crimping pliers,hydraulic crimping pliers 16mm2,400mm2 hydraulic wire crimping tool |
||
Product Description

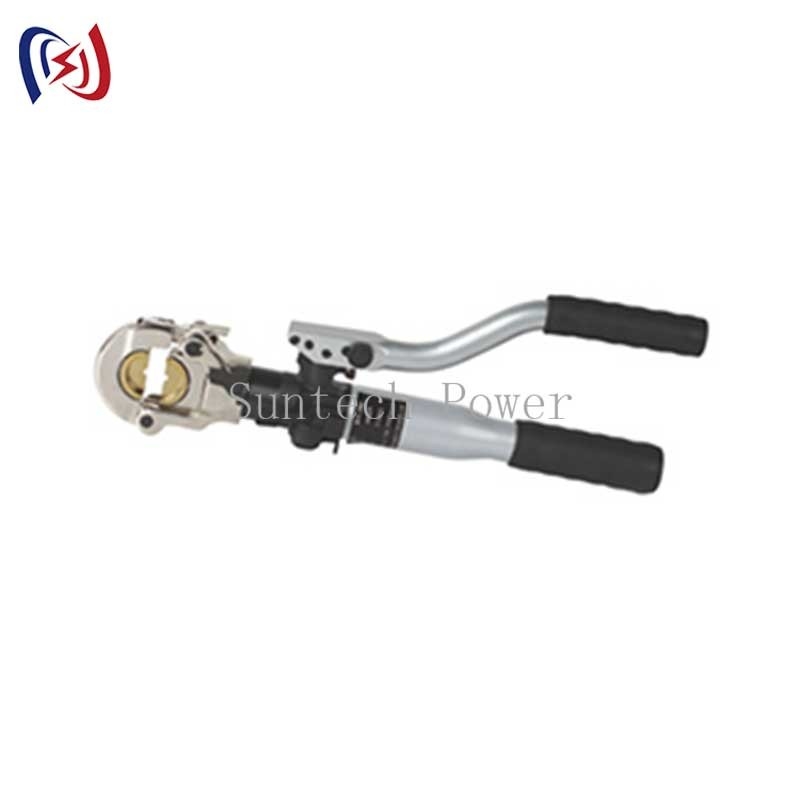

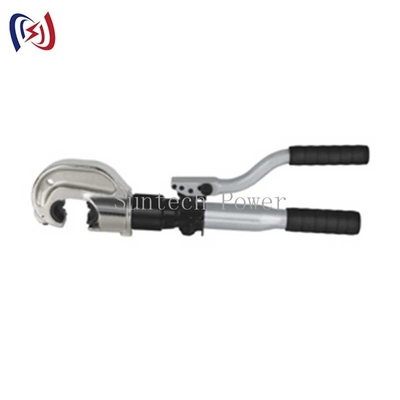

HT Integral Hydraulic Crimping Pliers Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
crimping range:50-400mm2
crimping force:20t
crimping type:hexagon crimping
stroke:25mm
length:approx.540mm
weight:approx.8.30kg
package:plastic box or steel case
weight of case :approx.4.00kg
accessories:
crimping dies:50,70,95,120,150,185,240,300,400mm2
Hydraulic Crimping Pliers Specification
| Item number | 16210 | 16210A |
| Model | HT-300 | HT-400 |
|
Crimping force |
60KN | 120KN |
|
Crimping range |
16-300mm² | 16-400mm² |
| type | hexagon crimping | hexagon crimping |
| Dies |
50 16,25,35,50,70,95,120, 150,185,240,300mm² |
50,70,95,120,150, 185,240,300,400mm² |
| Stroke | 17mm | 32mm |
| Length | approx.460mm | approx.552mm |
| Weight(KG) |
approx.N.W3.7KG G.W7.1KG |
approx.N.W6.8KG G.W10.2KG |
| Package | aluminum alloy box | aluminum alloy box |
