Hand Operated Hydraulic Perforator 16mm - 114mm Hydraulic Crimping Tool
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SYK-8A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Perforator | Item No.: | 06241-06241B |
|---|---|---|---|
| Punching Range: | 16-114mm | Max Thickness Of Plate: | 3.5mm Mild Steel |
| Punching Force: | 100/ 150KN | Stroke: | 25mm |
| Weight: | 9.5-20KG | Package: | Plastic Box/ Steel Case |
| Round Type Dies: | 16-114mm | Warranty: | 1 Year |
| Highlight: | Hand Operated Hydraulic Perforator,Hydraulic Perforator 16mm,114mm Hydraulic Crimping Tools |
||
Product Description

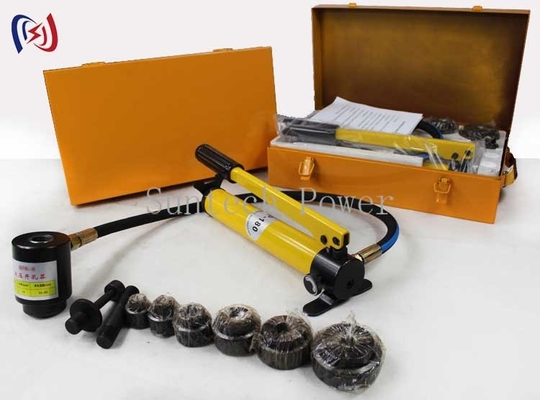

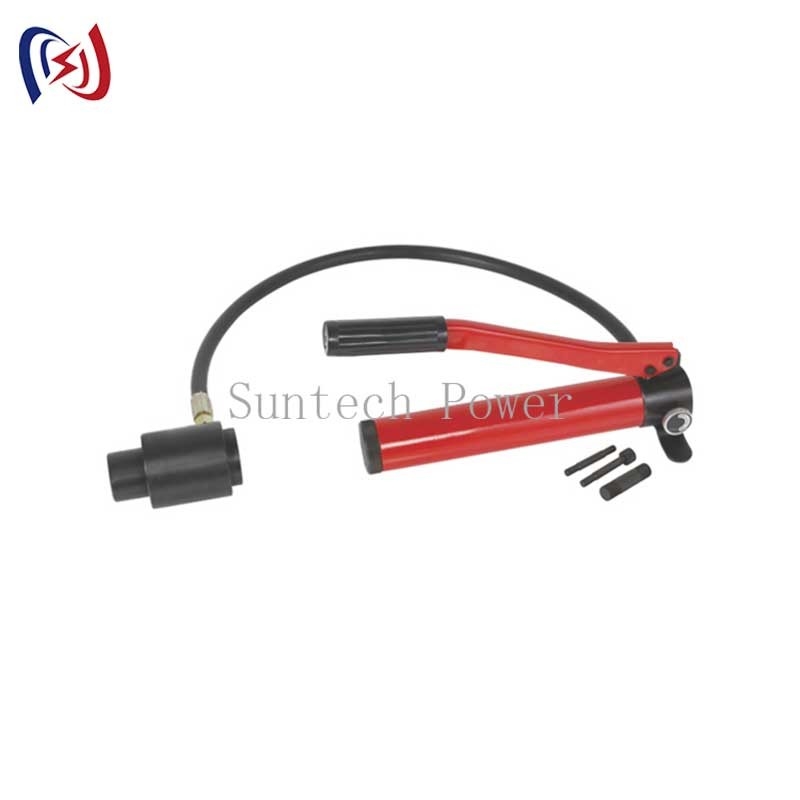

Hydraulic Perforator Hand Operated Hydraulic Crimping Tool
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Hydraulic Punching Tools Uses:
For the panel of the switch box and so on,the surfaceof the paint will not be damaged after the perforation.
Explain:
The mold size can be customized according to the requirements of the user.
Hydraulic Punching Tools Technical Data
|
Item number
|
06241A
|
06241
|
06241B
|
06241C
|
06241D
|
|
Mode
|
SYK-8A
|
SYK-8B
|
SYK-15
|
SYK-15A
|
SYK-15B
|
|
Punching range
|
Φ16mm- Φ51mm(5)
|
Φ22mm- Φ60mm(5)
|
Φ63mm- Φ114mm(5)
|
Φ63mm- Φ114mm(6)
|
Φ16mm- Φ114mm(18)
|
|
Max thickness of plate
|
3.5mm mild steel
|
3.5mm mild steel
|
3.5mm mild steel
|
3.5mm mild steel
|
3.5mm mild steel
|
|
Punching force
|
100KN
|
100KN
|
150KN
|
150KN
|
150KN
|
|
Stroke
|
25mm
|
25mm
|
25mm
|
25mm
|
25mm
|
|
Weight
|
approx.N.W5.6KG G.W9.25KG
|
approx.N.W5.6KG G.W9.25KG
|
approx.N.W16KG
G.W21KG |
approx.N.W18KG
G.W23KG |
approx.N.W22KG
G.W27KG |
|
Package
|
plastic box
|
plastic box
|
steel case
|
steel case
|
steel case
|
|
Round type dies
|
Φ16mm,Φ20mm,Φ26.2mm,Φ35.2mm,Φ39mm,Φ51mm
|
Φ22mm,Φ27.5mm,Φ34mm, Φ43mm,Φ49mm,Φ60mm
|
Φ63mm,Φ76mm,Φ90mm,Φ101mm,Φ114mm
|
Φ63mm,Φ76mm,Φ80mm,Φ90mm,Φ101mm,Φ114mm
|
Φ16mm,Φ20mm,------Φ101mm,Φ114m
|
