8.9KG -13KG Hydraulic Wire Cutter Manual Hydraulic Crimping Tool 100KN
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | CC-50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Integral Hydraulic Cable Cutter | Item No.: | 21447A-21447F |
|---|---|---|---|
| Crimping Force: | 70-100KN | Stroke: | 40-85mm |
| Height: | Approx.620mm-Approx.820mm | Weight: | 8.9-13KG |
| Package: | Plastic Box/ Steel Case | Warranty: | 1 Year |
| Highlight: | manual hydraulic crimping tool 100kn,100kn hydraulic wire cutter,integral hydraulic wire cutter |
||
Product Description

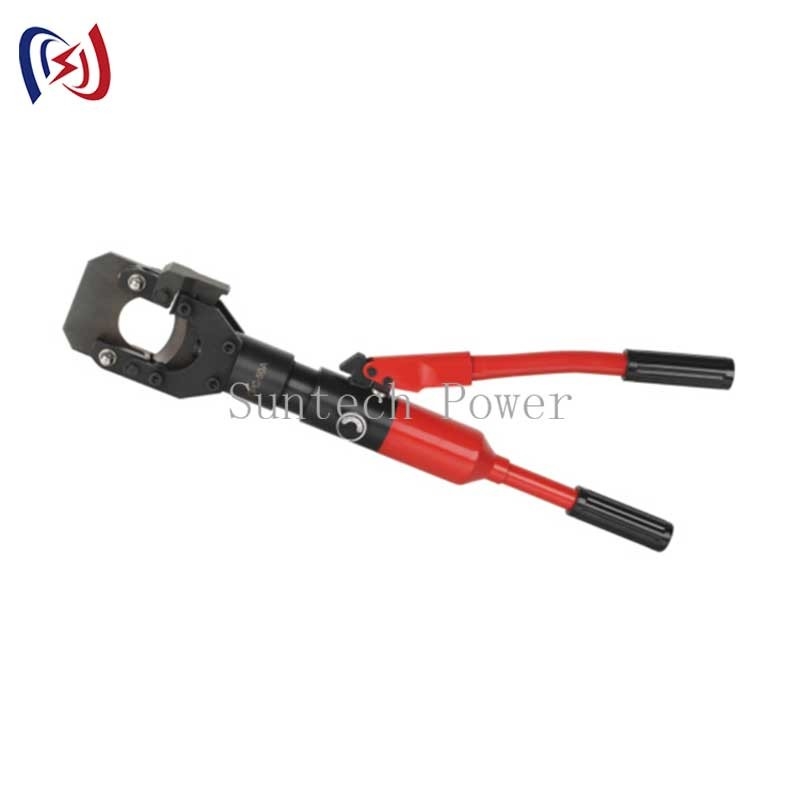

Integral Hydraulic Cable Cutter Hydraulic Crimping Plier
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Hydraulic Cable Cutter Introduction
1.Hand operated hydraulic tool specifically designed to cut copper, aluminium and tel cables having a max overall diameter from 40 to 85mm.
2.The tool features a double speed action: a fast advancing speed for rapid approach of the blades to the cable and a slower more powerful speed for cutting.
3.The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
4.The head can be easily opened to allow the cutting of running cables.
Hydraulic Cable Cutter Technical Data
| Item number | 21447A | 21447B | 21447C |
| Model | CC-50A | CPC-50A | HT-50A |
|
Crimping force |
100KN | 80KN | 70KN |
|
Cutting range |
CU/AL cable Φ50mm max |
steel rope cable Φ18mm max |
steel rope cable Φ15mm max |
|
ACSR cable Φ50mm ma |
steel strand Φ10mm max |
||
|
armored CU/AL cable Φ50mm max |
ACSR cable Φ50mm max |
||
| strand Φ16mm max |
armored CU/AL cable Φ50mm max |
||
| Stroke | 50mm | 50mm | 40mm |
|
Length |
approx.620mm | approx.620mm | approx.660mm |
| Weight(kg) |
approx.N.W6.1KG G.W9.1KG |
approx.N.W6.2KG G.W9.2KG |
approx.N.W6.5KG G.W8.9KG |
| Package | plastic box | plastic box | plastic box |
| Item number | 21447D | 21447E | 21447F |
| Model | CPC-40FR | CPC-50FR | CPC-85FR |
|
Crimping force(KN) |
70KN | 80KN | 80KN |
|
Cutting range |
steel rope cable Φ18mm max |
steel rope cable Φ18mm max |
armored CU/AL cable Φ85mm max |
|
ACSR cable Φ40mm maX |
ACSR cable Φ50mm maX |
||
|
armored CU/AL cable Φ40mm max |
armored CU/AL cable Φ50mm max |
||
| steel
strand Φ16mm max |
strand Φ16mm max | ||
| Stroke | 40mm | 50mm | 85mm |
|
Length |
approx.700mm | approx.710mm | approx.820mm |
|
Weight (KG) |
approx.N.W6KG G.W9KG |
approx.N.W7KG G.W10KG |
approx.N.W9.5KG G.W13KG |
| Package | plastic box | plastic box | steel case |
