Battery Powered Hydraulic Crimping Pliers 60KN - 250KN Hydraulic Terminal Crimper
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | HT-Z1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Battery Powered Hydraulic Crimping PLiers | Item No.: | 16209-16209B |
|---|---|---|---|
| Crimping Force: | 60-250KN | Stroke: | 17-35mm |
| Crimping Range: | 16-400mm2 | Crimp Charge: | 100-320times |
| Crimping Time: | 3-6s | Voltage: | 18V |
| Capacity: | 4Ah | Charging Time: | 2 Hours |
| Weight: | 15/ 17KG | Package: | Plastic Box |
| Warranty: | 1 Year | ||
| Highlight: | hydraulic crimping pliers 60kn,250kn hydraulic terminal crimper,battery powered hydraulic crimping pliers |
||
Product Description

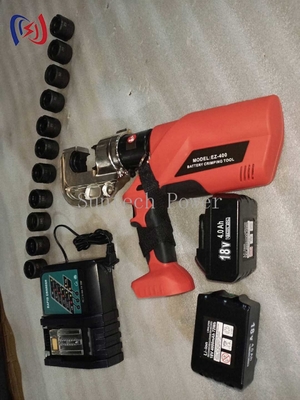

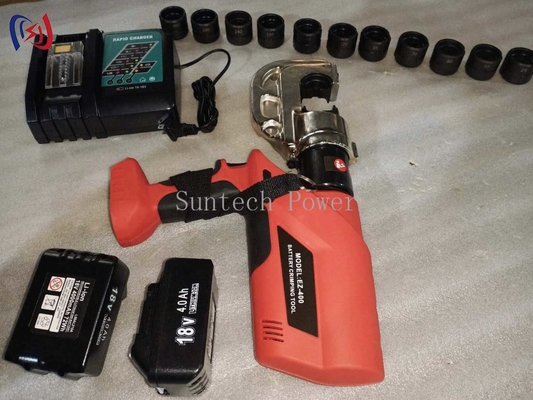

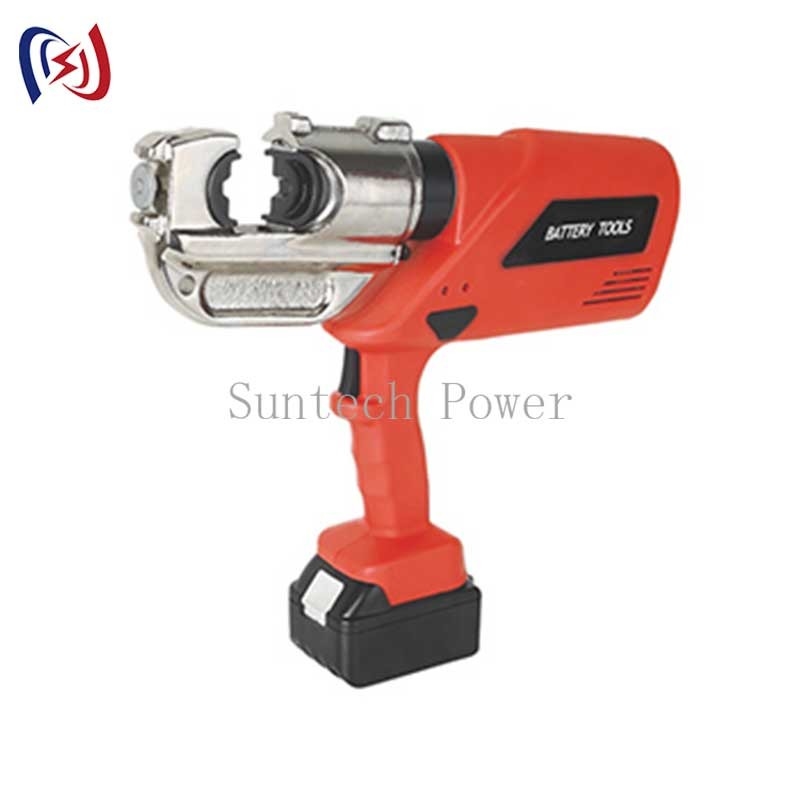

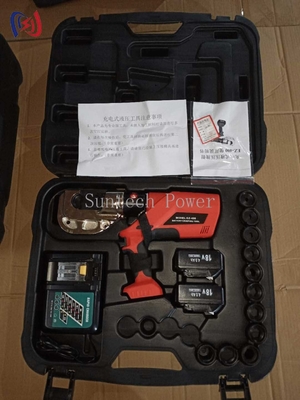

Battery Powered Hydraulic Crimping PLiers Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Hydraulic Crimping Pliers Introduction
Portable battery electrical powered hydraulic crimping tool, crimping pliers is used to compress copper and aluminum terminals.
Hydraulic Crimping Pliers Technical Data
| Item number | 16209A | 16209 |
| Model | HT-Z1 | HT-Z2 |
|
Crimping force(KN) |
60KN | 60KN |
|
Crimping range |
16-400mm² | 16-300mm² |
|
Crimp charge |
250times(CU150mm²) | 320times(CU150mm²) |
|
Crimping cycle |
3s-6s(depend on the size of cable) | 3s-6s(depend on the size of cable) |
| Stroke | 35mm | 17mm |
|
voltage |
18V | 18V |
| Capacity | 3.0Ah | 3.0Ah |
|
Charging time |
2hours | 2hours |
|
Weight (kg) |
approx.N.W10KG G.W17KG |
approx.N.W8KG G.W15KG |
| Package | plastic box | plastic box |
