Single Stage Pump Hydraulic Crimping Tools High Pressure Hydraulic Pump 80 Mpa
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | YBQA-80-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Super High Pressure Hydraulic Pump(Single-stage Pump Output) | Item No.: | 16146-16144 |
|---|---|---|---|
| Engine Type: | Gasoline Engine/ Diesel Engine /Electric Engine | Rated Pressure: | 80 Mpa |
| Max Oil Pressure: | 94 Mpa | Rated Flow High: | 1.6L/min |
| Weight: | 45-65KG | Warranty: | 1 Year |
| Highlight: | high pressure hydraulic pump 80 mpa,single stage hydraulic crimping tools,single stage high pressure hydraulic pump |
||
Product Description

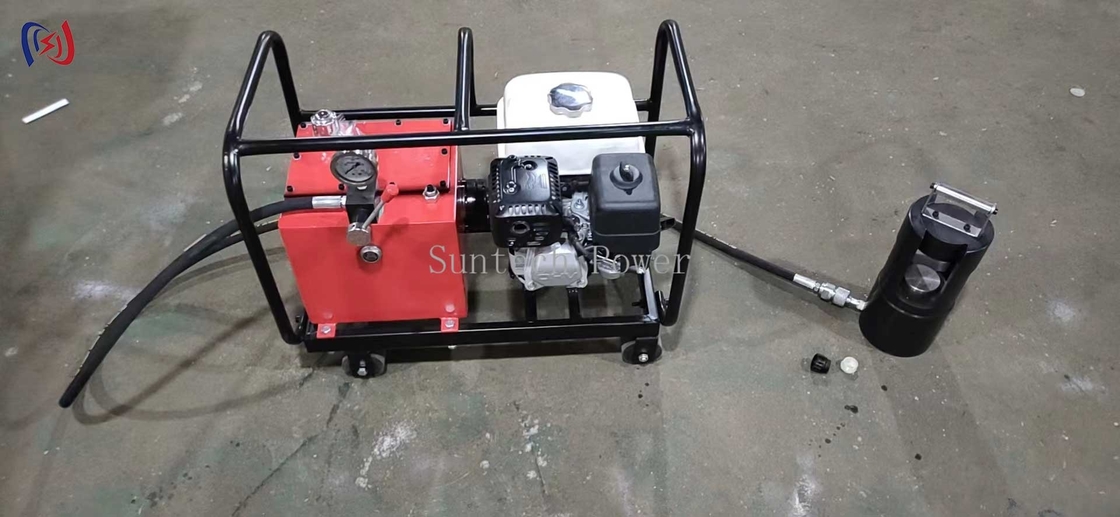

Single-Stage Pump Output Super High Pressure Hydraulic Pump
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Application
Application of hydraulic pump: to provide power for the cutting tool, the hydraulic compressor, punching machine
and other construction machinery, which is operated in the wild field in electric power, railway, rescue, construction and other industries.
Technical Data
|
Item number |
Model |
Engine Tyde |
Power |
Rated Pressure (Mpa) |
Max Oil Pressure (Mpa) |
Rated Flow (L/min) |
Weight (kg) |
|
|
Hig |
Low |
|||||||
| 16146 | YBQA-80-02 |
Gasoline engine |
5.0HP |
80 |
94 | 1.6 | / | 55 |
| 16147 | YBCA-80-02 |
Diesel engine |
4.0HP |
80 |
94 | 1.6 | / | 65 |
| 16144 | YBDA-80-02 |
Electric engine |
1.5KW |
80 |
94 | 1.6 | / | 45 |
