Strok 120mm - 380mm Hydraulic Pipe Bender Red Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SWG-25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Hydraulic Pipe Bender | Item No.: | 06250-06250-5 |
|---|---|---|---|
| Outpot: | 60-200 | Stroke: | 120-380mm |
| Wall Thickness: | 1.5-5---2.5-6 | Weight: | 16-186KG |
| Warranty: | 1 Year | ||
| Highlight: | red transmission line stringing tools,120mm hydraulic crimping tools,120mm transmission line stringing tools |
||
Product Description

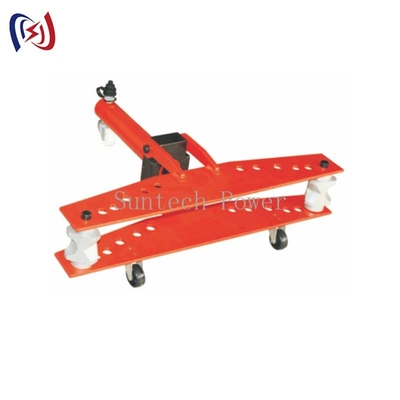

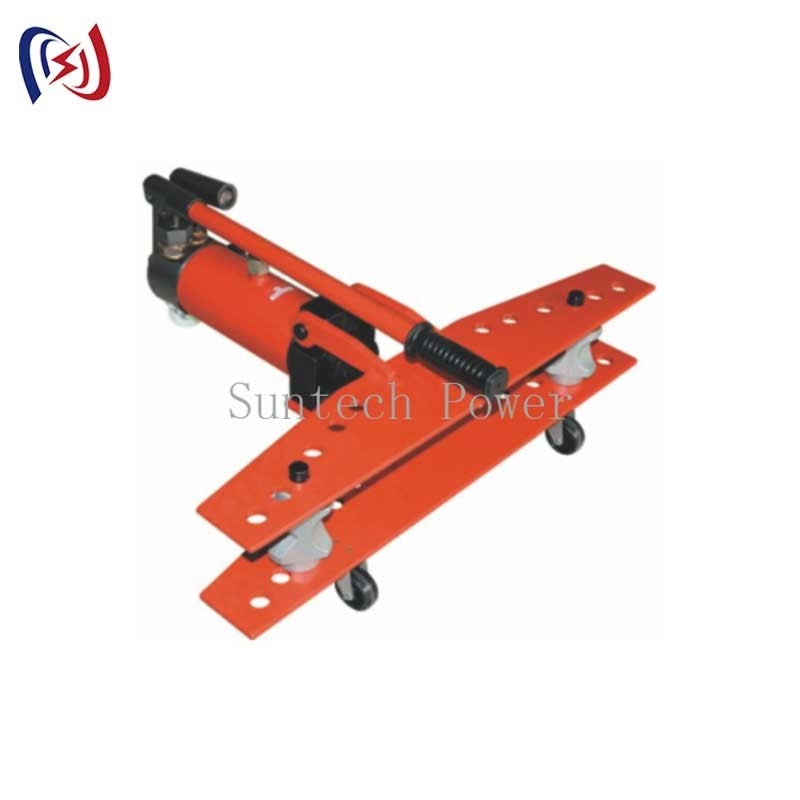

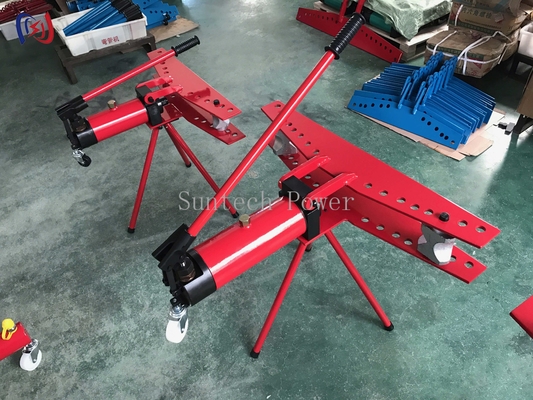

Hydraulic Pipe Bender Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Portable Electric Hydraulic Pipe Bender Application
SWG-25 Portable manual hydraulic busbar bender, pipe bender is applicable to the general water pipe, conduit, gas pipe, carbon steel pipe, bending angle with 90., it can be shaped 90º one time. The mold is made of aluminum alloy or solid ball cast iron.
Portable Electric Hydraulic Pipe Bender Specification
| Item number | 06250 | 06250-1 | 06250-2 | 06250-3 | 06250-4 | 06250-5 |
| Model | SWG-25 | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
| Cutting force | 60 | 100 | 160 | 180 | 200 | 200 |
|
Stroke (MM) |
120 | 160 | 230 | 320 | 380 | 380 |
|
Wall thickness (MM) |
1.5-5 | 2-5 | 2.5-5 | 2.5-5 | 2.5-6 | 2.5-6 |
| Weight | 16 | 20 | 47.5 | 97 | 137 | 186 |
| Bending angl(rad) | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | ≤90° |
| Pipe diameter(mm) |
Φ10 Φ13 Φ16 Φ19 Φ22 Φ25 |
Φ13 Φ16 Φ19 Φ22 Φ28 Φ34 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 Φ114 |
