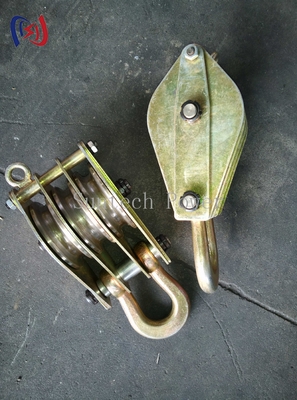

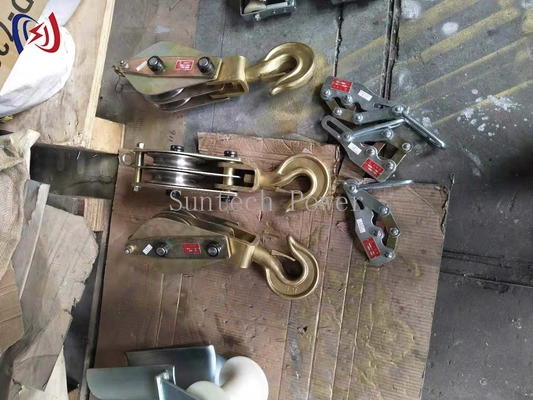

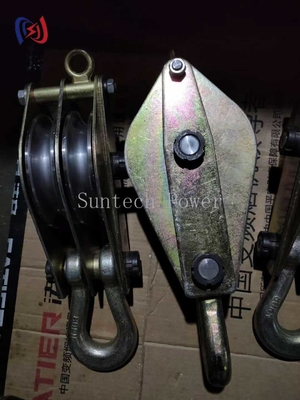

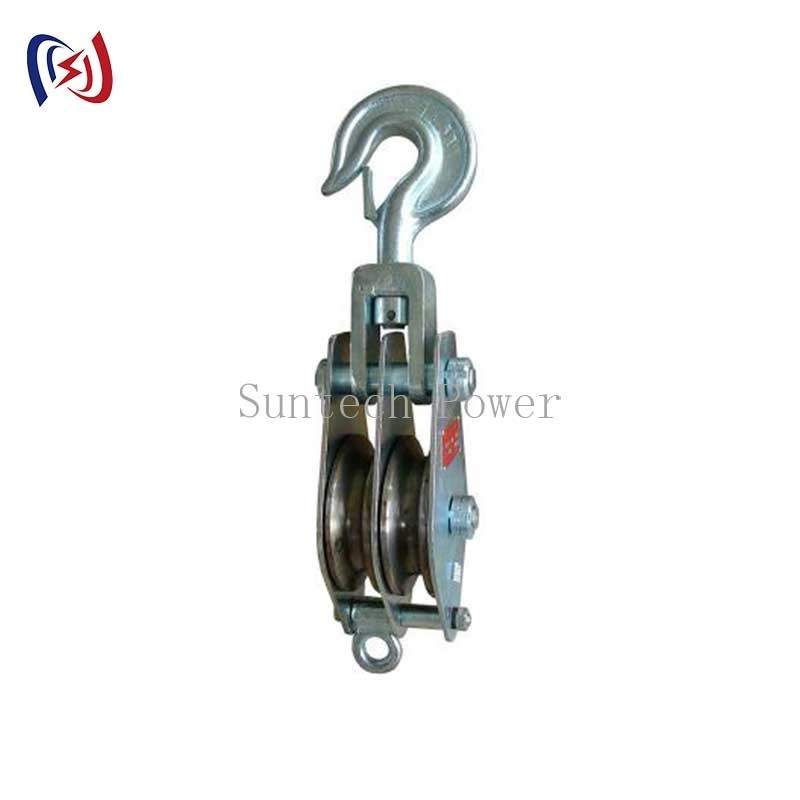

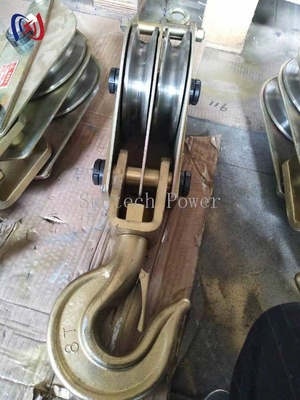

Casting Steel 50KG Hoisting Tackle Sheave Hoist Sheave
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | Qh1X1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hoisting Tackle(Casting Steel Sheave) | Item No.: | 11181-11248 |
|---|---|---|---|
| Sheave: | 1/2/3/4 | Rated Load: | 10-200KN |
| Max.Rope Diameter: | 5.7-20mm | Weight: | 3-50KG |
| Warranty: | 1 Year | ||
| Highlight: | Casting Steel Hoisting Tackle,50KG Hoisting Tackle,Sheave hoist sheave |
||
Product Description
Hoisting Tackle Casting Steel Sheave Apply Hoist Operation
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Uses: Apply to assemble and erect thr tower,line construction hoist devices and other hoist operation.
Explain:Hanger includes hook type,plate type and ring type.This is need indicated when customer place order.
| Item number | Model | Number of sheaves | Rated load (kN) |
Roller Dia×width (mm) |
MAX. Rope Diameter (mm) |
Weight (kg) |
| 11181 | QH1x1 | 1 | 10 | 100*31 | 8 | 3 |
| 11182 | QH1x2 | 2 | 80*27 | 6 | 3 | |
| 11183 | QH1x3 | 3 | 80*27 | 6 | 4 | |
| 11191 | QH2x1 | 1 | 20 | 120*35 | 10 | 4 |
| 11192 | QH2x2 | 2 | 100*31 | 8 | 5 | |
| 11193 | QH2x3 | 3 | 100*31 | 8 | 6 | |
| 11201 | QH3x1 | 1 | 30 | 150*39 | 11 | 6.5 |
| 11202 | QH3x2 | 2 | 120*35 | 10 | 5 | |
| 11203 | QH3x3 | 3 | 100*31 | 8 | 6 | |
| 11211 | QH5x1 | 1 | 50 | 166*40 | 15.5 | 9 |
| 11212 | QH5x2 | 2 | 150*39 | 12.5 | 13 | |
| 11213 | QH5x3 | 3 | 120*35 | 11 | 11 | |
| 11221 | QH8x1 | 1 | 80 | 205*50 | 13 | 20 |
| 11222 | QH8x2 | 2 | 166*40 | 11 | 19 | |
| 11223 | QH8x3 | 3 | 150*39 | 10 | 18 | |
| 11231 | QH10x1 | 1 | 100 | 246*60 | 19 | 22 |
| 11232 | QH10x2 | 2 | 166*40 | 13 | 21 | |
| 11233 | QH10x3 | 3 | 150*39 | 11 | 20 | |
| 11241 | QH15-1 | 1 | 150 | 280*64 | 22 | 40 |
| 11242 | QH15-2 | 2 | 205*50 | 18 | 33 | |
| 11243 | QH15-3 | 3 | 166*40 | 13 | 26 | |
| 11244 | QH15-4 | 4 | 150*39 | 11 | 28 | |
| 11245 | QH20-1 | 1 | 200 | 305*68 | 23 | 56 |
| 11248 | QH20-4 | 4 | 205*50 | 18 | 50 |
