30 - 150KG Large Diameter Rope Pulley Conductor ACSR500 Heavy Duty Wire Rope Pulley
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHD660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | 660 Series Stringing Block | Item No.: | 10121-10128 |
|---|---|---|---|
| Sheave: | 1/3/5 | Rated Load: | 20-60KN |
| Weight: | 30-150KG | Warranty: | 1 Year |
| Highlight: | 30KG Large Diameter Rope Pulley,150KG Large Diameter Rope Pulley,ACSR500 heavy duty wire rope pulley |
||
Product Description

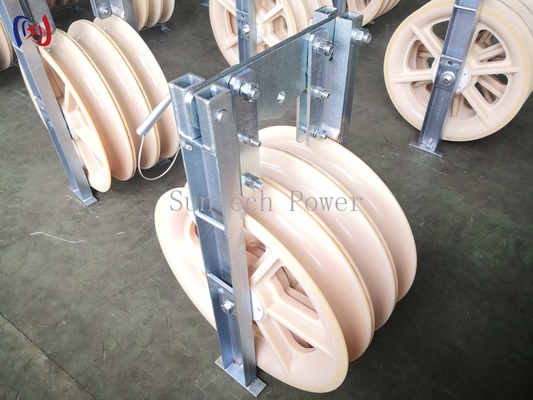

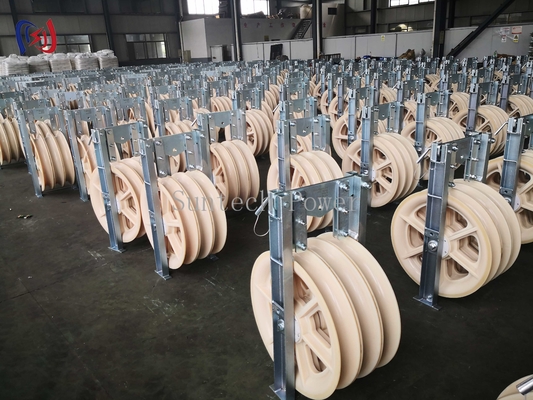

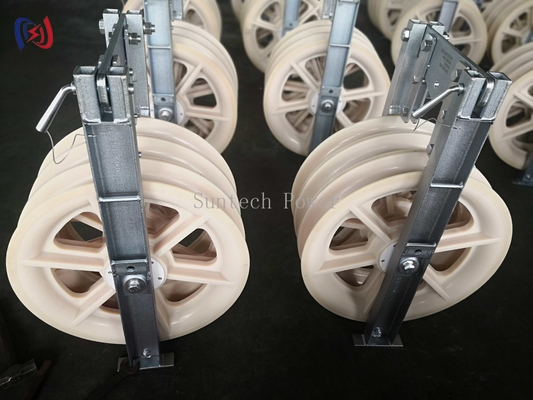

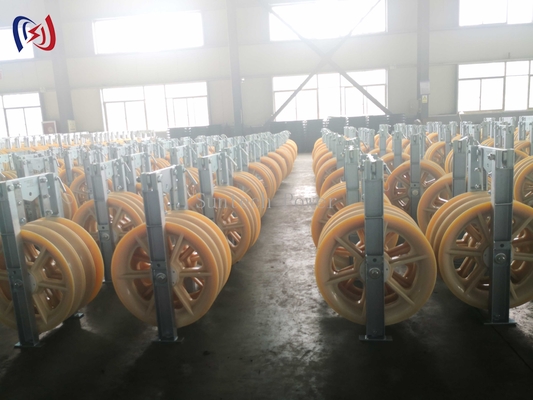

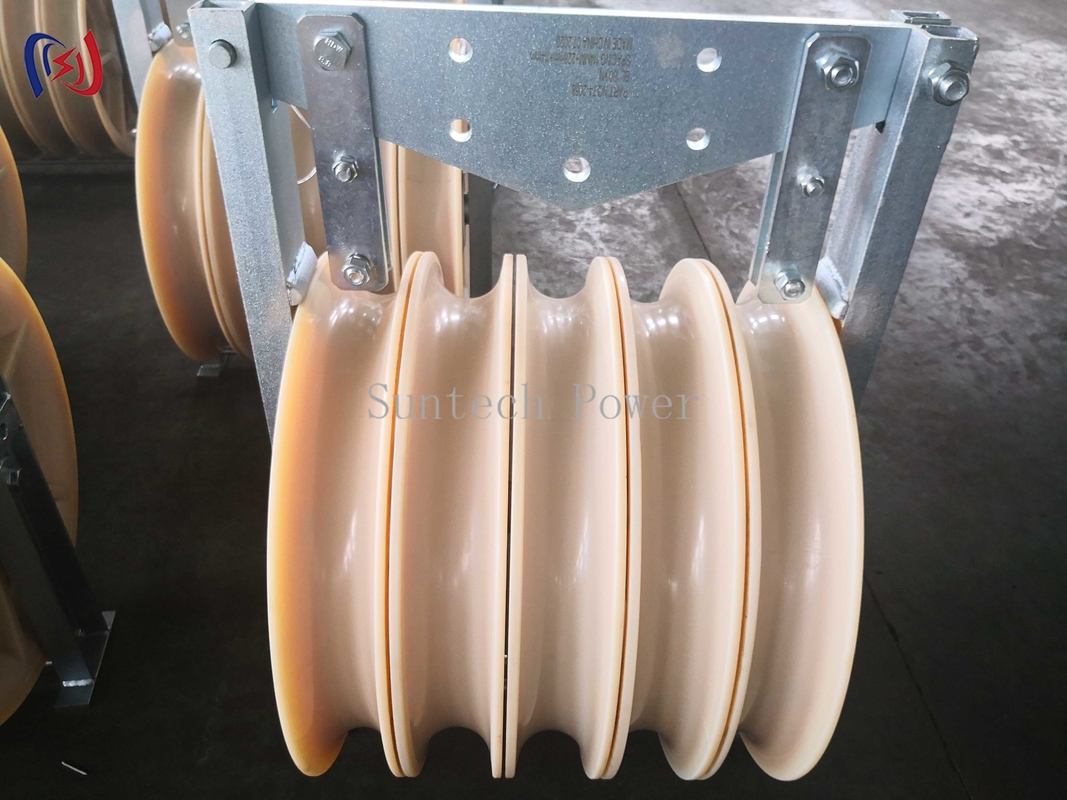

660 Series Stringing Block Maximum Suitable Conductor ACSR500
Product introduction:
This 660*100mm Large Diameter Stringing Block possesses the dimension (outside diameter × groove bottom diameter × sheave width) of Φ660 × Φ560 × 100 (mm). Under normal circumstances,its maximum suitable conductor is ACSR500, which means that the aluminum of our conducting wire has the maximum cross section of 500 square millimeters. The maximum diameter through which the sheave passes is 75mm. Under normal circumstances, the model of the maximum Splicing Sleeve Protector is J500B. This Stringing Block can be divided into single sheave, three sheaves, five sheaves and seven sheaves according to the number of sheaves. Correspondingly, the number of conductors passing through the Stringing Block is: single conductor, double bundle conductor, four bundle conductor and six bundle conductor. According to the sheave material, it can be divided into MC nylon material, aluminum alloy material, nylon sheave coated rubber and aluminum sheave coated rubber. The intermediate sheave can also be steel sheave.
MC nylon sheave of the Stringing Block also has a wheel width of 110mm, Under normal circumstances,its maximum suitable conductor is ACSR630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters. The maximum diameter through which the sheave passes is 85mm. Under normal circumstances, the model of the maximum Splicing Sleeve Protector is J630B.
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
|
Item number
|
Model
|
Number of sheaves
|
Rated load (kN)
|
Weight (kg)
|
Features
|
|
10121
|
SHD660
|
1
|
20
|
30
|
Rubber lined aluminium sheave
|
|
10122
|
SHS660
|
3
|
40
|
100
|
Middle : Cast steel sheave
Conductor : Rubber lined aluminium sheave |
|
10123
|
SHW660
|
5
|
60
|
150
|
Middle : Cast steel sheave
Conductor : Rubber lined aluminium sheave |
|
10124
|
SHDN660
|
1
|
20
|
26
|
MC nylon sheave
|
|
10125
|
SHSN660
|
3
|
40
|
86
|
Middle : MC nylon sheave
Conductor : Rubber lined aluminium sheave |
|
10126
|
SHWLN660
|
5
|
60
|
120
|
Middle : MC nylon sheave
Conductor : Rubber lined aluminium sheave |
|
10127
|
SHSQN660
|
3
|
40
|
70
|
MC nylon sheave
|
|
10128
|
SHWQN660
|
5
|
60
|
110
|
MC nylon sheave
|
|
10130
|
SHQ660A
|
7
|
75
|
190
|
Middle :cast steel sheave
Conductor : MC nylon sheave |
