High Performance Transmission Line Stringing Tools Single Conductor Stringing Block
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHD 120x30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Item No.: | 10171-10199 | Model: | SHD-120x30 -SHND-400X80 |
|---|---|---|---|
| Rated Load: | 5-20KN | Weight: | 1.5-13KG |
| Application: | Construction Site | Material: | Nylon Sheaves Or Aluminum Sheaves |
| Highlight: | Transmission Line Stringing Tools,Power Line Construction Stringing Tools,High Performance Transmission Line Stringing Tools |
||
Product Description

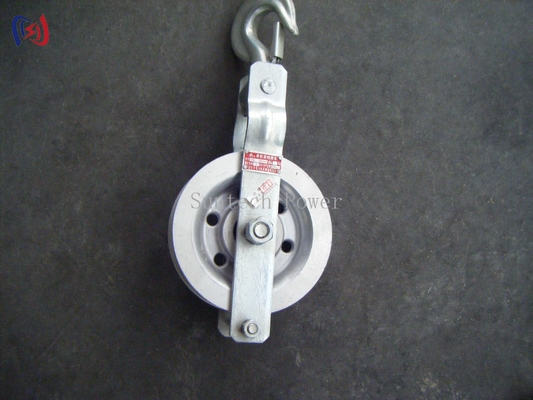

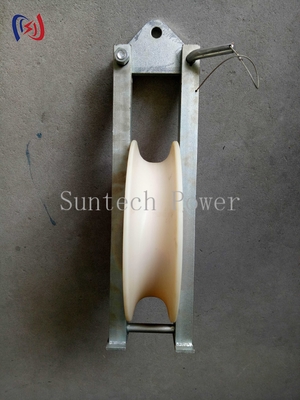

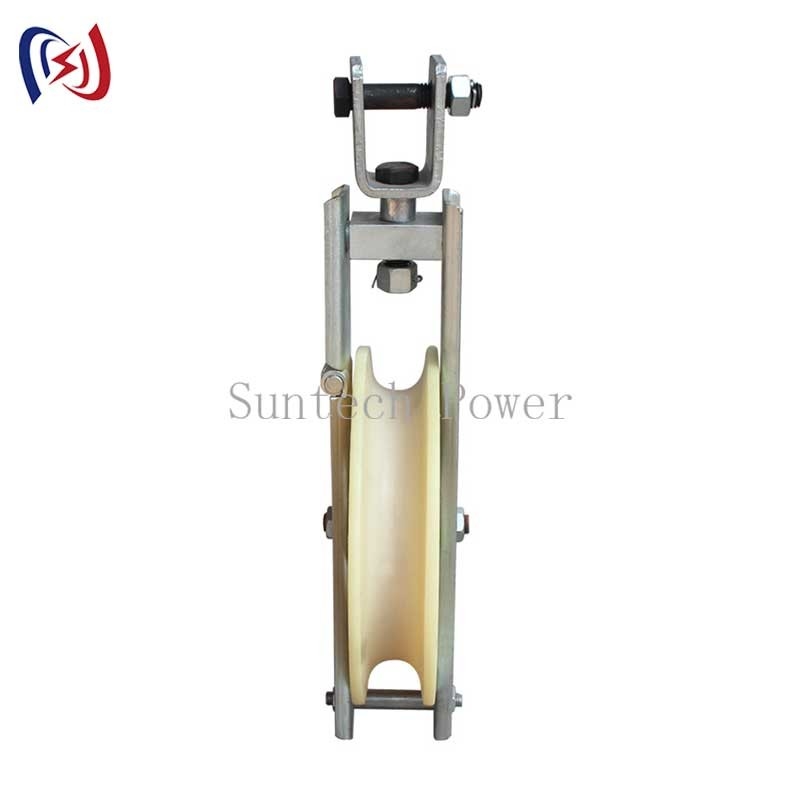

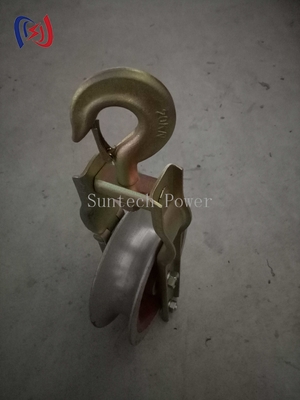

High Performance Transmission Line Stringing Tools Single Conductor Stringing Block
A Single Conductor Stringing Block is a specialized pulley used in overhead power line construction to guide and support a single conductor (or cable) during stringing operations. It ensures smooth, friction-reduced movement while preventing damage to the conductor.
Typically consists of a grooved wheel (sheave) mounted on a swivel frame.Made from aluminum, nylon, or composite materials to minimize conductor wear.May include rubber or urethane linings for added protection.
Applications:Used in transmission & distribution line installations,suitable for ACSR, AAC, AAAC, and other conductor types and often employed in dead-end or suspension setups.
| Item number | Model | Suitable conductor | Rated load(KN) | Weight(kg) | Remark |
| 10171 | SHD-120*30 | LGJ25~70 | 5 | 1.5 |
Aluminium sheave |
| 10172 | SHD-160*40 | LGJ95~120 | 10 | 2.5 | |
| 10173 | SHD-200*40 |
LGJ150~240 |
15 | 4 | |
| 10174 | SHD-200*60 | LGJ150~240 | 15 | 4.6 | |
| 10175 | SHD-250*40 | LGJ150~240 | 20 | 4.6 | |
| 10176 | SHD-250*60 | LGJ300~400 | 20 | 6 | |
| 10177 | SHD-270*60 | LGJ300~400 | 20 | 7 | |
| 10178 | SHD-320*60 | LGJ300~400 | 20 | 9.5 | |
| 10179 | SHD-400*80 | LGJ400~500 | 20 | 15 | |
| 10191 | SHDN-120*30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160*40 | LGJ95~120 | 10 | 2.5 | |
| 10193 | SHDN-200*40 | LGJ150~240 | 15 | 3.6 | |
| 10194 | SHDN-200*60 | LGJ150~240 | 15 | 4 | |
| 10195 | SHDN-250*40 | LGJ150~240 | 20 | 4 | |
| 10196 | SHDN-250*60 | LGJ300~400 | 20 | 4.5 | |
| 10197 | SHDN-270*60 | LGJ300~400 | 20 | 5.6 | |
| 10198 | SHDN-320*60 | LGJ300~400 | 20 | 6.7 | |
| 10198-1 | SHDN-320*80 | LGJ300~400 | 20 | 8 | |
| 10199 | SHDN-400*80 | LGJ400~500 | 20 | 13 | |
| 10199-1 | SHDN-400*100 | LGJ400~500 | 20 | 15 | |
| 10199-2 | SHDN-400*120 | LGJ400~500 | 20 | 18 |
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
