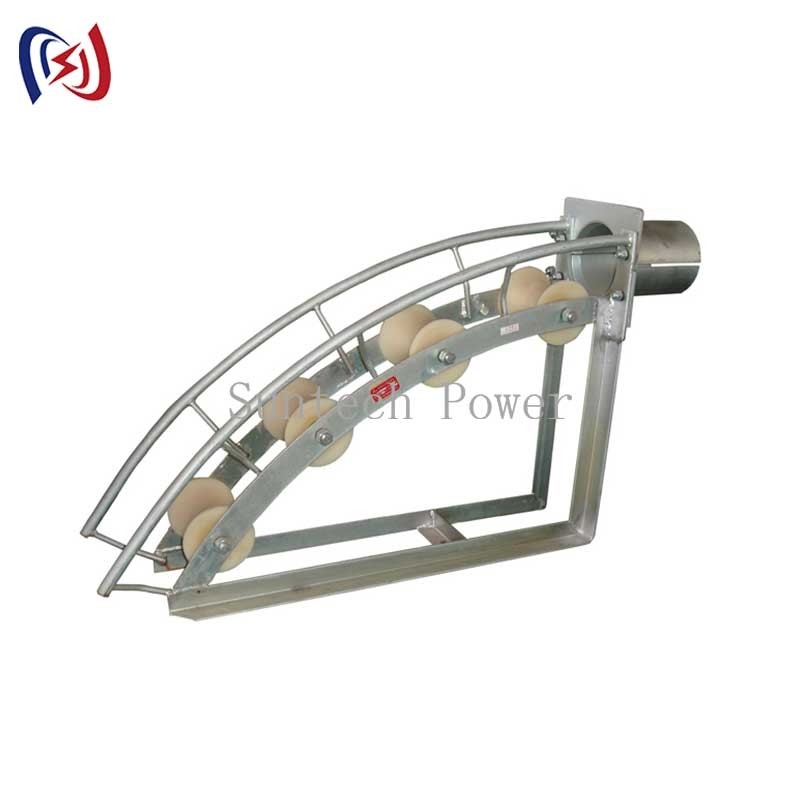

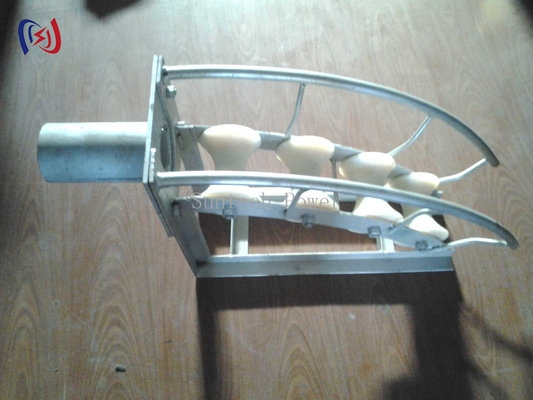

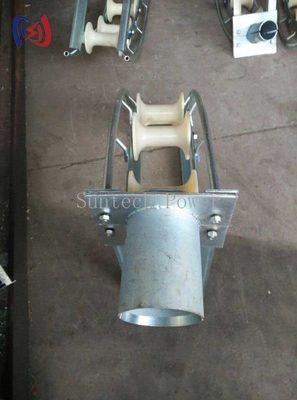

Cable Roller Pulley For Laying Cables Flexible Rotation MC Nylon Wheels 450mm Curvature Radius Lockable Protect From Damage
Product Details:
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SH80C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Item No.: | 21251 | Model: | SH80C |
|---|---|---|---|
| Tube Diameter: | 80-200mm | Weight: | 17-30.5KG |
| Warranty: | 1 Year | ||
| Highlight: | MC Nylon Wheels Cable Roller Pulley,Flexible Rotation Cable Roller Pulley,450mm Curvature Radius Cable Roller Pulley |
||
Product Description
Application
Used for laying cables. Protect cable from damage.
Feature
The pulley wheels are made of MC nylon mounted on ball bearings
The frame is made of high quality steel, Surface spray anti – rust paint to avoid rusting
With seamless welding technology , technology skills, welded firmly.
The block has built-in bearing, which can rotate flexibly, effectively reduce friction and save labor.
Note
Three roller .the curvature radius is 450mm.
the roller can be placed in tube orifice at arbitrary angle .lockable .
nylon roller .
Configuration:Three rollers cable manhole roller
Specification:3 Sheave curvature radius is 450mm, 4 sheave curature radius is 1000mm.The roller can be placed in tube orifice at arbitrary angle and lockable with zinc-coated steel surface and nylon sheave.
Quick Information:
1. Underground cable installation tools
2. SHL 150C, 3 sheaves cable roller, three sheaves cable roller
3. Suntech Brand
4. 150mm Tube diameter
5. 21.0 kg weight.
| Item number | Model | Number of sheaves |
Tube Diameter (mm) |
Weight (kg) |
| 21251 | SHL80C | 3 | 80 | 17.0 |
| 21252 | SHL90C | 3 | 90 | 18.0 |
| 21253 | SHL100C | 3 | 100 | 20.0 |
| 21254 | SHL130C | 3 | 130 | 20.5 |
| 21255 | SHL150C | 3 | 150 | 21.0 |
| 21255A | SHL180C | 3 | 180 | 22.0 |
| 21256 | SHL200C | 3 | 200 | 23.0 |
| 21261 | SHL80C1 | 4 | 80 | 24.0 |
| 21262 | SHL90C1 | 4 | 90 | 25.0 |
| 21263 | SHL100C1 | 4 | 100 | 25.0 |
| 21264 | SHL130C1 | 4 | 130 | 25.0 |
| 21265 | SHL150C1 | 4 | 150 | 26.0 |
| 21265A | SHL180C1 | 4 | 180 | 27.0 |
| 21266 | SHL200C1 | 4 | 200 | 30.5 |
