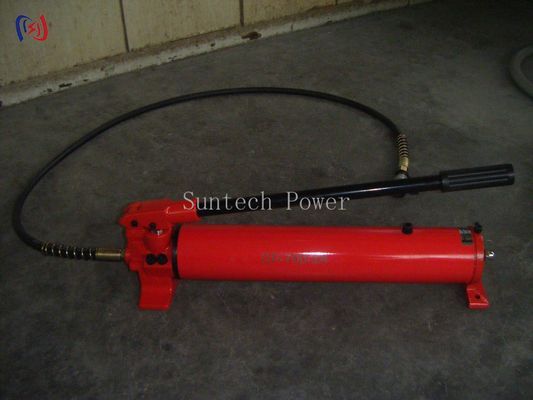

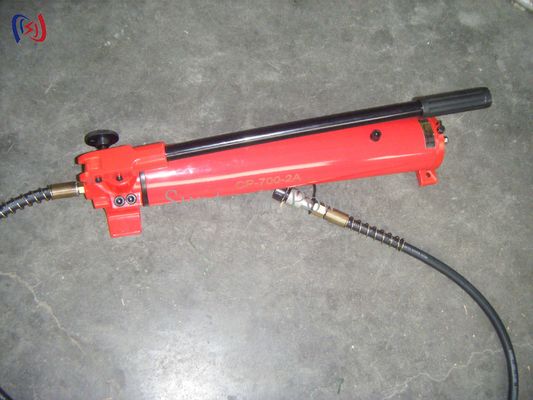

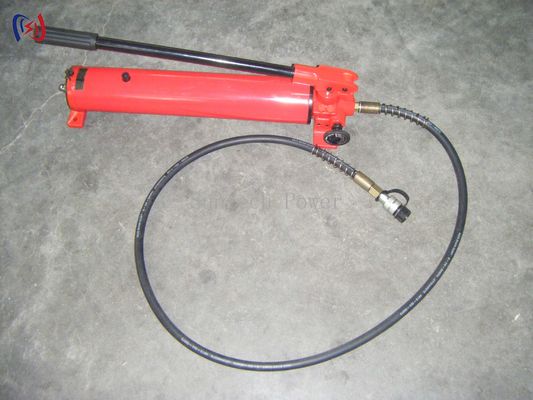

Industrial Grade Manual Hydraulic Pump For Power Construction Tools
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | CP-700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 3000 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Pump | Item No.: | 16164-16153-2 |
|---|---|---|---|
| Model: | CP-700-CFP-800B | Type: | Hand/Foot Pump |
| Oil Capacity: | 600cc-2700cc | Direction Of Piston: | Double |
| Weight: | 10.8-15.5KG | Package: | Paper Box |
| Highlight: | Hydraulic Pump for Power Tools,Industrial Grade Hydraulic Pump,Manual Hydraulic Pump |
||
Product Description
Industrial-Grade Manual Hydraulic Pump for Power Construction Tools
Key Features:
✔ Manual/Electric Options – Choose between hand-operated or battery-powered models
✔ Built-In Pressure Gauge – Monitors and controls hydraulic pressure in real time
✔ Quick-Release Valve – Allows fast reset and tool repositioning
✔ Large Oil Reservoir – Reduces refill frequency during extended operations
✔ Durable Construction – Hardened steel body with anti-corrosion coating
✔ Safety Features – Overpressure relief valve and ergonomic non-slip handles
Technical Specifications:
Oil Capacity: 200-500ml (depending on model)
Connector Type: Standard quick-connect couplers
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Working Principle:
The pump uses manual lever action (or electric motor) to pressurize hydraulic oil, which is then delivered through high-pressure hoses to connected tools (crimpers, cutters, etc.). The pressure relief valve ensures safe operation by preventing system overload.
Primary Applications:
✅ Power cable crimping and cutting
✅ Substation maintenance and construction
✅ Industrial hydraulic tool systems
✅ Telecom and railway electrification projects
✅ Mining and offshore power installations
Advantages:
⚡ Consistent Performance – Maintains steady pressure for precision work
⚡ Versatile Compatibility – Works with most standard hydraulic tools
⚡ Low Maintenance – Sealed system with minimal wear parts
⚡ Portable – Compact design for easy transport to job sites
Service & Support:
1-Year Warranty
Global Technical Support
Manual Hydraulic Pump Features
1. Double loop piston
2. Iron box packing
3. Use No.15 Antiwear hydraulic oil
| Item number | 16164C | 16164 | 16164A | 16164B |
| Model | CP-180 | CP-700 | CP-700A | CFP-800B |

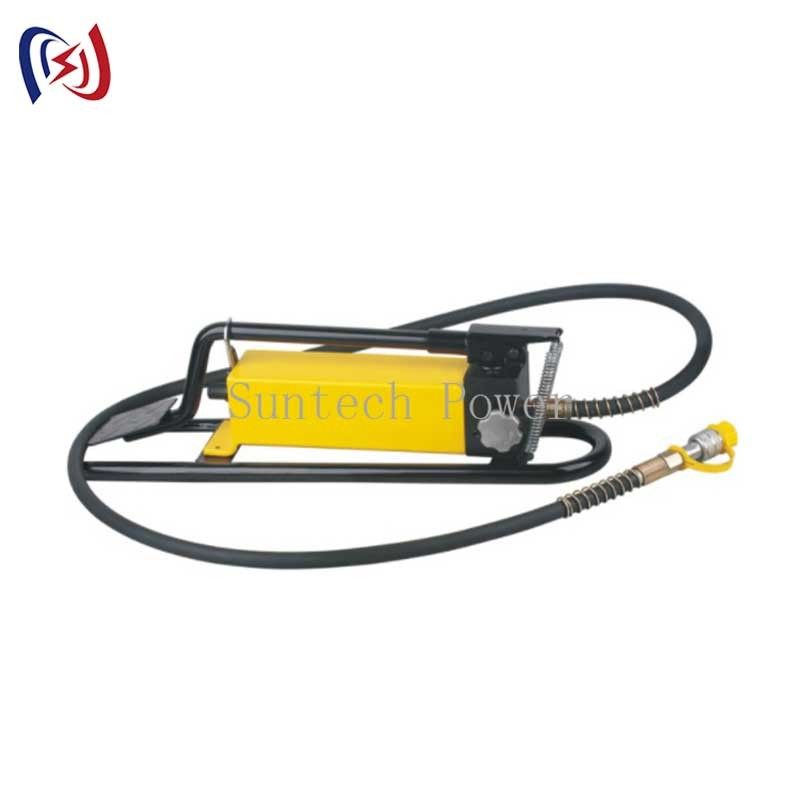

| Type | hand | hand | hand | foot pump |
|
Max output pressure |
/ | low pressure 2Mpa | low pressure 2Mpa | low pressure 2Mpa |
| high pressure 70MPa | high pressure 70Mpa | high pressure 70Mpa | high pressure 70Mpa | |
|
Output of the oil |
/ | low pressure 13cc | low pressure 13cc | low pressure 13cc |
| high pressure 1.8cc | high pressure 2.3cc | high pressure 2.3cc | high pressure 2.3cc | |
| Oil capacity | 350cc | 900cc | 2700cc | 600cc |
|
Direction of piston |
single | double | double | double |
| Weight(KG) |
approx.N.W9.5KG G.W10.9KG |
approx.N.W9.5KG G.W10.9KG |
approx.N.W14.1KG G.W15.5KG |
approx.N.W9.8KG G.W10.8KG |
|
Measurement (LxWxH) |
340×60×120mm | 700x100x160mm | 700x100x200mm | 520x160x170mm |
| Package | paper box | paper box | paper box | paper box |
