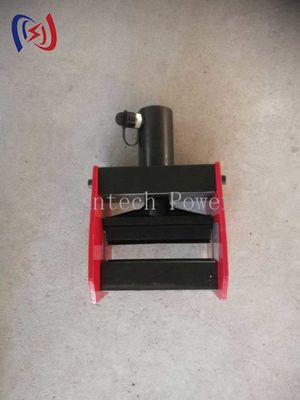

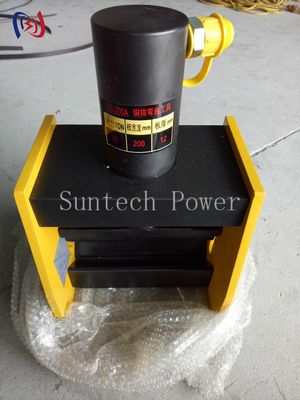

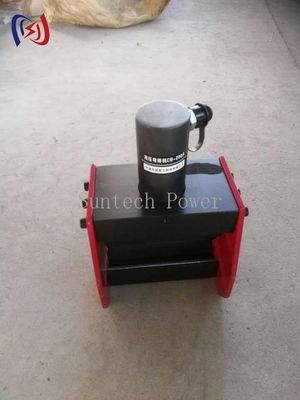

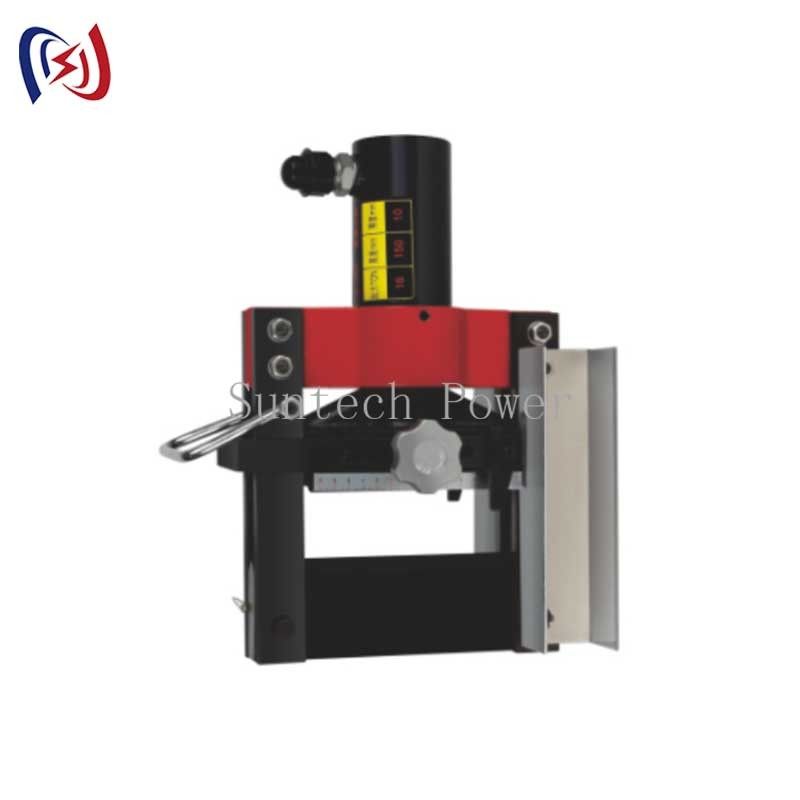

Automatic Stroke Hydraulic Bender for Flatwise/Edgewise Bending in 3 Seconds
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | CB-150D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1200PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Bus-Bar Bender | Item No.: | 06242-06247 |
|---|---|---|---|
| Model: | CB-150D | Bending Force: | 170KN-27T |
| Max Thickness Of Sheet: | CU/AL Plate 10-12mm | Width Of Sheet: | CU/AL Plate 150-200mm |
| Height: | 250-340mm | Weight: | 20.5-70KG |
Product Description
Automatic Stroke Hydraulic Bender for Flatwise/Edgewise Bending in 3 Seconds
Industrial Hydraulic Busbar Bending Solution
This professional-grade hydraulic bus-bar bender revolutionizes metal fabrication with its dual-capacity for both flat bending (0-180°) and vertical bending (0-90°). The 20-ton hydraulic system (requires external pump, not included) delivers consistent force for processing copper/aluminum busbars from 40x10mm to 120x12mm dimensions.
Key features include:
- Precision Engineering - Laser-etched angle scale with ±0.5° accuracy and adjustable limit stops ensure repeatable bends for switchgear, transformers, and solar panel installations.
- Dual-Mode Operation - Quickly switch between flat bending (for parallel connections) and vertical bending (for riser applications) with the patented die-changing mechanism.
- Safety First - Reinforced steel frame withstands 150% overload, while the anti-slip pedal and emergency stop button comply with OSHA standards.
- Smart Compatibility - Pre-drilled mounting holes allow integration with CNC automation systems (optional), increasing production speed by 300% compared to manual bending.
Performance Data:
- Bending Speed: 8-12 cycles/minute (depending on pump capacity)
- Maximum Pressure: 59MBar (10,000PSI)
- Weight: 298kg (portable with forklift)
- Noise Level: <65dB (factory-tested)
Includes: Main unit, 6 standard dies (R5/R10/R15 for flat bending; R20/R30/R50 for vertical bending), user manual with bending force charts. Optional accessories: laser angle finder, hydraulic pump package, CNC interface module.
Specification
|
Item number |
06245 |
06246 |
06245A | 06246A |
| Model | SCB-100D | BCB-100A | SCB-120D | BCB-120A |
|
Output(Mpa) |
44 | 59 | ||
|
Stroke(MM) |
250 | 320 | ||
|
Bending ability(MM) |
40-100(Width) 4-10(Thickness) |
440-120(Width) 4-12(Thickness) |
||
|
Bending angle(MM) |
90°<A<180° | 90°<A<180° | ||
|
Radius of curvature |
25 times the width |
25 times the width |
||
|
Weight(KG) |
50KG | 100KG | ||
|
Size(MM) |
760x380x580mm | 960x450x540mm | ||
