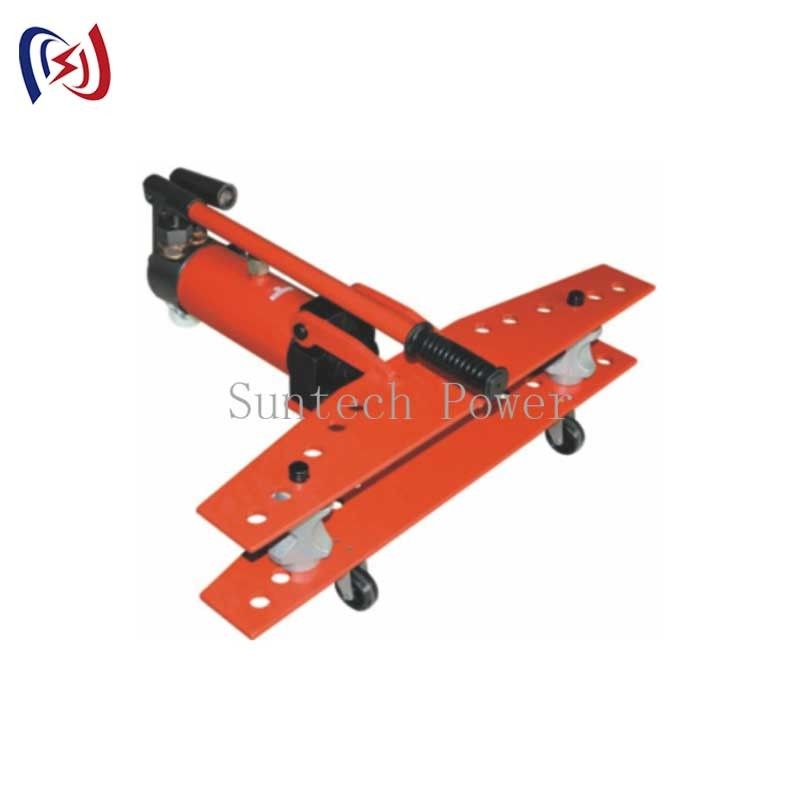

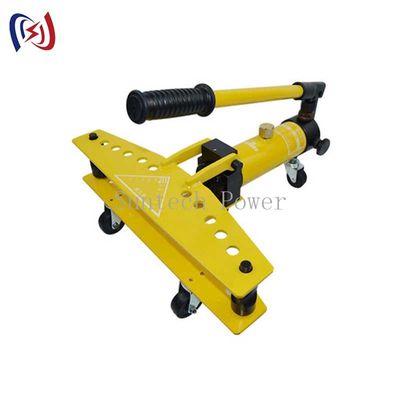

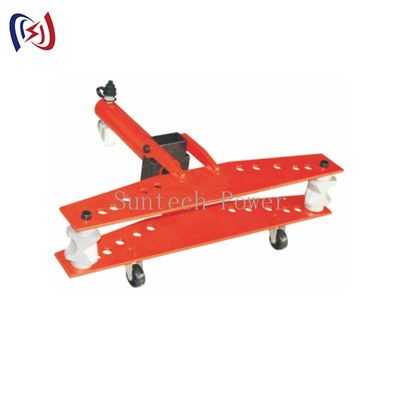

Portable Hydraulic Pipe Bender – 20-Ton Force & Compact Design for Job Site Use
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SWG-25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 3000 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Pipe Bender | Item No.: | 06250 |
|---|---|---|---|
| Model: | SWG-25-SWG-5 | Output: | 60-200 |
| Stroke: | 120-380mm | Wall Thickness: | 1.5-6mm |
| Weight: | 16-186KG | Warranty: | 1 Year |
Product Description
Portable Hydraulic Pipe Bender – 20-Ton Force & Compact Design for Job Site Use
The Hydraulic Pipe Bender is a heavy-duty industrial tool designed for precision bending of pipes and tubes in plumbing, HVAC, automotive, and industrial applications. With a 10-ton hydraulic pressure system, it delivers smooth, kink-free bends on steel, copper, and stainless steel pipes with diameters ranging from 1/2" to 4". Unlike manual benders or heat-based methods, this tool eliminates pipe deformation and reduces labor time by 70%.
Key Features:
✔ Wide Diameter Range – Handles pipes from 1/2" to 4" with interchangeable dies.
✔ Precision Bending – Achieves 15° to 180° bends with ±0.5° accuracy.
✔ Zero Energy Dependency – Fully hydraulic operation, no electricity or gas required.
✔ Safety Lock & Pressure Release – Prevents accidental activation and overloading.
✔ Portable & Durable – Weighs only 28kg, ideal for job site mobility.
Performance Benefits:
- Bends 2" steel pipe in 8 seconds – 3X faster than manual benders.
- No pipe deformation – Cold-bending technology preserves structural integrity.
- Low maintenance – Self-lubricating ram requires servicing every 10,000 bends.
Technical Specifications:
- Model: SGW-25
- Max Bending Force: 20 tons
- Die Material: Chromium-plated alloy steel
- Operating Temperature: -20°C to 60°C
- Compliance: ISO 9001, CE, ASME B31.3
- Warranty: 1 years
Ideal Applications:
- Plumbing and HVAC installations
- Automotive exhaust systems
- Industrial piping and structural frameworks
- Shipbuilding and railway maintenance

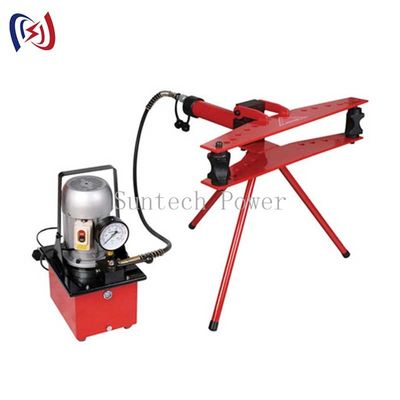

Portable Electric Hydraulic Pipe Bender Specification
| Item number | 06250 | 06250-1 | 06250-2 | 06250-3 | 06250-4 | 06250-5 |
| Model | SWG-25 | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
| Cutting force | 60 | 100 | 160 | 180 | 200 | 200 |
|
Stroke (MM) |
120 | 160 | 230 | 320 | 380 | 380 |
|
Wall thickness (MM) |
1.5-5 | 2-5 | 2.5-5 | 2.5-5 | 2.5-6 | 2.5-6 |
| Weight | 16 | 20 | 47.5 | 97 | 137 | 186 |
| Bending angl(rad) | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | ≤90° |
| Pipe diameter(mm) |
Φ10 Φ13 Φ16 Φ19 Φ22 Φ25 |
Φ13 Φ16 Φ19 Φ22 Φ28 Φ34 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 |
Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 Φ114 |
