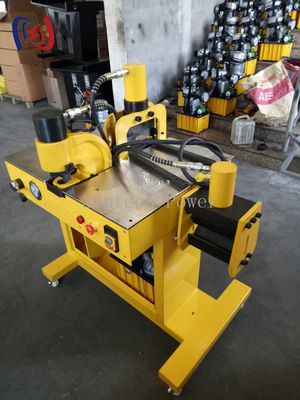

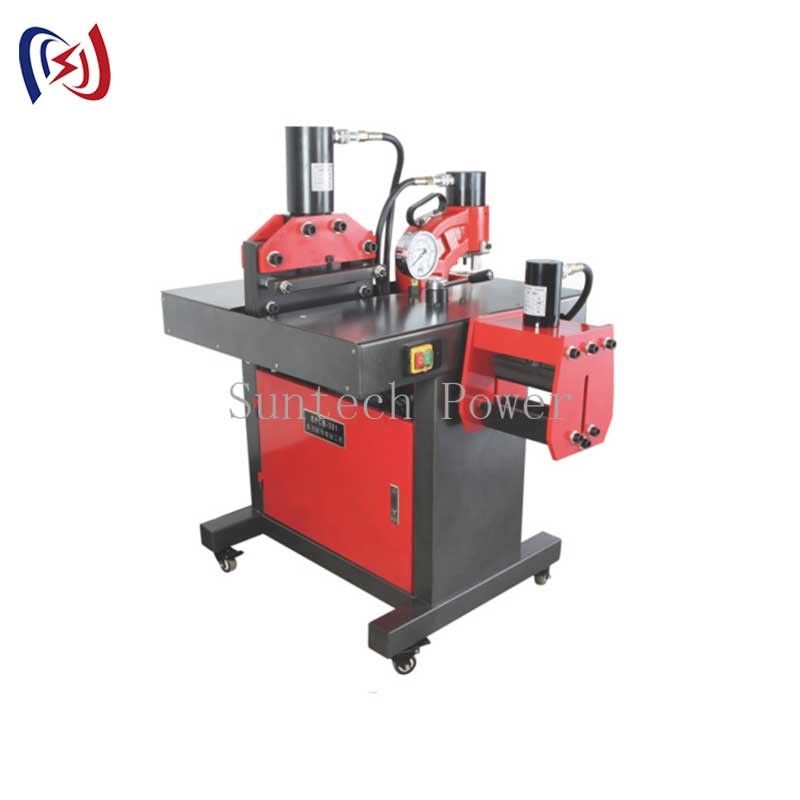

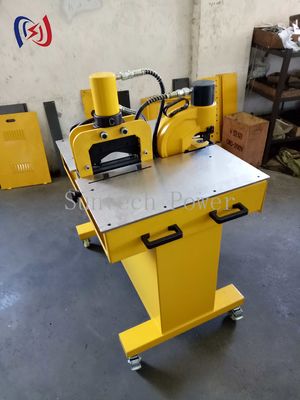

Professional Hydraulic Bus-bar Machine - 0-12mm Thickness Capacity with ±0.1mm Precision
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | EPCB-301 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Bus-bar Machine | Item No.: | 06232/06231 |
|---|---|---|---|
| Model: | EPCB-301 | Dimension Of Work Table: | 690x60x730mm |
| Voltage Single Phase: | 220V50HZ | Rating Oil Pressure: | 700kg/cm2 |
| Bending Force: | 170/200/270KN | Bending Range: | 150x10mm Max/200x12.5mm Max |
| Cutting Force: | 200/300KN | Cutting Range: | 150x10mm Max/200x12mm Max |
| Punching Force: | 300-350KN | Distance From Hole To Sheet Side: | 95x110mm |
Product Description
Professional Hydraulic Bus-bar Machine - 0-12mm Thickness Capacity with ±0.1mm Precision
The Hydraulic Bus-bar Machine is a state-of-the-art industrial tool designed for precision processing of copper and aluminum bus-bars in electrical panel manufacturing, substations, and power distribution systems. With a 20-ton hydraulic system, it performs flawless punching, bending, and cutting operations on bus-bars with thicknesses ranging from 0.5mm to 12mm. Unlike traditional manual tools, this machine eliminates material waste and improves production efficiency by 80%.
Key Features:
✔ Triple-Function Design - Integrates punching, bending, and cutting in one compact unit
✔ Precision Engineering - Achieves ±0.1mm tolerance for critical electrical applications
✔ Interchangeable Dies - 12 standard dies included for various shapes and sizes
✔ Safety First - Dual-hand operation with emergency stop for accident prevention
✔ Energy Efficient - 20% lower hydraulic oil consumption than competitors
Performance Benefits:
- Processes 12mm copper bus-bar in 5 seconds - 5X faster than manual methods
- Zero material deformation - Maintains perfect conductivity after processing
- 50,000+ operations before first maintenance required
Technical Specifications:
- Model: EPCB-301
- Max Working Width: 30mm
- Hydraulic Pressure: 27 tons
- Die Material: Tungsten carbide (HRC 68)
- Power Supply: 220V
- Compliance: ISO 9001, IEC 61439
- Warranty: 1 years
Ideal Applications:
- Electrical panel manufacturing
- Power substation maintenance
- Renewable energy systems
- Industrial control cabinets

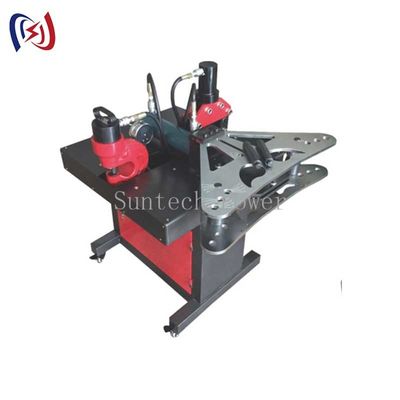

| Item No. | 06232 | 06231 |
| Model | EPCB-301 | EPCB-401 |
| Function | with three functions,cutting,punching and bending | with four functions,cutting,punching and bending(horizontal and erective) |
| Dimension of work table | approx.690*690*730mm | approx.690*690*730mm |
| Voltage single phase | 220V50HZ | 220V50HZ |
| Rating oil pressure | 700kg/cm2 | 700kg/cm2 |
| Bending force | 170kn/200kn | 270kn |
| Bending range | 150*10mm max/200*12mm max | 125*12.5mm max |
| Cutting force | 200kn/300kn | 200kn/300kn |
| Cutting range | 150*10mm max/200*12mm max | 150*10mm max/200*12mm max |
| Punching force | 300kn/350kn | 300kn/350kn |
| Distance from hole to sheet side | 95*110mm max | 95*110mm |
| Punch range |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(Φ13.8mm) 5/8"(Φ17mm),3/4"(Φ20.5mm) |
| Package | wooden case | wooden case |
