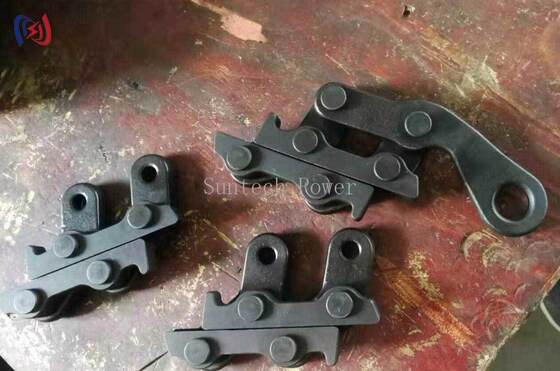

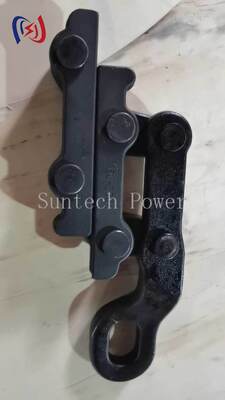

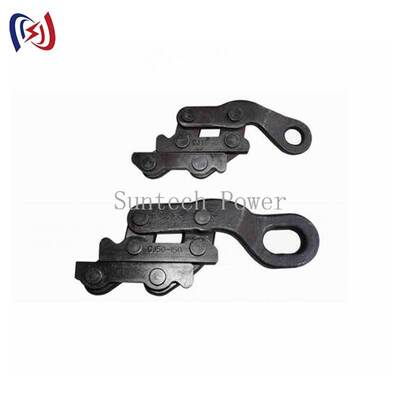

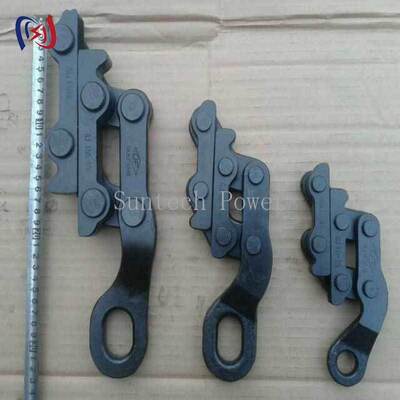

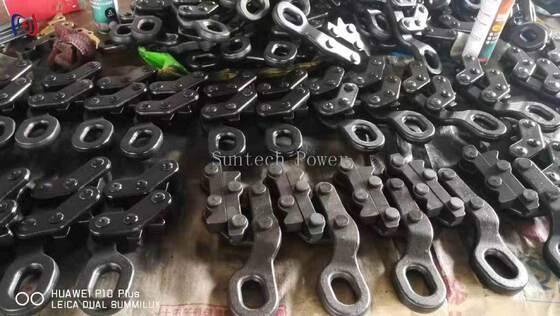

Vibration Resistant Parallel Earth Wire Gripper with 10-30KN Rated Load and 13-26mm Max Open for Dual Earth Wires

Engineered Parallel Earth Wire Gripper for Vibration Resistant Termination of Dual Earth Wires

• Ensures Simultaneous and Equal Tension on Both Wires:​ The core engineering achievement is its ability to grip and tension two ground wires as a single unit. When installed and tensioned, the gripper applies uniform force to both wires, guaranteeing they carry identical mechanical load. This equal tension is vital for preventing imbalance, which could lead to differential sag, uneven load distribution on support structures, and potential vibration-induced fatigue issues over time.

• Maintains Precise Parallel Alignment and Spacing:​ The integrated design with two fixed-position gripping chambers ensures that both earth wires remain perfectly parallel and at the correct center-to-center spacing as they leave the support structure. This precise geometry is crucial for the intended electrical performance of the grounding system, providing consistent impedance and predictable behavior under lightning strike or fault conditions.

• Provides Superior Vibration Damping for Paired Wires:​ When two wires are run in parallel, they can interact with wind flow in complex ways. The Parallel Earth Wire Gripper, by locking both wires in a fixed spatial relationship, often incorporates design features that help dampen aeolian (wind-induced) vibration. This reduces the risk of vibration fatigue failures at the termination point, a common concern with single wire terminations, thereby extending the service life of the entire grounding system.

• Streamlines Installation and Improves Efficiency:​ Installing two separate grippers for twin wires is time-consuming and requires meticulous adjustment to achieve equal tension. The parallel gripper consolidates this into a single operation. Linemen can terminate both wires at once with a single tool, dramatically reducing installation time, minimizing human error, and ensuring a perfectly balanced result from the outset. This efficiency is invaluable on large-scale transmission projects.

• Engineered for High Strength and Durability:​ Constructed from high-grade aluminum alloy or high-strength steel with corrosion-resistant finishes, this gripper is built to withstand the full tensile load of two ground wires combined, along with decades of environmental exposure. Its robust design ensures it performs reliably under the extreme mechanical and climatic demands of transmission line service.

• Essential for Modern Duplex Grounding Systems:​ Many modern high-voltage and extra-high-voltage transmission lines use twin ground wire or OPGW configurations for improved reliability and redundancy. The Parallel Earth Wire Gripper is the purpose-built termination solution for these systems, ensuring they are installed correctly and perform as designed throughout their operational lifespan.

• Protects Sensitive OPGW Cables:​ When used with OPGW, the gripper's design ensures a uniform, non-crushing grip on both cables. This protects the delicate internal optical fibers from pinching or microbending damage that could occur if the cables were terminated separately with uneven pressure, safeguarding the critical data and communication functions within the ground wire.

• Reduces Hardware and Installation Points:​ By using one parallel gripper instead of two separate units, the amount of hardware on the tower or pole is reduced. This simplifies the structure, potentially reduces points of failure, and presents a cleaner, more organized installation, which is beneficial for long-term inspections and maintenance.

• A Smart Investment in System Integrity and Longevity:​ For engineers and utilities specifying twin grounding systems, the parallel gripper represents a smart, forward-thinking choice. It addresses the specific challenges of duplex wire management at the termination point with an integrated solution, directly contributing to a lower lifetime maintenance burden and higher overall system reliability.

• Industry Standard for Professional Transmission Line Construction:​ The use of a Parallel Earth Wire Gripper is recognized as a best practice for terminating paired ground conductors. It demonstrates a commitment to precision engineering, quality installation, and the long-term performance of essential grid infrastructure, meeting the high standards required for modern power transmission networks.
