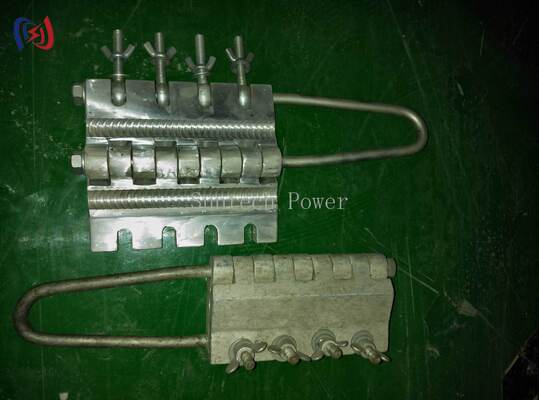

Anti-Twist Steel Rope Gripper with Bolt Fastened Mechanism – 20-100KN Rated Load Come Along Clamp for Conductor Stringing
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SKGF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 PCS/Month |
|
Detail Information |
|||
| Name: | Bolt Type Anti Twist Steel Rope Gripper | Model: | SKGF |
|---|---|---|---|
| Rated Load: | 20-100KN | Max Diameter: | 7-24mm |
| Highlight: | Anti-Twist Design Steel Rope Gripper,20-100KN Rated Load Come Along Clamp,Bolt Fastened Mechanism Conductor Clamp |
||
Product Description
Bolt Anti-Twist Steel Rope Gripper – Conductor Come Along Clamp for Stringing Operations
Product Overview
The SKGF Series Bolt Anti-Twist Steel Rope Gripper is a professional come along clamp designed for conductor stringing operations requiring anti-rotation holding. The bolt-tightened mechanism provides a secure and adjustable grip on round strand steel ropes, while the hinged two-piece body design allows easy installation and removal. The anti-twist construction prevents rope rotation during tensioning, protecting the steel rope from twist damage. Available in six models with rated loads from 20KN to 100KN, accommodating steel rope diameters from 7mm to 24mm, it is suitable for OPGW construction and general transmission line conductor pulling applications.
Technical Specifications
|
Item No. |
Model |
Rated Load (KN) |
Applicable Steel Rope (mm) |
Weight (kg) |
|
13171 |
SKGF-2 |
20 |
7, 9 |
5.6 |
|
13172 |
SKGF-3 |
30 |
11 |
5.6 |
|
13173 |
SKGF-5 |
50 |
13, 15 |
18 |
|
13174 |
SKGF-6 |
60 |
16, 18 |
18 |
|
13175 |
SKGF-8 |
80 |
20 |
20 |
|
13176 |
SKGF-10 |
100 |
22, 24 |
20 |
Applications
· OPGW (Optical Ground Wire) construction and installation
· Transmission line conductor stringing and tensioning
· Anti-twist steel rope gripping during line pulling
· Round strand wire rope holding for power line construction
· Conductor pulling operations requiring rotation prevention
Product Advantages
· Anti-Twist Design — Prevents steel rope rotation during tensioning, protecting the rope from structural twist damage.
· Bolt Fastened Mechanism — High tensile bolts with nuts provide secure, adjustable clamping force on the steel rope.
· Hinged Two-Piece Body — Easy to install and remove from the rope without threading; the two halves hinge open for quick attachment.
· High Tensile Steel Construction — Body fabricated from high tensile steel for durability and long service life under heavy loads.
· Wide Capacity Range — Six models from 20KN to 100KN cover steel rope diameters from 7mm to 24mm.
Frequently Asked Questions (FAQ)
Q: What makes this clamp different from standard grippers?
A: Its anti-twist design prevents steel rope rotation during tensioning, a critical feature for OPGW and precision conductor work.
Q: How does the bolt mechanism work?
A: The two-piece hinged body closes around the rope and is secured with high tensile bolts and nuts, providing adjustable clamping force.
Q: What sizes are available?
A: Six models from SKGF-2 (20KN) to SKGF-10 (100KN), covering steel rope diameters from 7mm to 24mm.
Q: What is the typical application?
A: OPGW construction, transmission line stringing, and any operation requiring anti-rotation steel rope gripping.
Q: What is the weight of the largest model?
A: The SKGF-10 (100KN) weighs 20kg, while smaller models like SKGF-2 and SKGF-3 weigh only 5.6kg.
