Aluminum Alloy Insulated Metal Steel Cable Clamps Stringing Tools Conductor Gripper
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SKJL-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Aluminum Alloy Insulated Conductor Gripper | Item No.: | 13192-13214 |
|---|---|---|---|
| Rated Load: | 10-30KN | Applicabloe Conductor: | LGJ25-70~LGJ500-630 |
| Applicable Wire Diameter: | 10-14mm~32-37mm | Max.Open: | 15-39mm |
| Weight: | 1.4-5KG | Warranty: | 1 Year |
| Uses: | Product Is Clamping , Fixing And Adjusting The Sag Of Insulated Conductor. | Feature: | Product Is Made Of High Strength Aluminum Alloy With Light Weight, It Will Not Damage The Insulation Layer. |
| Highlight: | Aluminum Alloy steel cable clamps,Insulated steel cable clamps,metal cable clamps ISO9001 |
||
Product Description

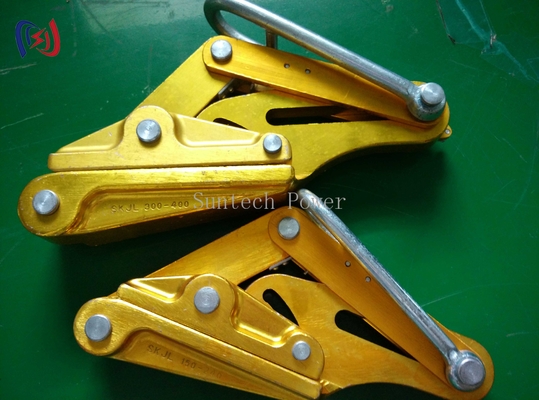

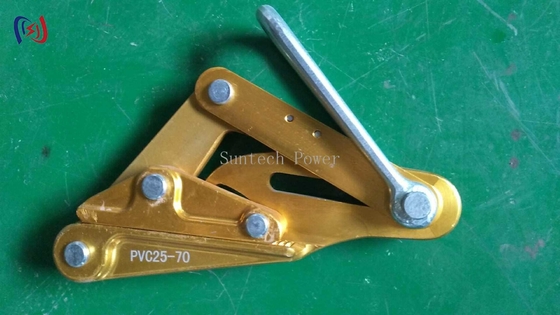

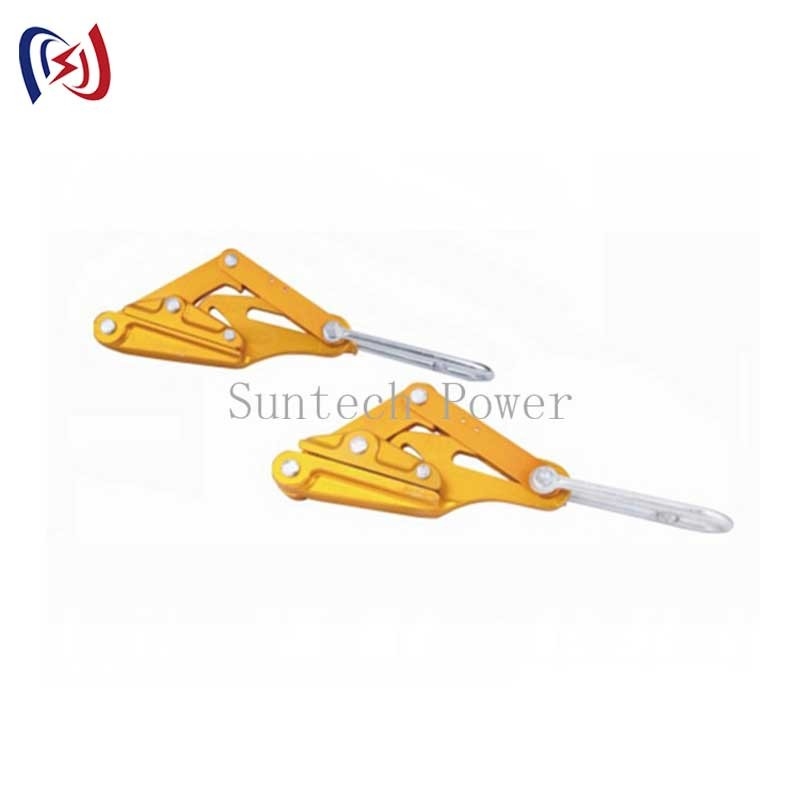

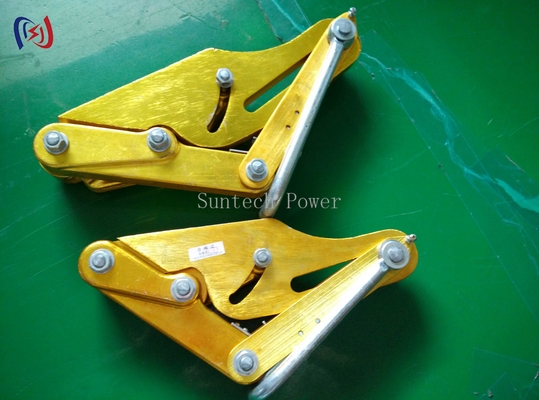

Aluminum Alloy Insulated Conductor Gripper Come Along Clamp Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc
Application
Aluminum alloy conductor gripper,cable wire grips for different conductors is applied to adjusting sag in erecting wire and sagging.
The product is forged of high strength aluminum alloy, compact and light weight.
Speicifications
| Item number | Model | Rated Load(KN) | Applicable Conductor(LG) | Applicable Wire Diameter(MM) | Max Open(MM) | Weight(KG) |
| 13192 | SKJL-1 | 10 | 25-70 | Φ10-Φ14 | 15 | 1.4 |
| 13202 | SKJL-1.5 | 15 | 95-120 | Φ14-Φ20 | 22 | 3 |
| 13212 | SKJL-2 | 20 | 150-240 | Φ20-Φ25 | 27 | 4 |
| 13213 | SKJL-2.5 | 25 | 300-400 | Φ25-Φ32 | 34 | 4 |
| 13214 | SKJLA-3 | 30 | 500-630 | Φ32-Φ37 | 39 | 4 |
