Fixed Joint U Shape Pilot Wire Connectors Cable Pulling Tools 10KN - 250KN
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SLU-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Fixed Joints | Item No.: | 17111-17118 |
|---|---|---|---|
| Rated Load: | 10-250KN | Weight: | 0.2-3KG |
| Warranty: | 1 Year | Uses: | Apply To Connecting Pilot Rope Or Pulling Rope And To Pass Over The Puller. |
| Feature: | Made Of High Quality Steel With High Strength And Small Size.It Can Pass Over Stringing Block | Explain: | Number "d" Means The Pin Diameter. |
| Highlight: | Fixed Joint Pilot Wire Connectors,U Shape Pilot Wire Connectors,Cable Pulling Tools 10KN |
||
Product Description
Fixed Joint U Shape Pilot Wire Connectors Cable Pulling Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
It is applicable to connecting anti-twisting steel rope for traction operation. it has small size, light weight ,it can pass through the corners, pulley, tension machine, traction machin and other equipment.
*Suitable for the connection of towing operation with no twisting wire rope.
*Small volume,light weight,can smoothly through the corners,pulley,tension machine,traction machine.
*Application:Anti- bends Connector is suitable to traction of connecting anti-twisting wire rope.
*Features:High strength, light weight, and good looking.
It can smoothly go through the machine traction pulley and the tension machine.

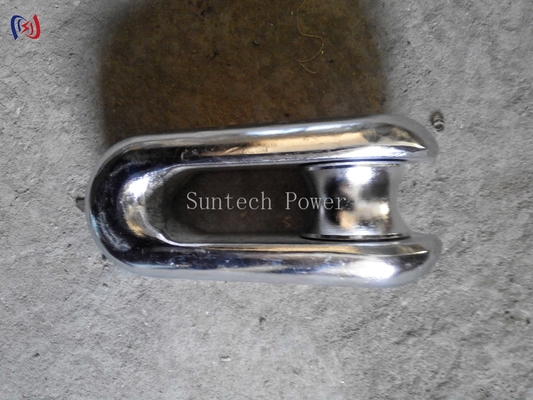

SLU-5 50KN Fixed Joints U Shape Pilot Wire Connectors For Cable Pulling
Fixed Joints U Shape Pilot Wire Connector Data Sheet
| Model | Main size(mm) | Rated load(KN) | Weight(kg) | |||||
| A | B | C | d | D | E | |||
| SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
| SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
| SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
| SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
| SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
| SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
| SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
| SLU-25 | 80 | 178 | 44 | 30 | 35 | 72 | 250 | 3.0 |
| SLU-28 | 80 | 178 | 44 | 30 | 35 | 72 | 280 | 3.0 |
| SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
