Dynema Pilot Wire 13G/M - 247.3G/M High Strength Braided Nylon Rope
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | Dynema |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 M |
|---|---|
| Price: | Negotiable |

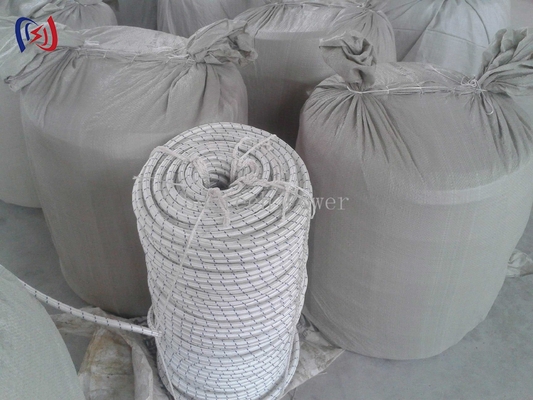

| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000 M/Month |
|
Detail Information |
|||
| Name: | Dynema Rope | Diameter: | 4-18mm |
|---|---|---|---|
| Linear Density: | 13-247.3G/M | Sheath Diameter: | 5.5-21mm |
| Break Force: | 16.6-296KN | Warranty: | 1 Year |
| Highlight: | Dynema Pilot Wire,Pilot Wire 13G/M,247.3G/M braided nylon rope |
||
Product Description

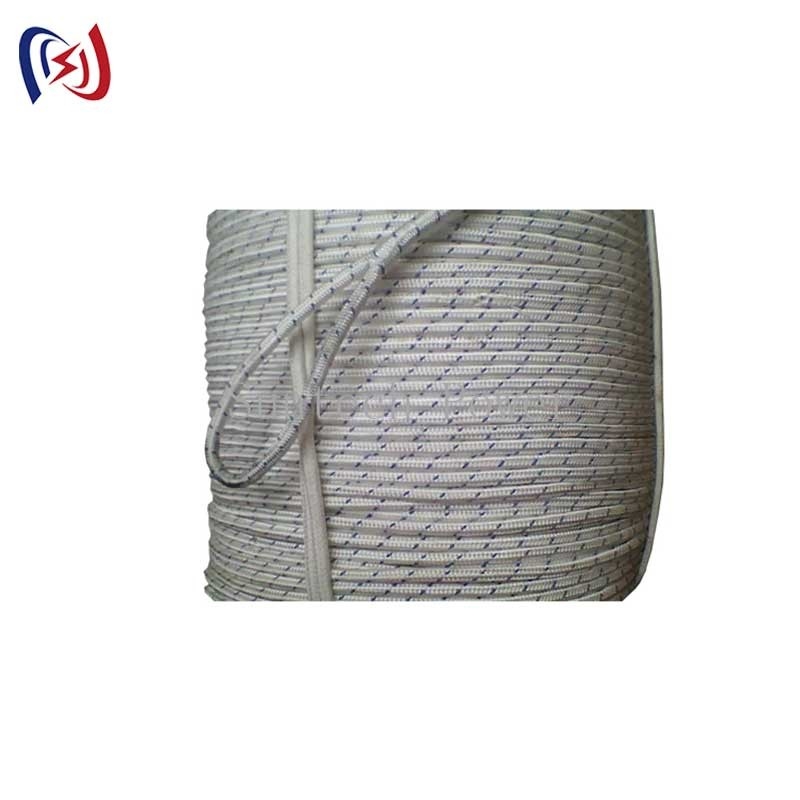

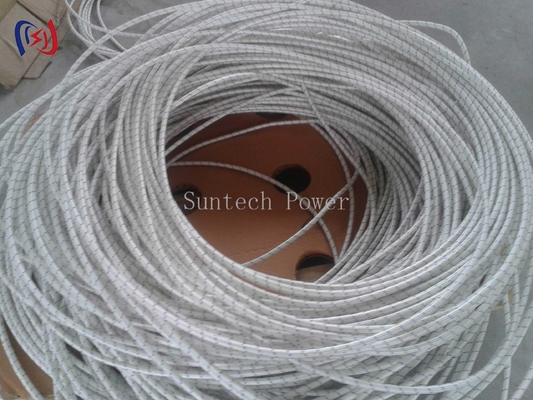

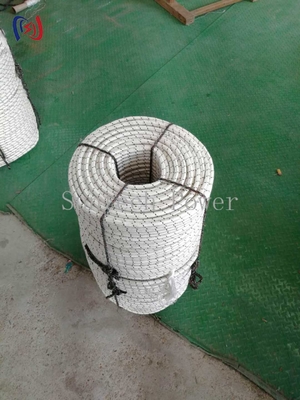

Dynema Rope High Strength Nylon Rope Withstand Voltage Insulation

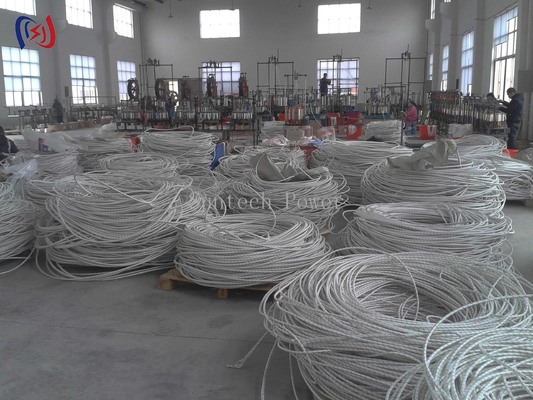

About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Explain:Material is Dinima fiber,is the lightest,the highest strength of high performance fiber.
Light weight,high strength(same diameter,same strength,less than 1/7 of steel wire rope),make the operation more convention and fast;
Voltage insulation,is the most ideal product of live operation and crossing.
| Diameter(MM) | Linear density(G/M) | Sheath diameter(MM) | Linear density(G/M) | Break force(KN) |
| 4 | 9.31 | 5.5 | 13 | 16.6 |
| 6 | 20 | 8 | 28.2 | 31.9 |
| 8 | 35 | 10 | 48.4 | 58.8 |
| 10 | 56 | 12 | 77 | 92.5 |
| 12 | 84 | 14 | 113.4 | 137 |
| 14 | 106 | 16 | 150 | 180 |
| 16 | 132 | 18 | 177 | 211 |
| 18 | 186 | 21 | 247.3 | 296 |
